Installing Control Unit For Roof Assembly (Panoramic Roof)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

After installation of the control unit, the limit stops for the motors must be re-initialised.

Position control unit in installation position -Arrows A- and secure with the fastening screws -1- . Tightening torque: 3 ftlb.

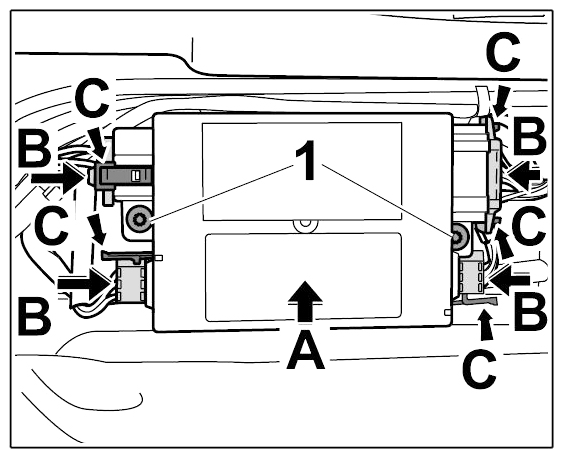

Fig 1: Installing And Securing Control Unit And Inserting Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push in the connectors -arrows B- until the locking tabs -C- are felt to engage.

Fig 2: Installing And Securing Control Unit And Inserting Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Initialise limit stop of both motors.
