Removing Inner Seal For Roof Assembly

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

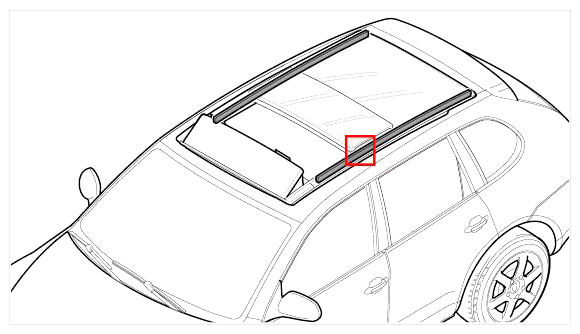

Fig 1: Identifying Installation Position Of Inner Seal For Roof Assembly

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Open roof assembly completely.
Pull off inner seal.
1. 2.1. Pull off inner seal -1- starting from the front -arrows- .
  Use a sharp knife to help detach the seal.

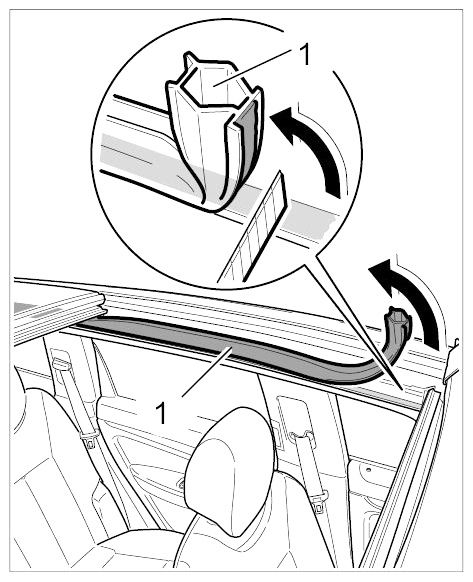

  Fig 2: Pulling Off Inner Seal
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clean bonding surfaces with isopropanol.
Move roof panel 3 into ventilation position to clean the bonding surfaces in the rear area.

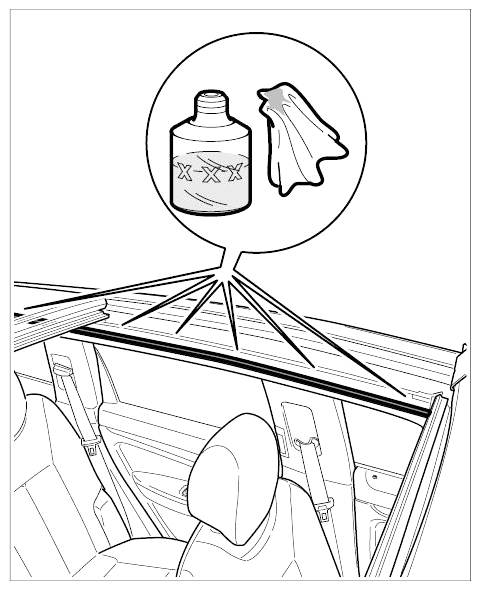

Fig 3: Cleaning Bonding Surfaces
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
