Installing Seal For Roof Assembly: Notes

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach seal.
    1. 1.1. Attach seal to the front edge of the assembly.

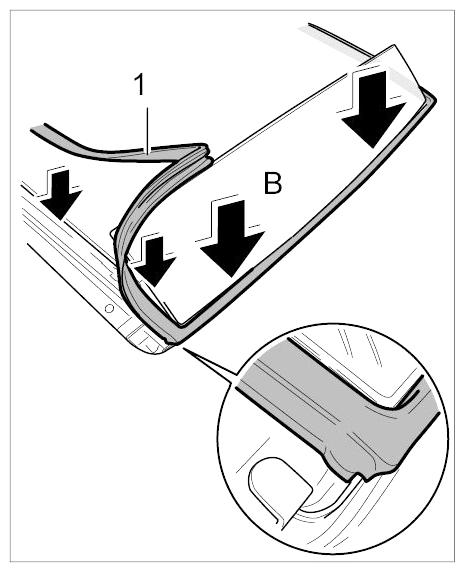

      Fig 1: Attaching Seal
      G09411589Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 1.2. Attach seal to the sides of the roof assembly and press it down firmly.

      The seal must engage in the roof assembly and must be flush at the rear edge.

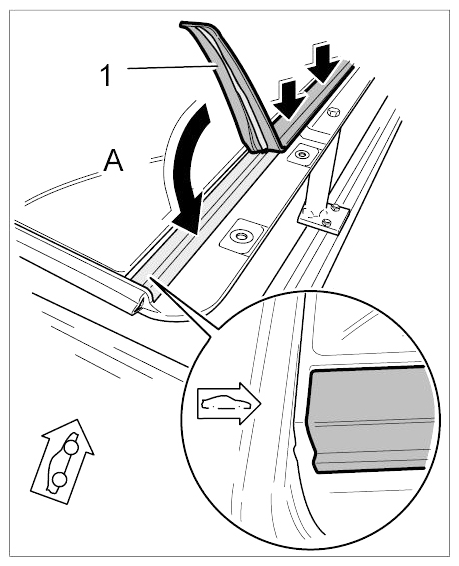

      Fig 2: Fitting Seal
      G09411590Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Stick on seal.
    1. 2.1. Carefully raise the front corners of the seal -arrow C-  and pull out the protective film -2-  on the adhesive tape backwards under the seal -arrow D-  .

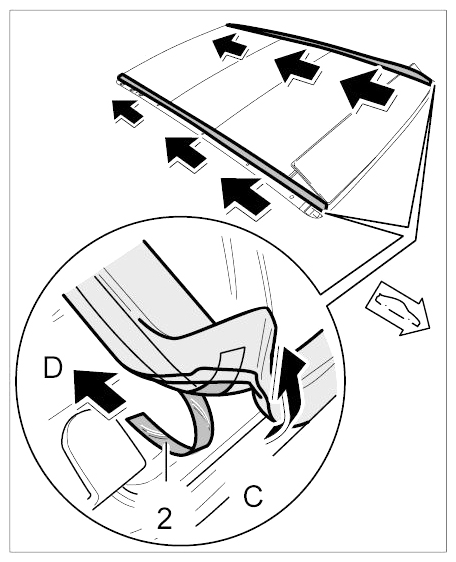

      Fig 3: Sticking On Seal
      G09411591Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 2.2. Press seal down firmly on the roof assembly.
  3. Close roof panel 1.
