Removing Rear Wind Deflector

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Swing air deflector -7-  together with the spring -8-  outwards in a downward direction.

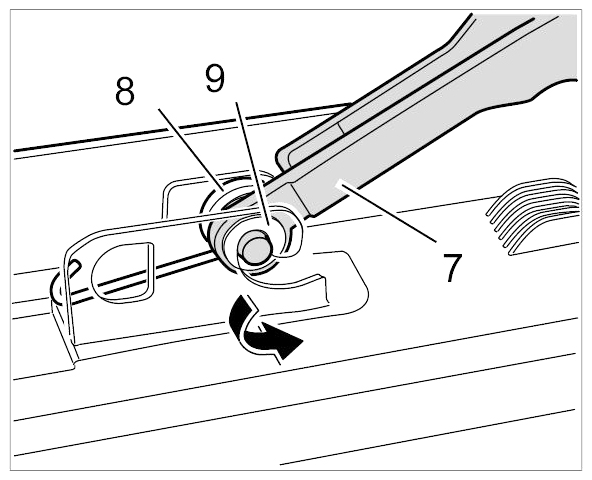

    Fig 1: Swinging Air Deflector
    G09411531Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove plastic washer -9-  .
  3. Twist spring -8- (-Arrow A-)  and remove from bolt of air deflector -7-  .

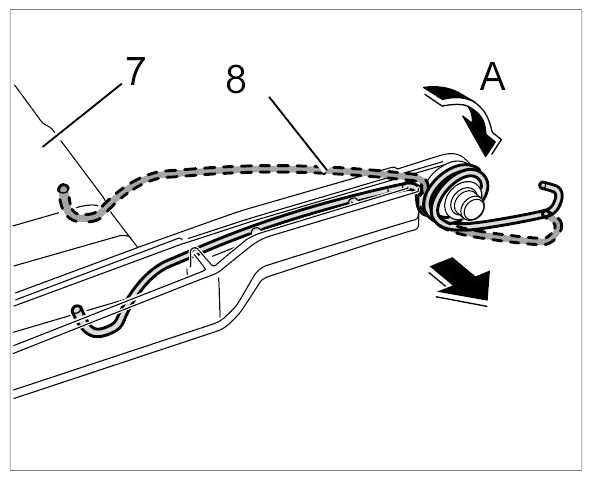

    Fig 2: Removing Bolt Of Air Deflector
    G09411532Courtesy of PORSCHE CARS NORTH AMERICA, INC.
