Removing Panel 1 Of Panoramic Roof

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

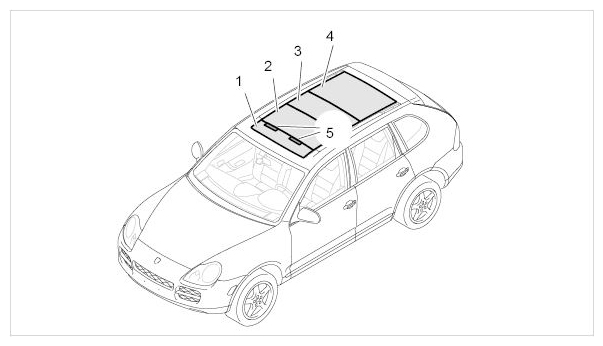

Fig 1: Identifying Panorama Roof Panels And Air Deflector

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Panel 1
Panel 2
Panel 3
Panel 4
Air deflector

Fully open panels 1 and 2 of panoramic roof
Unclip cover -16- (-Arrow A-) and pull out to the rear (-Arrow B-).

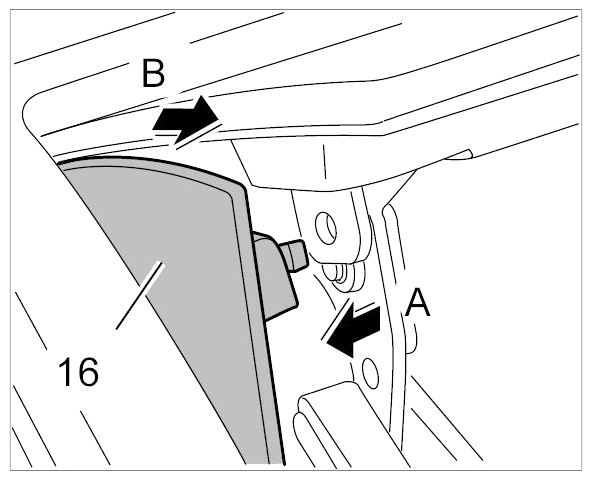

Fig 2: Uncliping Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -7- and lay air deflector aside -5- .

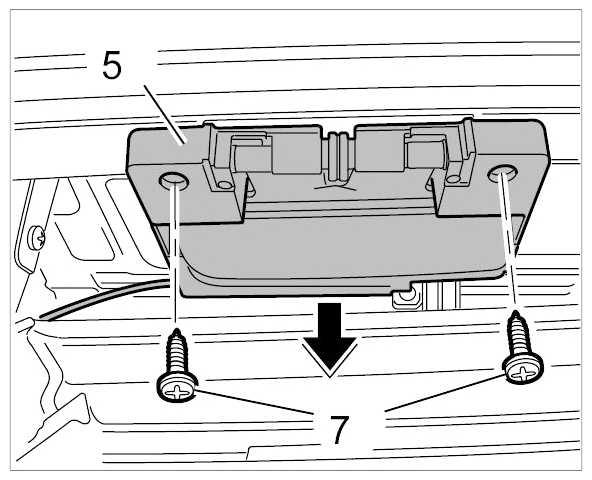

Fig 3: Removing Air Deflector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screw -8- at end stop -9- .

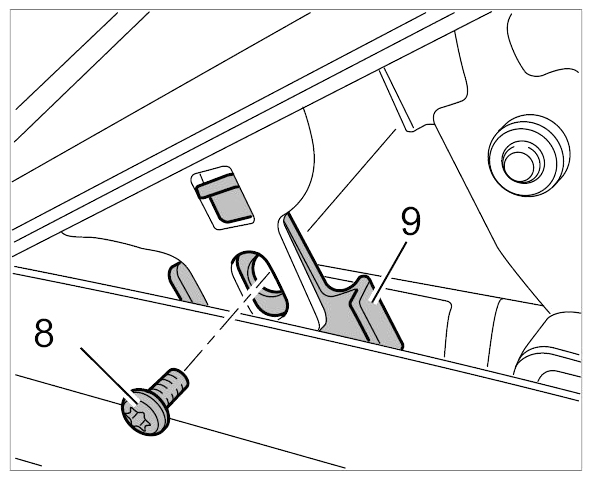

Fig 4: Identifying Fastening Screw At End Stop
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screw -10- of front mount -11- .

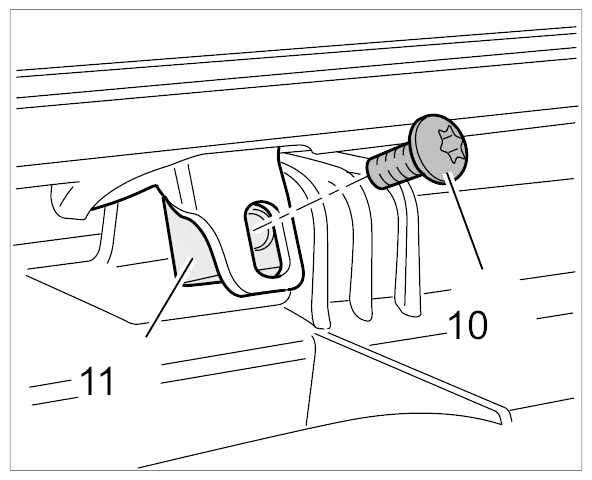

Fig 5: Identifying Fastening Screw Of Front Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press guide -12- gently outwards (-Arrow A-) , disengage stop -13- together with guide pin from the guide -12- and remove panel -1- (-Arrow B-) .

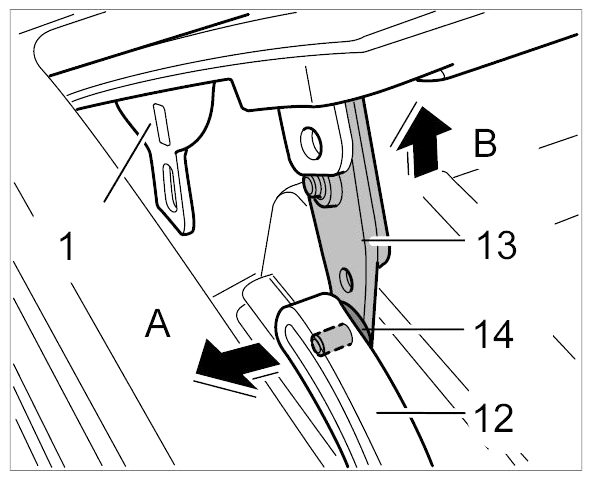

Fig 6: Removing Guide Pin From Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove plastic washer -14- from guide pin.
