Installing Panel 2 Of Panoramic Roof

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

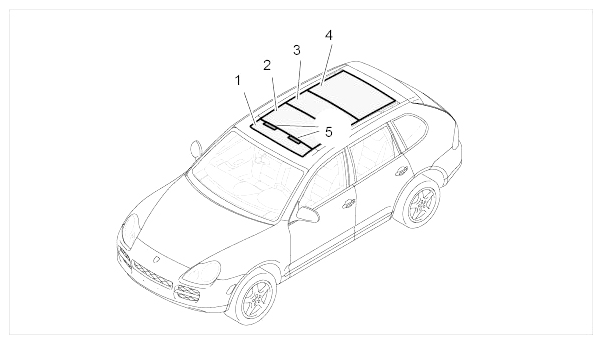

Fig 1: Identifying Air Deflector And Panoramic Roof Panels

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1 - Panel 1

2 - Panel 2

3 - Panel 3

4 - Panel 4

5 - Air deflector

Insert panel -2- of panoramic roof.

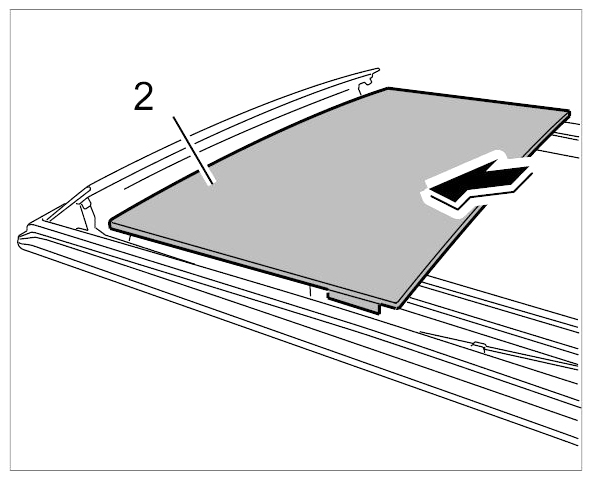

Fig 2: Inserting Panel 2 Of Panoramic Roof
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screws -6- and tighten so that panel 2 of panoramic roof can still be moved easily.

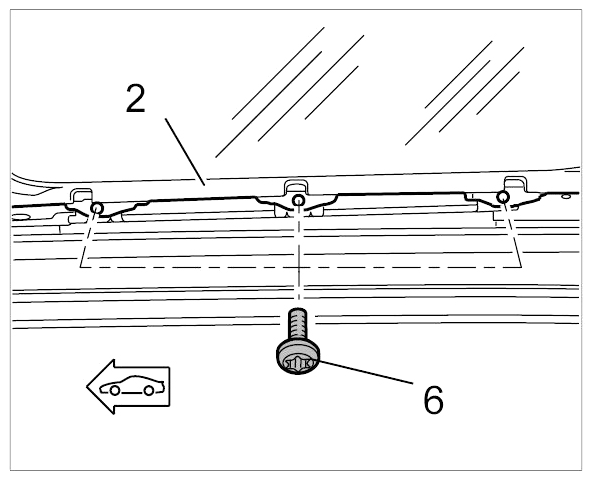

Fig 3: Identifying Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fully close panels 2 and 3 of panoramic roof and check adjustment of panel 2, correcting if necessary. → Adjusting Sunroof Panel
