Installing Panel 1 Of Panoramic Roof

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

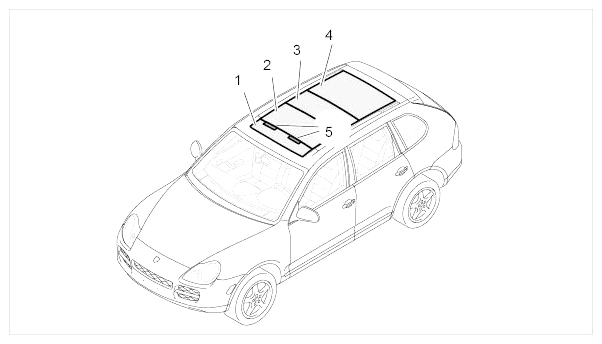

Fig 1: Identifying Air Deflector And Panoramic Roof Panels

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1 - Panel 1

2 - Panel 2

3 - Panel 3

4 - Panel 4

5 - Air deflector

Push plastic washer -14- onto guide pin of stop -13- .

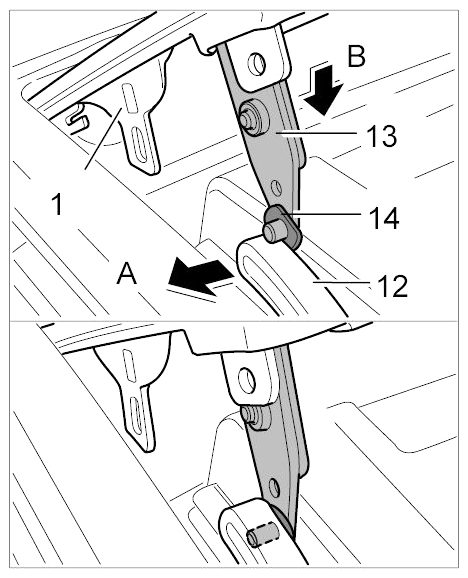

Fig 2: Pushing Plastic Washer 14 Onto Guide Pin Of Stop
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert panel -1- .
Press guide -12- gently outwards (-Arrow A-) and engage stop -13- together with guide pin in the guide -12- (-Arrow B-).
Counter front bearing -11- , screw in fastening screw -10- and tighten so that panel 1 of panoramic roof can still be moved easily.

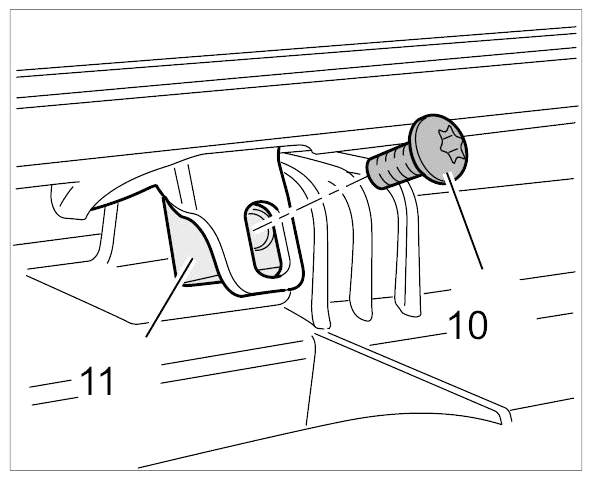

Fig 3: Identifying Counter Front Bearing And Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position end stop -9- , counter, screw in fastening screw -8- and tighten so that panel 1 of panoramic roof can still be moved easily.

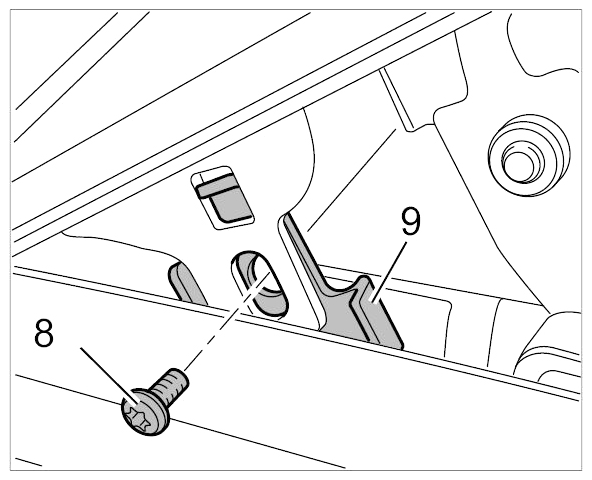

Fig 4: Identifying End Stop And Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position air deflector -5- , screw in fastening screws -7- and tighten to the specified tightening torque. Tightening torque: 2 ftlb.+/-0.5 ftlb.

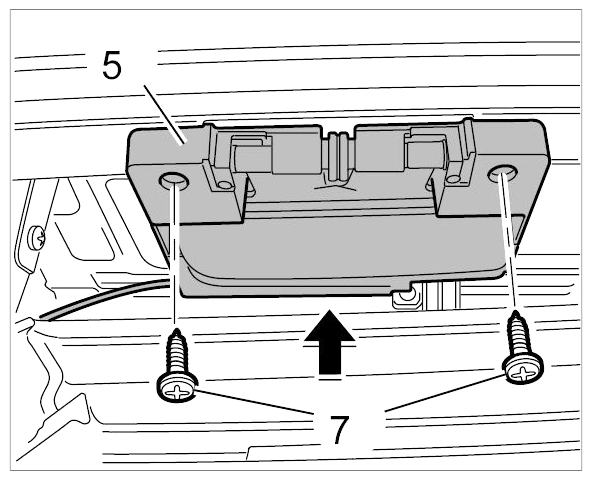

Fig 5: Positioning Air Deflector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fully close panels 1 and 2 of panoramic roof and check adjustment of panel 1, correcting if necessary. → Adjusting Sunroof Panel
Insert cover guide -16- into mounting -15- and slide it in (-Arrow A-).

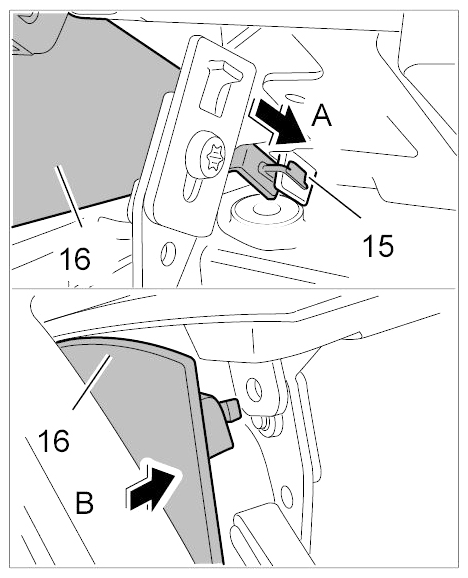

Fig 6: Inserting Cover Guide 16 Into Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in cover -16- (-Arrow B-) .
Fully open panels 1 and 2 of panoramic roof.
