Adjusting Panel 2 Of Panorama Roof

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

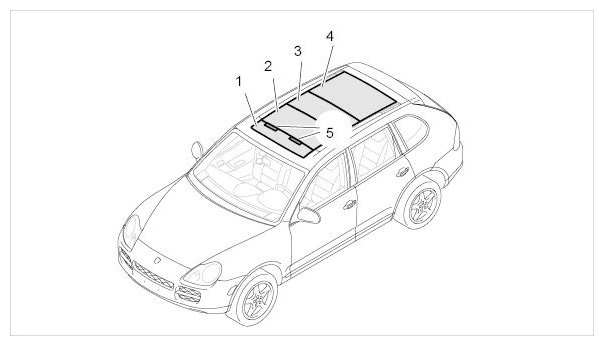

Fig 1: Identifying Air Deflector And Panoramic Roof Panels

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1 - Panel 1

2 - Panel 2

3 - Panel 3

4 - Panel 4

5 - Air deflector

Adjust height -Y- and gap -Z- on panorama roof panel -2- at the rear. → Adjustment value: 1 mm+/-0.5 mm → Adjustment value: approx. 7.1 mm

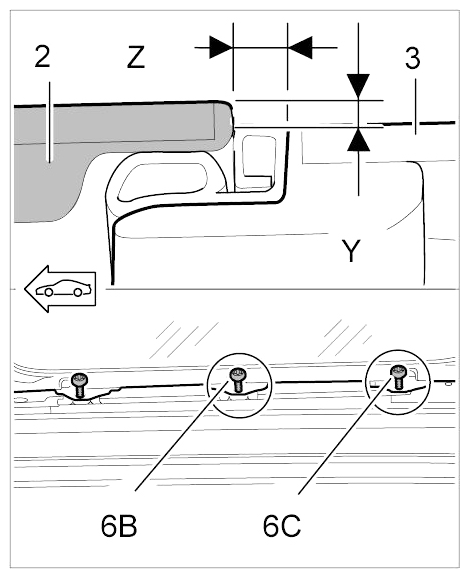

Fig 2: Identifying Height Y And Gap Z On Panorama Roof Panel 2 At Rear Adjustment Dimensions
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screw -6C - to the specified tightening torque. → Tightening torque: 4 Nm (3 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
Tighten fastening screw -6B - to the specified tightening torque. → Tightening torque: 4 Nm (3 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
Adjust height -X- and gap -Z- on panorama roof panel -2- at the front. → Adjustment value: 1 mm+/-0.5 mm → Adjustment value: approx. 7.1 mm

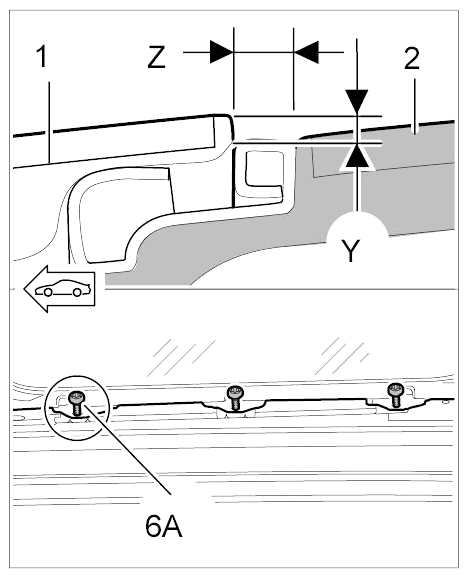

Fig 3: Identifying Height X And Gap Z On Panorama Roof Panel 2 At Front Adjustment Dimensions
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screw -6A- to the specified tightening torque. → Tightening torque: 4 Nm (3 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
