Adjusting Panel 1 Of Panorama Roof

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

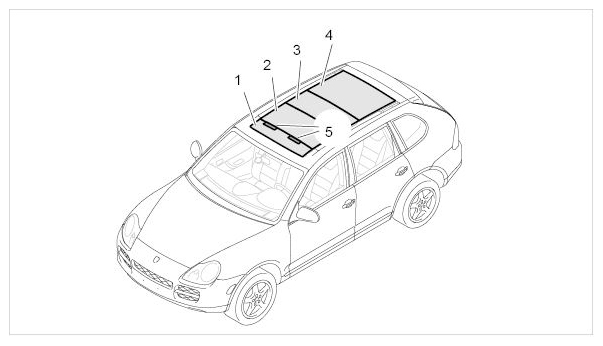

Fig 1: Identifying Air Deflector And Panorama Roof Panels

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1 - Panel 1

2 - Panel 2

3 - Panel 3

4 - Panel 4

5 - Air deflector

Adjust height -X- on panorama roof panel -1- at the front. → Adjustment value: 0.5 mm+/-0.5 mm

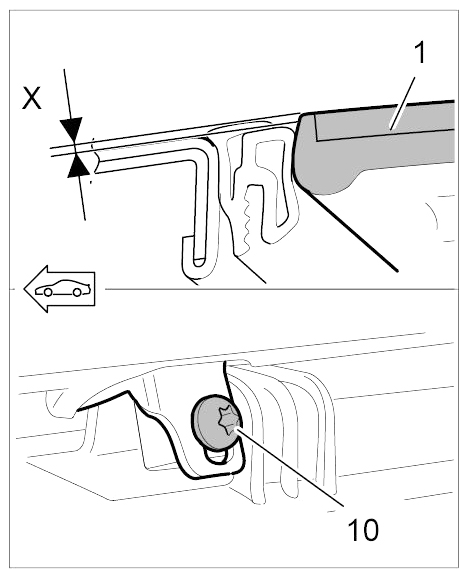

Fig 2: Identifying Height X On Panorama Roof Panel 1 At Front Adjustment Dimensions
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screws -10- to the specified tightening torque. → Tightening torque: 4 Nm (3 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
Adjust height -Y- and gap -Z- on panorama roof panel -1- at the rear. → Adjustment value: 1 mm+/-0.5 mm → Adjustment value: approx. 7.1 mm

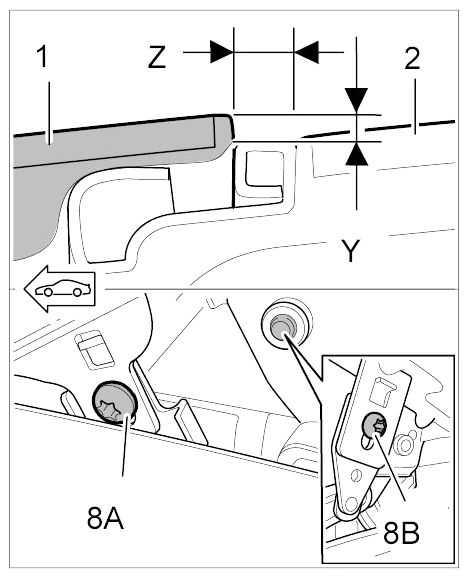

Fig 3: Identifying Height Y And Gap Z On Panorama Roof Panel 1 At Rear Adjustment Dimensions
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screw -8A- to the specified tightening torque. → Tightening torque: 4 Nm (3 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
If necessary, loosen fastening screw -8B - as well, adjust height -Y- and tighten fastening screw -8B - to the specified tightening torque. → Tightening torque: 4 Nm (3 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
