Removing Spring For Lifting Link

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

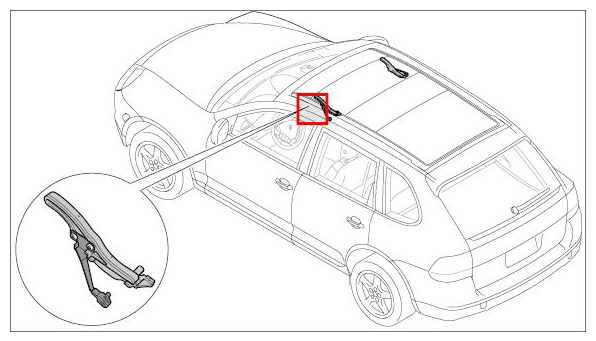

Fig 1: Identifying Installation Position Of Leaf Spring For Lifting Link

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Open roof panels 2+3 of the Panoramic roof fully - open using the emergency operation mechanism if necessary.
Move front seat all the way forward.

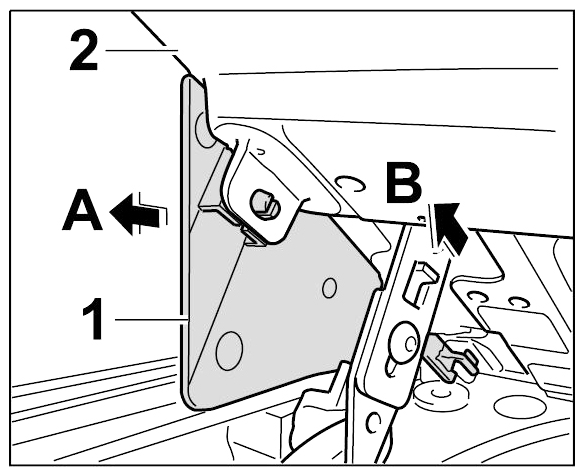

Unclip cover -1- (-arrow A-) and disengage it from the roof panel -2- (-arrow B-) .

Fig 2: Removing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

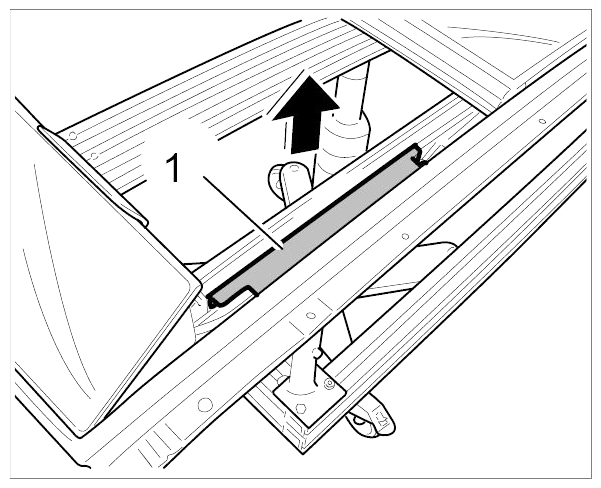

Unclip cover -1- by pulling it upwards -arrow- .

Fig 3: Unclipping Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

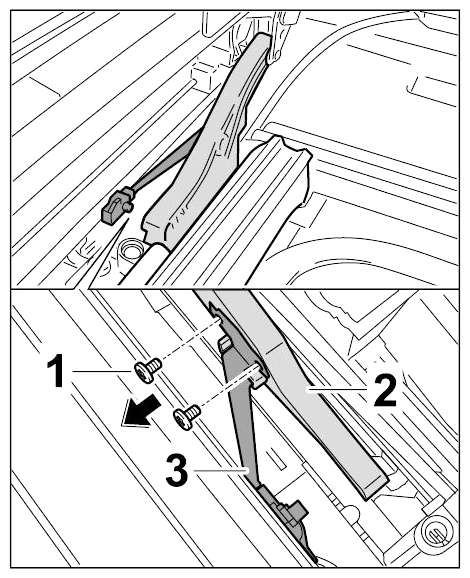

Unscrew fastening screws -1- and remove leaf spring -3- from the lifting link -2- (-arrow-) .

Fig 4: Removing Leaf Spring For Lifting Link
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
