Installing Leaf Spring For Lifting Link

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

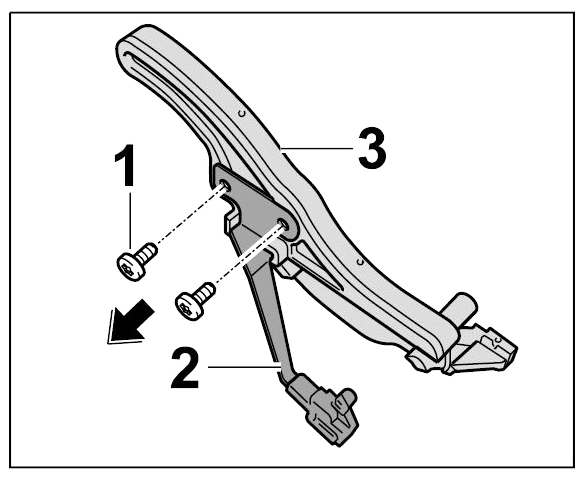

Convert leaf spring.

Fig 1: Converting Leaf Spring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Unscrew fastening screws -1- .
2. 1.2. Remove leaf spring -2- from the lifting link -3- (new part) -arrow- .

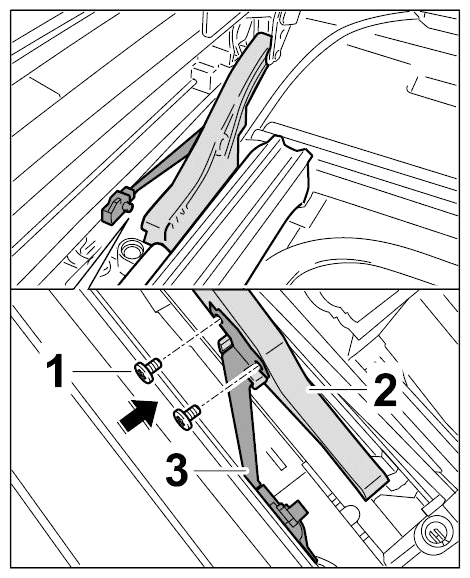

Position leaf spring -3- on the lifting link -2- (-arrow-) and secure with the fastening screws -1- .

Fig 2: Installing Leaf Spring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

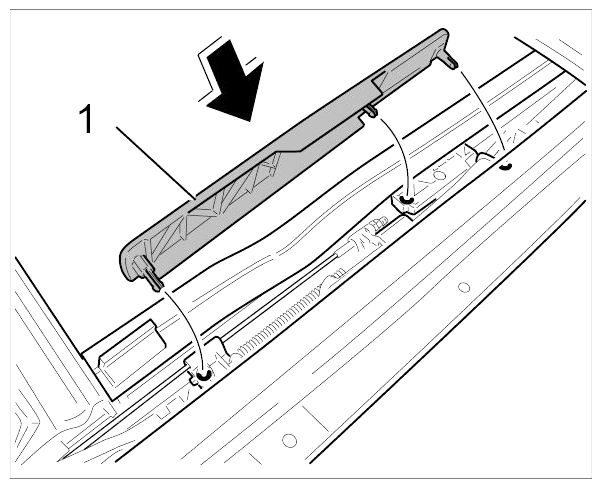

Clip in cover -1- (-arrow-) .

Fig 3: Locating Clipping In Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

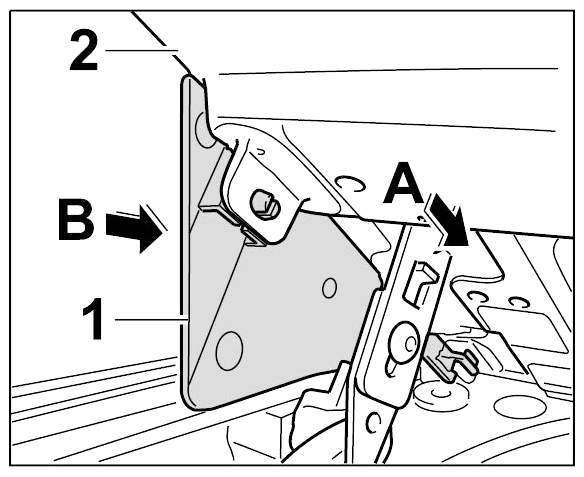

Slide cover -1- into the roof panel -2- (-arrow A-) and clip it in -arrow B- .

Fig 4: Installing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check the function of roof panels 2 + 3 of the Panoramic roof by completely opening and closing or raising it.
Move front seats back to their original position.
