Installing Air Deflector

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

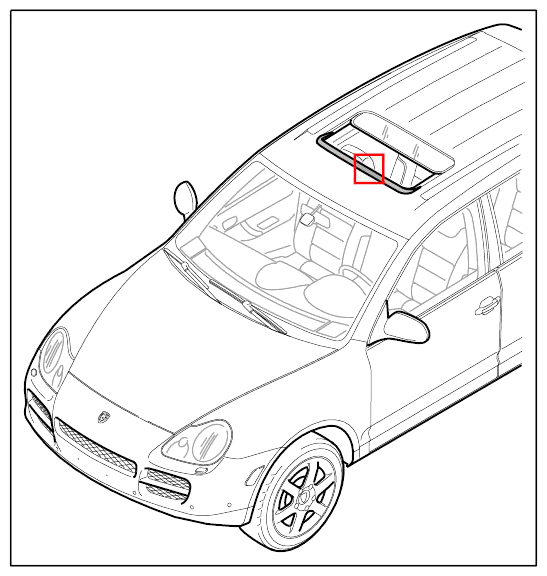

Fig 1: Identifying Air Deflector

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install spring.

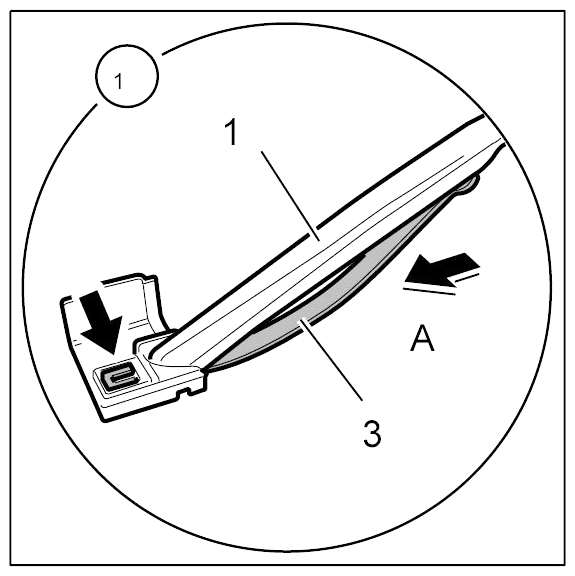

1. 1.1. Push spring -3- into air deflector -1- until the spring -3- engages in the locking tab -(Arrow)- -(Arrow A)- .

  Fig 2: Engaging Locking Tab And Springs
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 3: Installing Air Deflector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install air deflector.

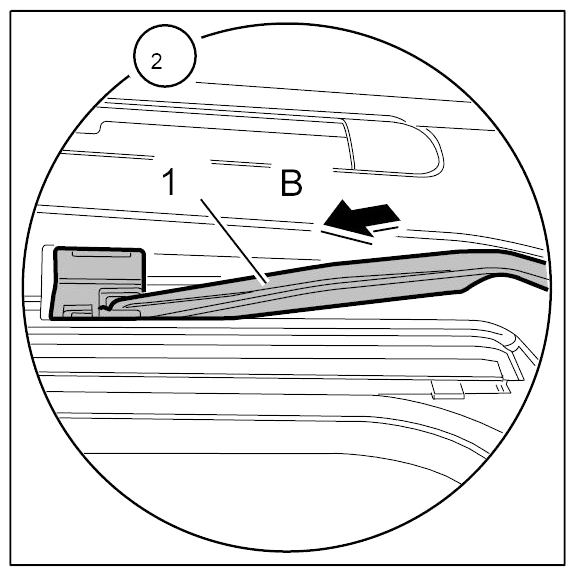

1. 2.1. Insert air deflector -1- (-Arrow B-).

  Fig 4: Inserting Air Deflector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

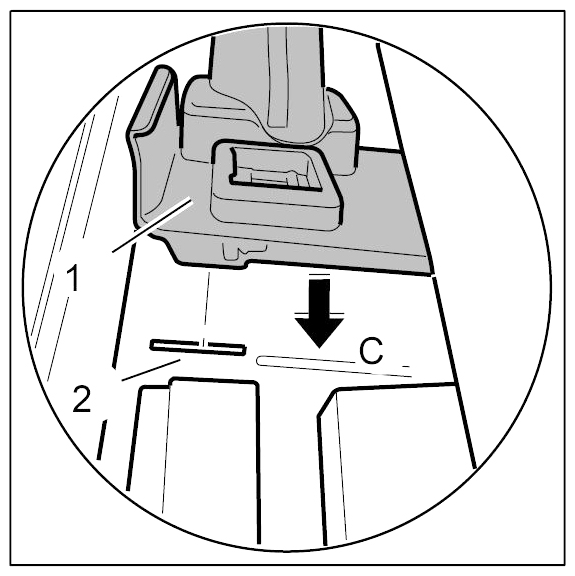

2. 2.2. Press air deflector -1- into the cut-out of the sliding roof frame -2- (-Arrow C-).

  Fig 5: Pressing Air Deflector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

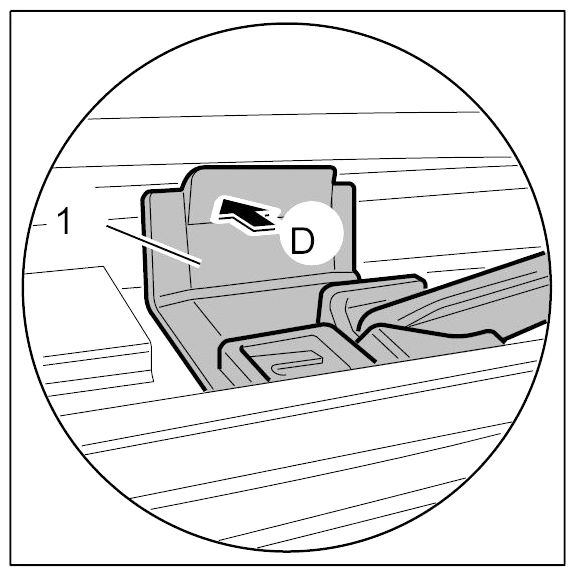

3. 2.3. Clip in the air deflector -1- (-Arrow D-).

  Fig 6: Sliding Air Deflector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close sliding roof.
1. 3.1. Close the sliding roof fully.

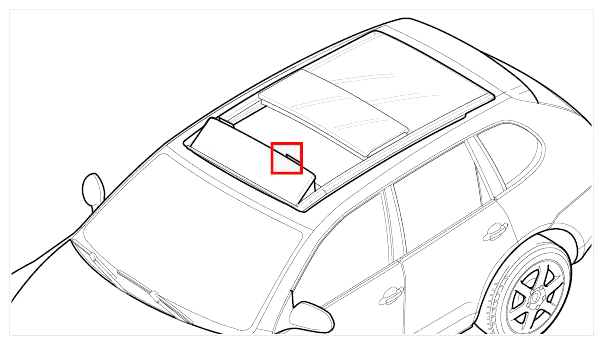

Fig 1: Identifying Installation Position Of Air Deflector

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install air deflector

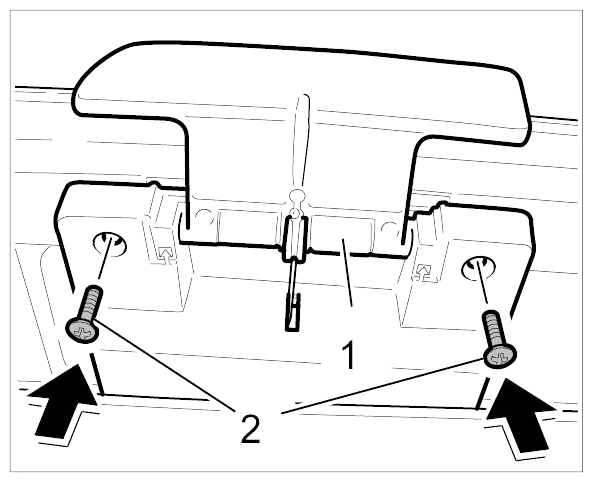

1. 1.1. Position air deflector -1- .
2. 1.2. Screw in fastening screws -2- and tighten to the specified tightening torque.
  → Tightening torque: 3 Nm (2 ftlb.)+0.5 Nm (+0.5 ftlb.)

  Fig 2: Installing Air Deflector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Route actuating cable.

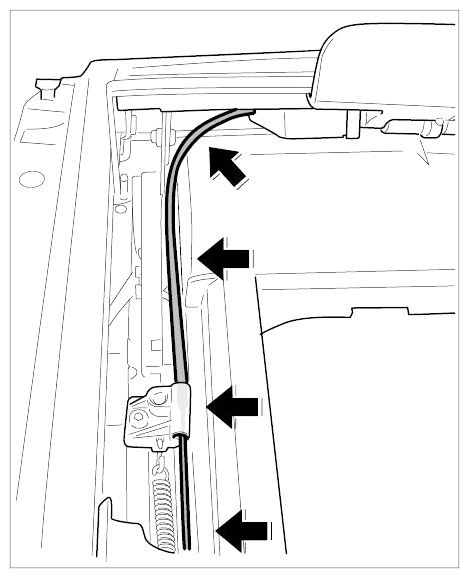

1. 2.1. Insert actuating cable into the groove in the guide rail -arrows- .

  Fig 3: Routing Actuating Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

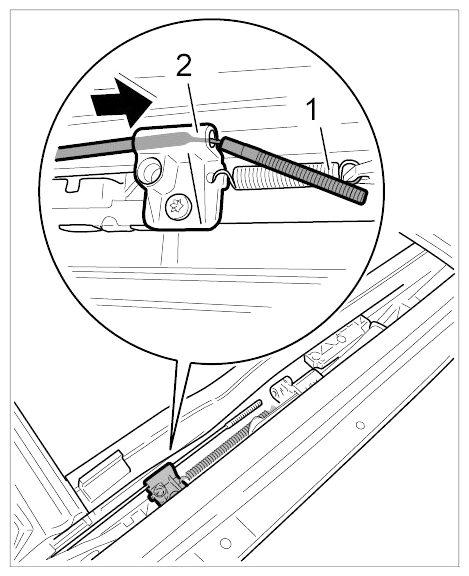

Slide actuating cable -1- through the holder -2- (-arrow- ).

Fig 4: Sliding Actuating Cable Through Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure actuating cable.

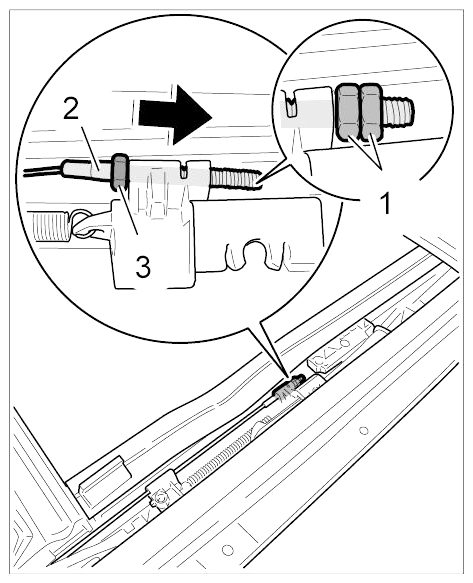

1. 4.1. Screw adjusting nut -3- onto the actuating cable -2- .
2. 4.2. Slide in actuating cable -2- on the mounting saddle -arrow- .
  Information

  Only fit nuts loosely because the position of the actuating cable will have to be adjusted after fitting the locking lever.
3. 4.3. Screw on lock nuts -1- on the actuating cable -2- .

  Fig 5: Securing Actuating Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

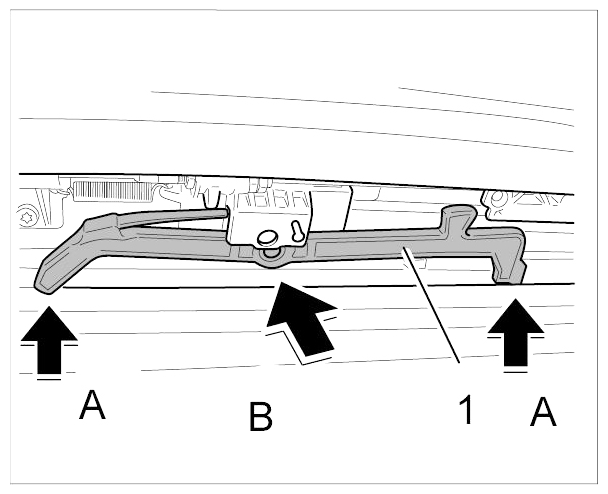

Insert locking lever -1- from above -arrows A- and guide it into the bearing location -arrow B- .

Fig 6: Inserting Locking Lever
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit bearing pin.

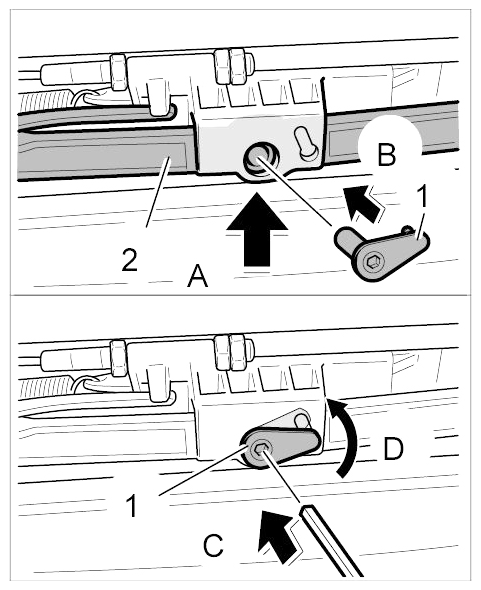

1. 6.1. Press locking lever -2- against the spring tensioning into the bearing location -arrow A- .
2. 6.2. Insert bearing pin -1- into the bearing location -arrow B- .
3. 6.3. Insert a hexagon wrench into the bearing pin -1- (-arrow C-) and lock the bearing pin -1- by turning it -arrow D- .

  Fig 7: Fitting Bearing Pin
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hook in locking lever.
Information
- Actuating the locking lever extends the air deflector.
- Always engage locking lever at the end position following assembly work. This ensures that the air deflector will extend correctly when the lid is opened.

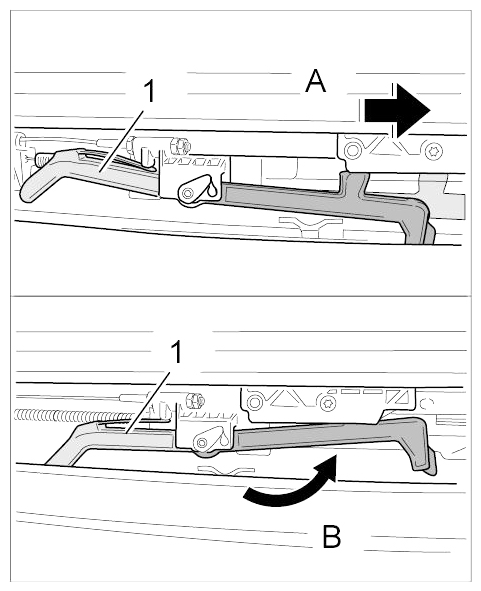

1. 7.1. Guide locking lever -1- backwards -arrow A- and hook it in at the end position -arrow B- .

  Fig 8: Hooking In Locking Lever
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjust actuating cable.
Information
- The deflection roller is visible from outside through lid 1. Light up the installation area with a lamp if necessary.

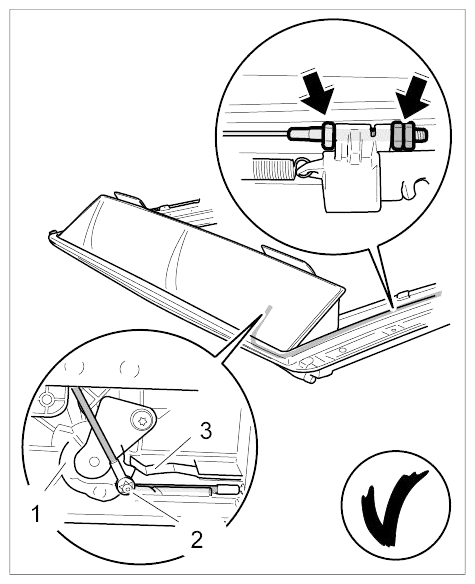

1. 8.1. With the air deflector extended, adjust the nuts -arrows- on the actuating cable so that the joint on the air deflector flap -2- is above the dead centre position of the deflection roller -1- . The spring -3- must be actuated while doing this.

  Fig 9: Locating Actuating Cable, Adjustment OK
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Perform a function test.
1. 9.1. Open and close the panorama roof several times and check that the air deflector extends and retracts correctly.
Tighten the lock nuts.
1. 10.1. Brace the lock nuts against each other.

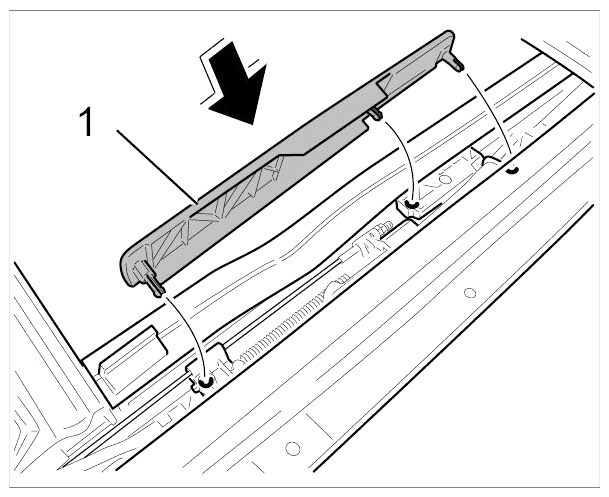

Clip in cover -1- (-arrow-) .

Fig 10: Clipping In Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
