Removing Frame For Sunroof

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Sliding-roof frame removed/fitted incorrectly

Risk of damage to seats

→ Fold rear seat assembly over and tilt the front-seat backrests back.

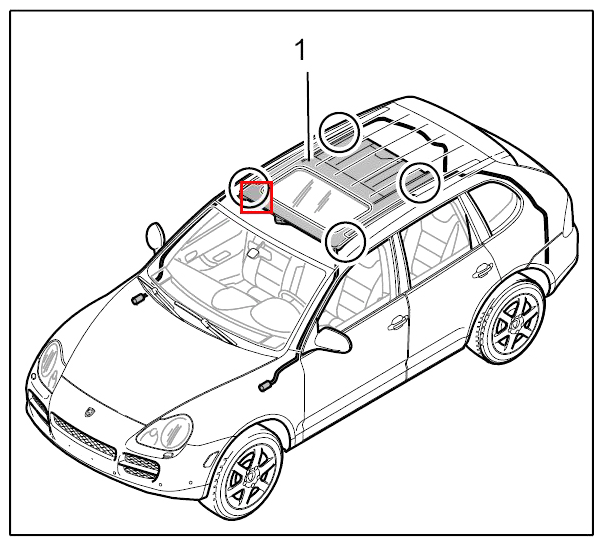

Fig 1: Identifying Sliding-Roof Panel And Frame

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

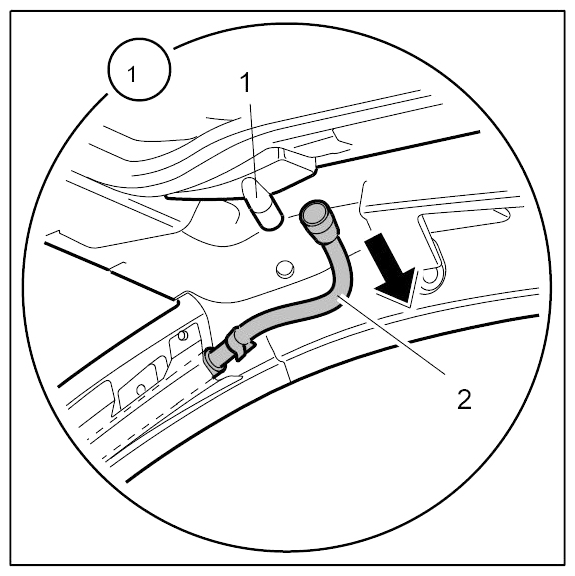

Pull off water drain hoses at the front -2- .

Fig 2: Removing Water Drain Hoses At Front - 2
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

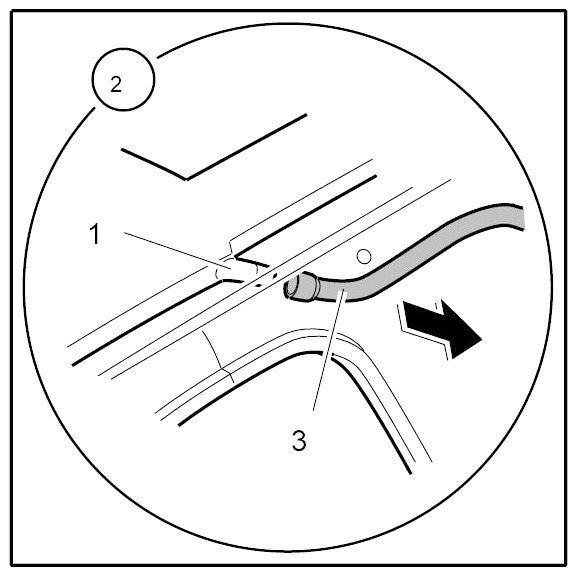

Pull off water drain hoses at the rear -3- .

Fig 3: Removing Water Drain Hoses At Rear - 3
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

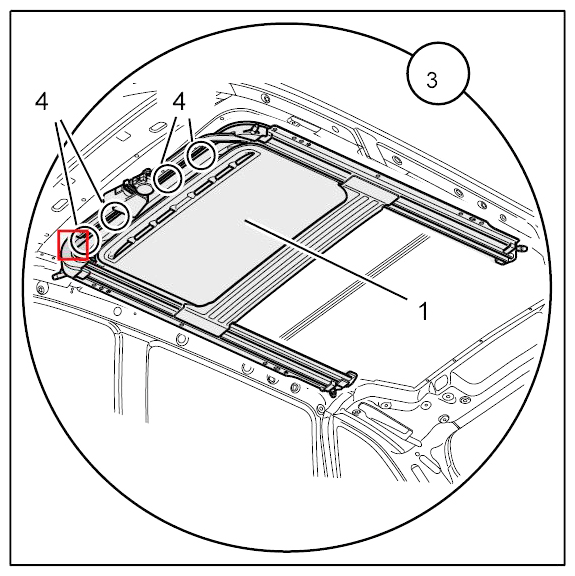

Fig 4: Identifying Sliding-Roof Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

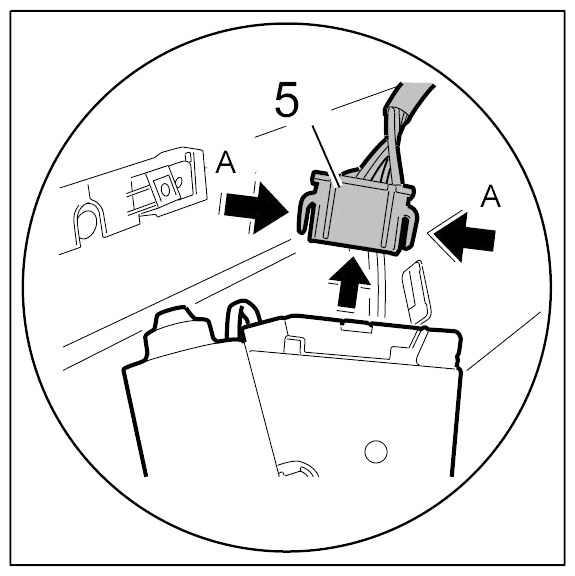

Unlock electrical plug connection -5- on drive for sliding roof -arrows A- and pull off.

Fig 5: Unlocking Electrical Plug Connection 5 On Drive For Sliding Roof
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 6: Identifying Sunroof Frame And Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

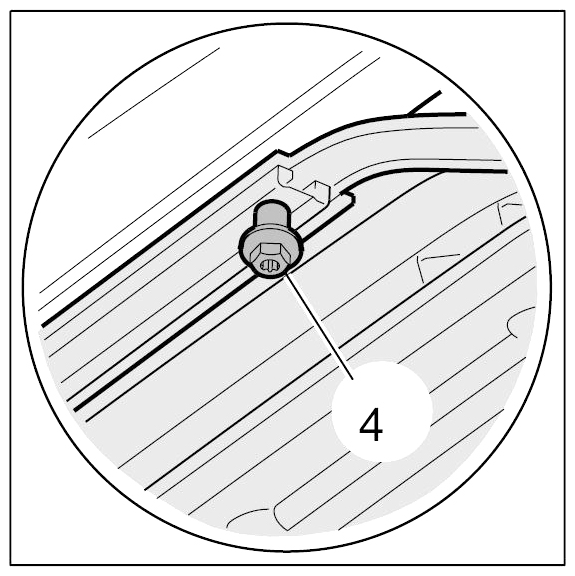

Unscrew the front fastening screws.

Fig 7: Identifying Front Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

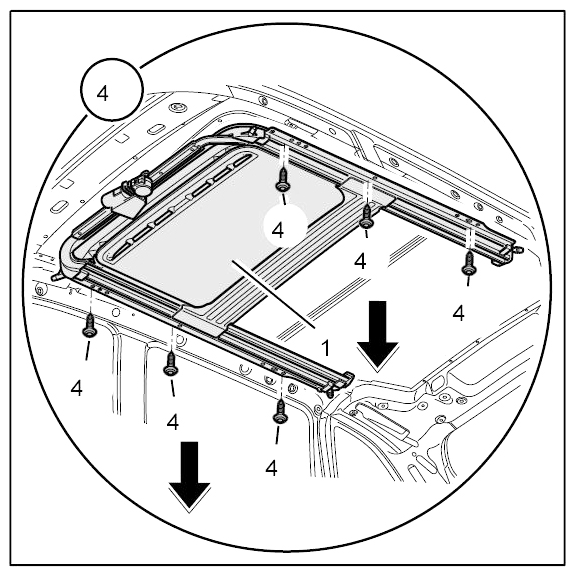

Unscrew fastening screws -4- at sides of sunroof frame -1- .

Fig 8: Removing Sunroof Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the sunroof frame with the aid of an assistant and pull it out of the passenger compartment through the rear lid opening.
