Installing Frame For Sunroof

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

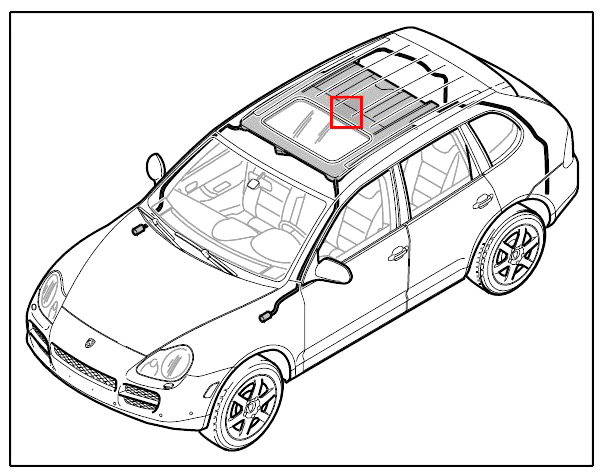

Fig 1: Identifying Sunroof Frame

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Put on frame for sunroof.
1. 1.1. Insert the sliding roof frame -1- with an assistant through the rear lid opening into the passenger compartment.

  Fig 2: Inserting Sliding Roof Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information
  - The punches have a diameter of 10 mm or 12 mm.

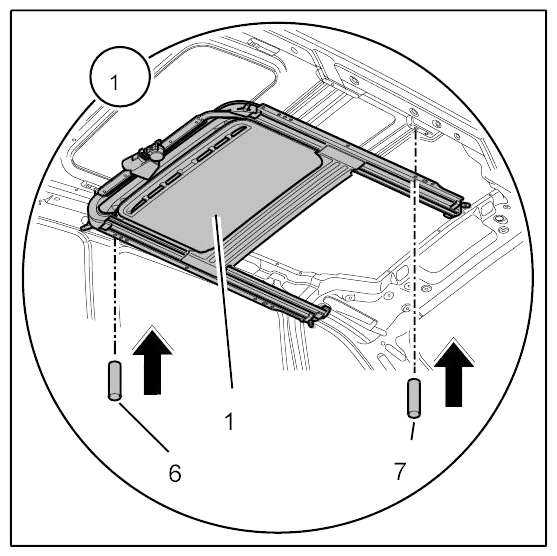

2. 1.2. Position frame for sliding door -1- on the roof frame and attach to the locating bores with punches -6 and 7- .

  Fig 3: Positioning Frame For Sliding Door
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

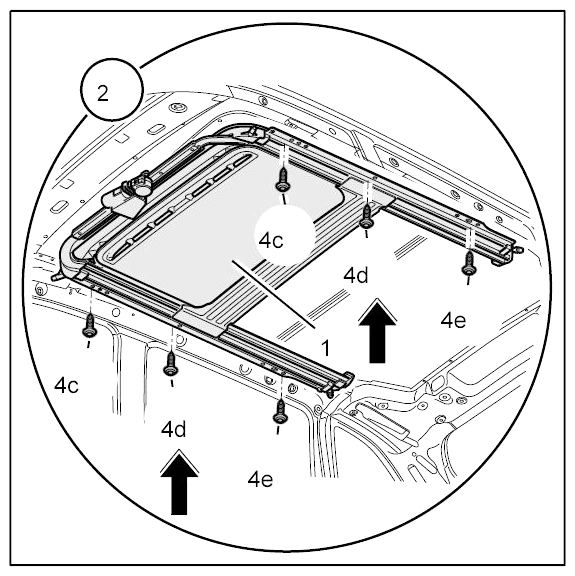

3. 1.3. Screw in fastening screws -4a, 4b- and -4c to 4e- and tighten so that the frame for the sliding roof can still be moved slightly.

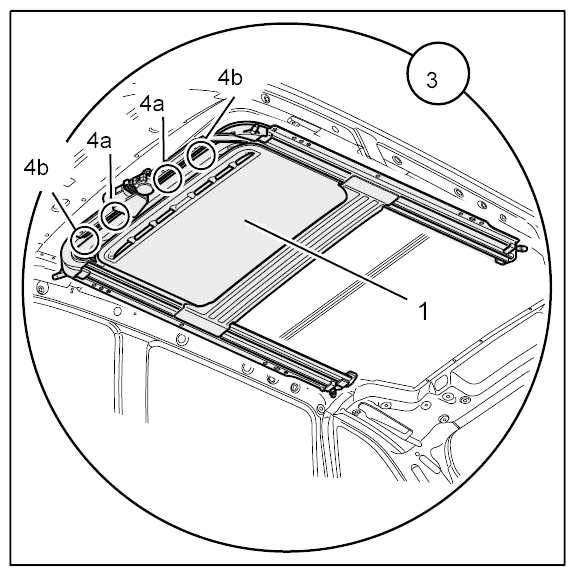

  Fig 4: Identifying Sliding Roof Frame Mounting Screws Tightening Sequence
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 5: Locating Sliding Roof Mounting Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

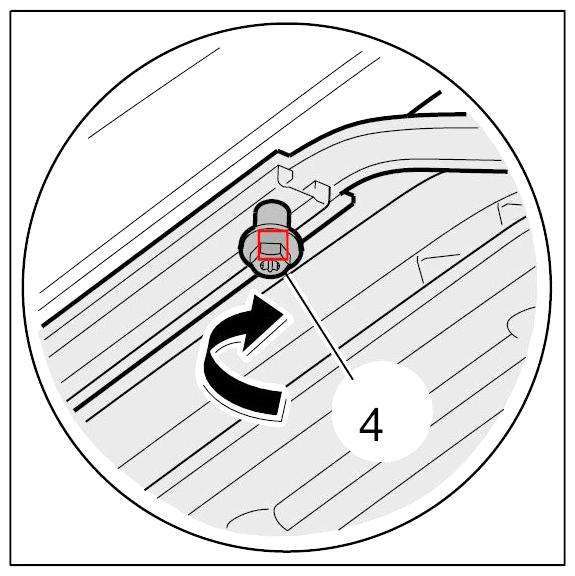

  Fig 6: Turning Sliding Roof Mounting Bolt
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten the fastening screws -4- in the sequence shown -4a, 4b- and -4c to 4e-. → Tightening torque: 8 Nm (6 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)

Fig 7: Identifying Sunroof Frame And Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 8: Locating Sunroof Frame And Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

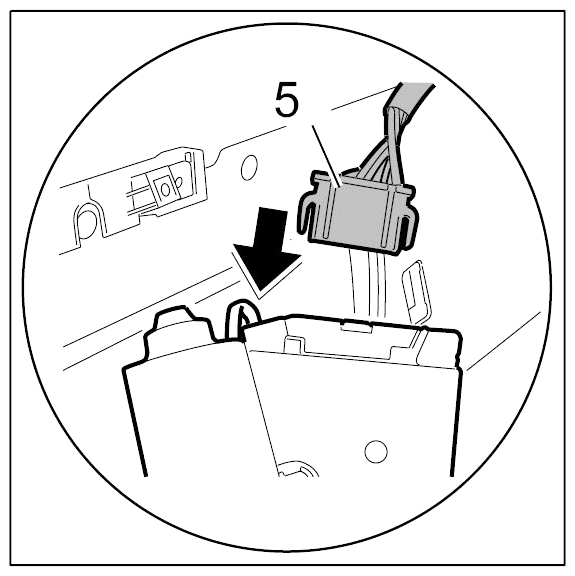

Push electric plug connection -5- onto sunroof drive until locking tabs audibly engage.

Fig 9: Pushing Electric Plug Connection 5 Onto Sunroof Drive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove fixing devices.
1. 4.1. Remove punch -6- and -7- .

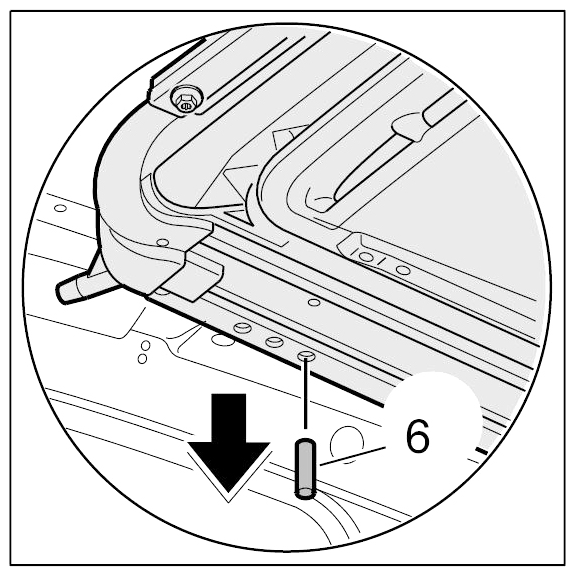

  Fig 10: Removing Punch -6
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

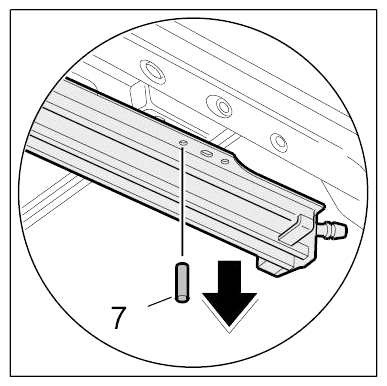

  Fig 11: Removing Punch -7
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

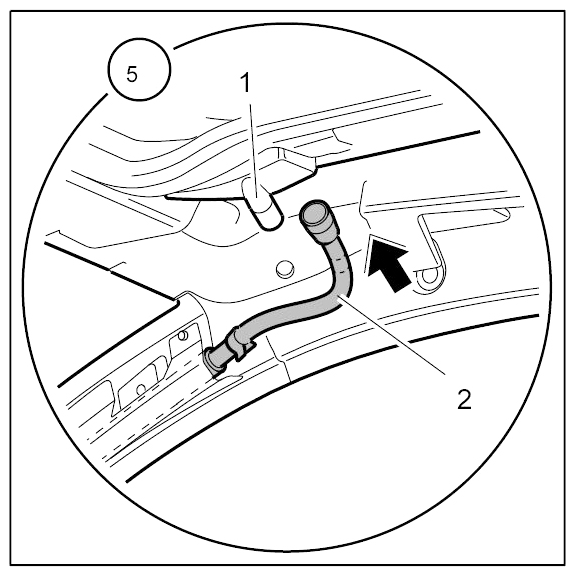

Connect water drain hoses -2- at the front.

Fig 12: Connecting Water Drain Hoses -2
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

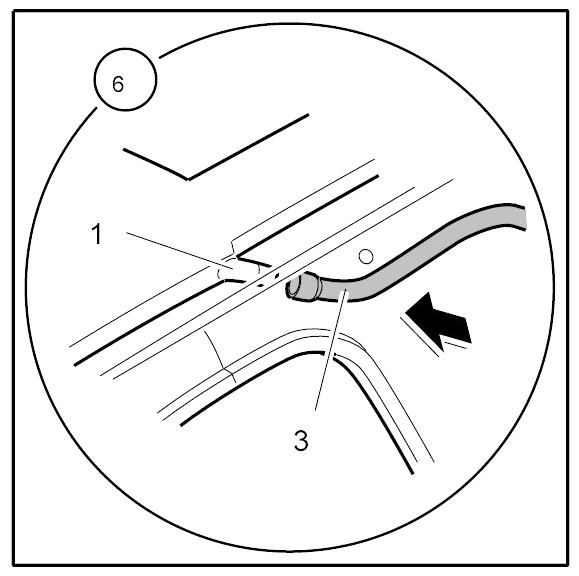

Connect water drain hoses -3- at the rear.

Fig 13: Connecting Water Drain Hoses -3
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
