Removing Motor For Sliding Roof

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

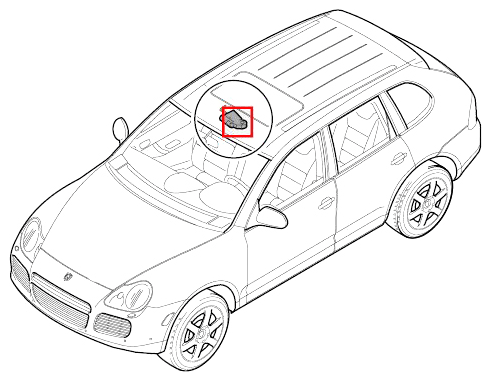

Fig 1: Identifying Sliding Roof Radio Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove the ignition key and switch off the radio.

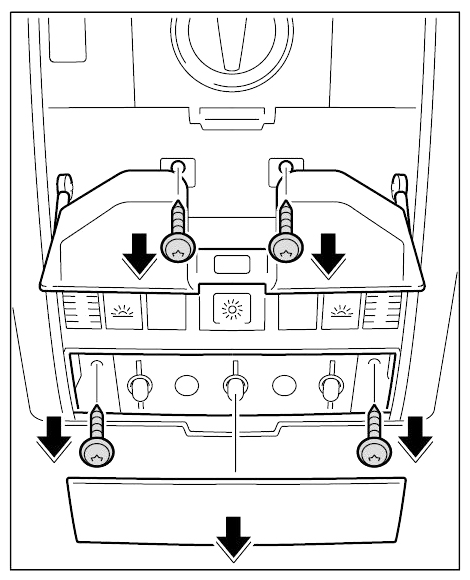

Open the glasses compartment and undo both fastening screws.

Fig 2: Detaching Roof Console Around Sliding Roof Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Detach roof console around sliding roof switch and allow it to hang down to the front.
Information

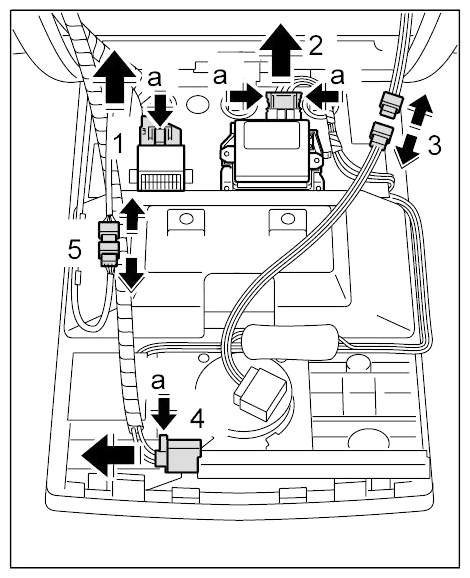

- The number of plug connections can vary, depending on the vehicle equipment. Disconnect all plug connections for removing the roof console.
Press electrical plug on the compartment sensor and unplug.

Fig 3: Pressing Electrical Plug On Compartment Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

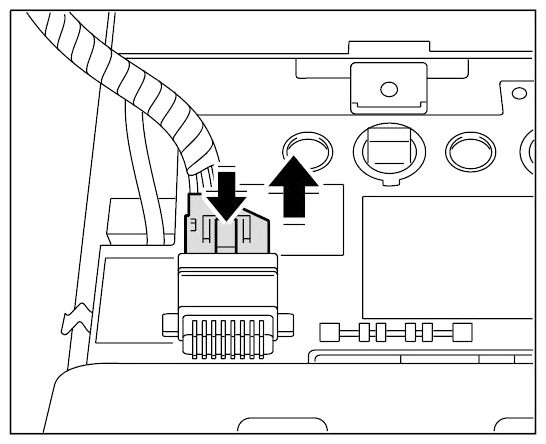

Press the electric connector on the printed circuit board and unplug.

Fig 4: Pressing Electric Connector On Printed Circuit Board
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Detach the roof console from the mounts on the roof liner at the left and right.

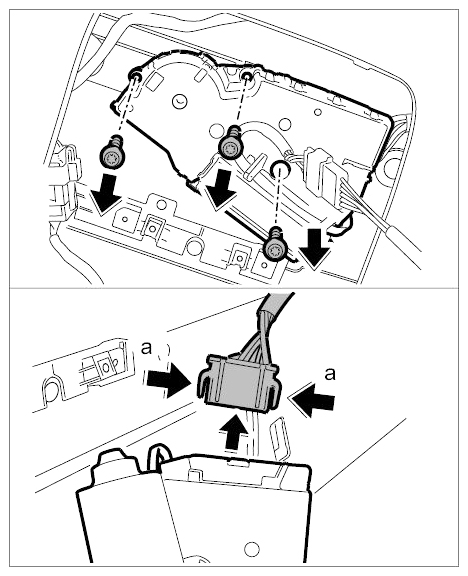

Unscrew the three fastening screws from the motor.

Fig 5: Detaching Roof Console From Mounts On Roof Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the electric connector together -a- and disconnect.

Fig 6: Pressing Electric Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
