Installing Motor For Sliding Roof

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

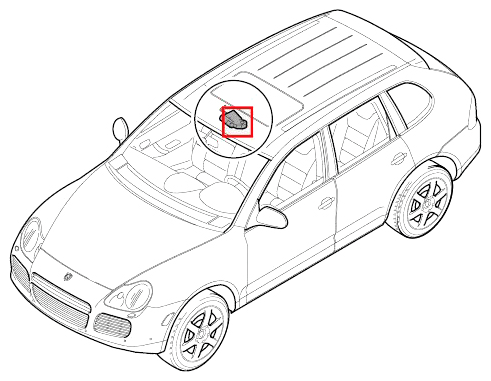

Fig 1: Identifying Sliding Roof Radio Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

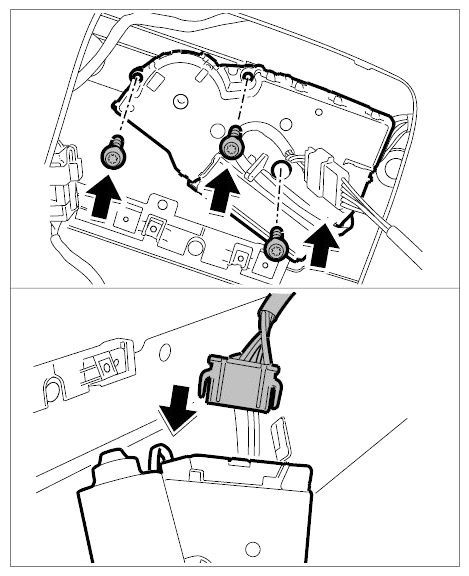

Press in the electric plug until it clicks into place.

Fig 2: Pressing Electric Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position motor and secure with the fastening screws. Tightening torque 2.5 ftlb.

Fig 3: Securing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

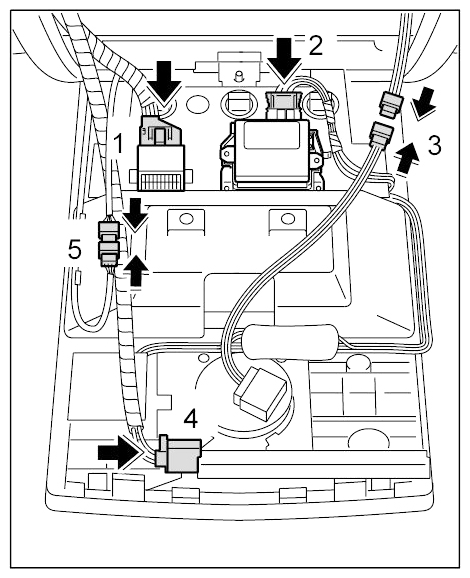

Attach the roof console to the mounts on the roof liner at the left and right and plug in all electrical connections.

Fig 4: Locating Electrical Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

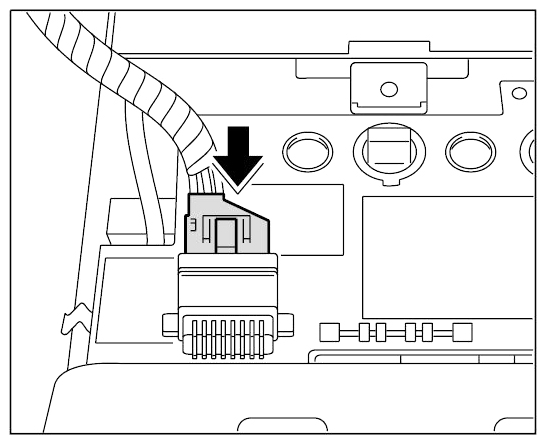

Push the electrical plug for the circuit board until it clicks into place.

Fig 5: Locating Electrical Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

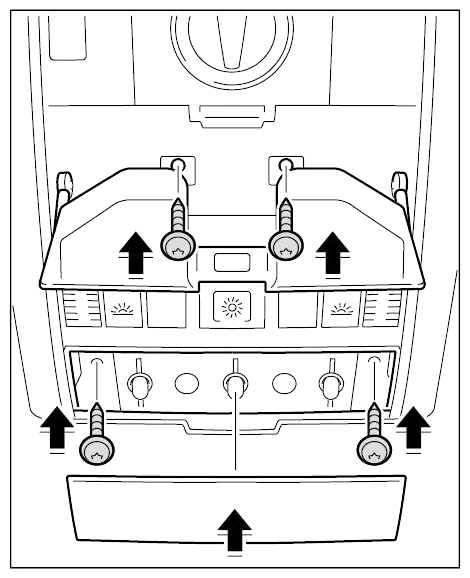

Fold up roof console, clip it in the roof liner and screw down using the two fastening screws. Close glasses compartment.

Fig 6: Folding Up Roof Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
