Removing Roof Assembly For Panorama Roof

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

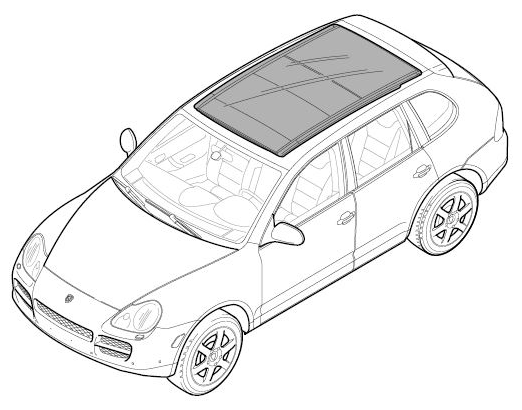

Fig 1: Identifying Roof Assembly For Panorama Roof

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnect electrical plug connection.
1. 1.1. Pull off electric plug connection for vehicle wire harness -4- on the control unit for the roof assembly.

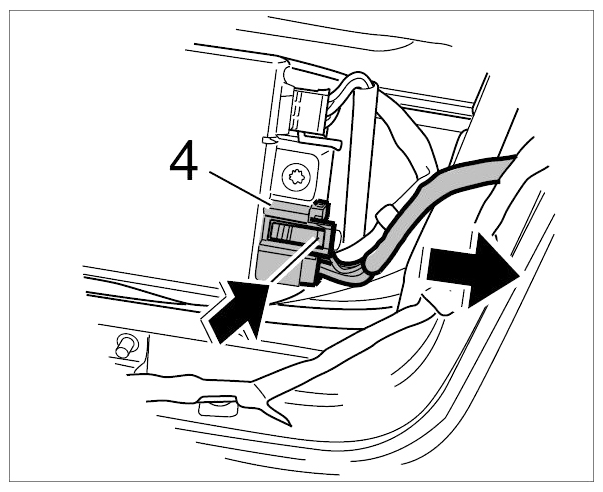

  Fig 2: Removing Electric Plug Connection For Vehicle Wire Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off water drain hoses.
1. 2.1. Pull off water drain hoses -2- and -3- .

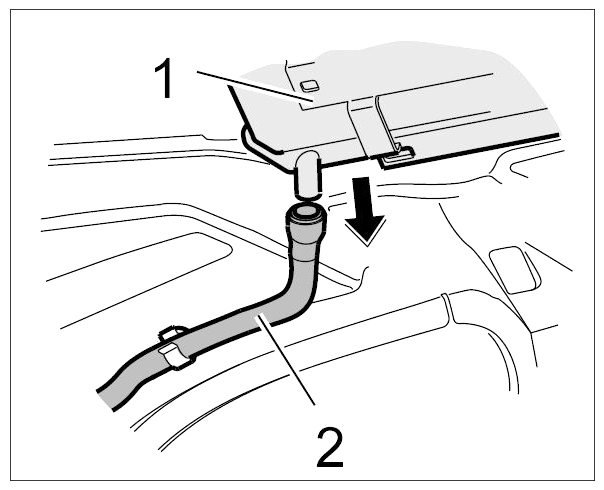

  Fig 3: Removing Water Drain Hoses (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

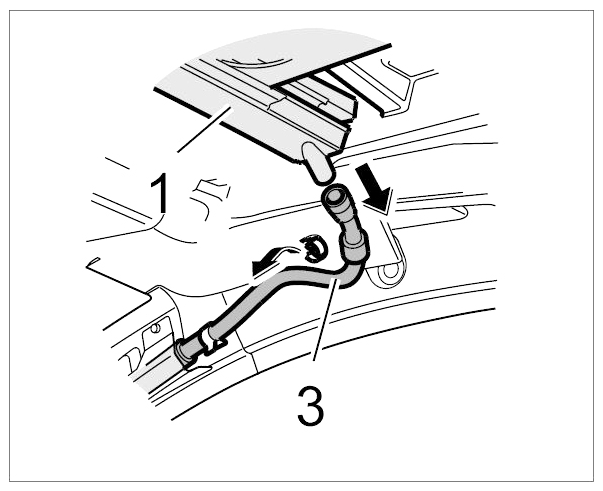

  Fig 4: Removing Water Drain Hoses (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening nuts -5- and -5- on the roof assembly.

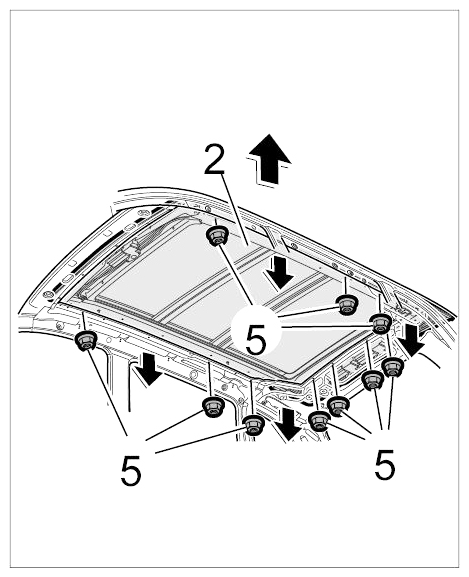

Fig 5: Removing Fastening Nuts (1 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

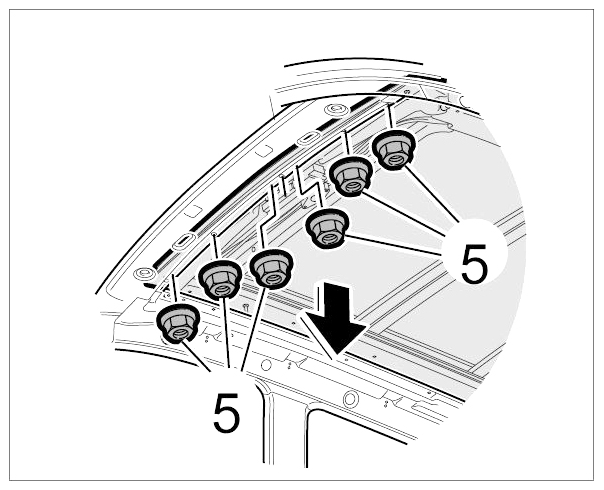

Fig 6: Removing Fastening Nuts (2 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- 3 persons are necessary to be able to take off the roof assembly after removal.
Take off roof assembly with the help of assistants.
