Tools And Materials

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

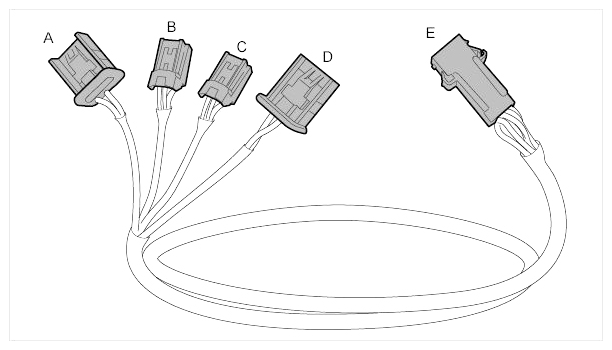

Fig 1: Overview Of Adapter Cable 92574
G09411382Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Purple marking on the connector - adapter for 1st stage of head, side, passenger's airbag units and belt tensioner
  2. Marking A - adapter for 1st stage of driver's airbag unit
  3. Marking B - adapter for 2nd stage of driver's airbag unit
  4. Green marking on the connector - adapter for 2nd stage of passenger's airbag unit
  5. Adapter for ignition device

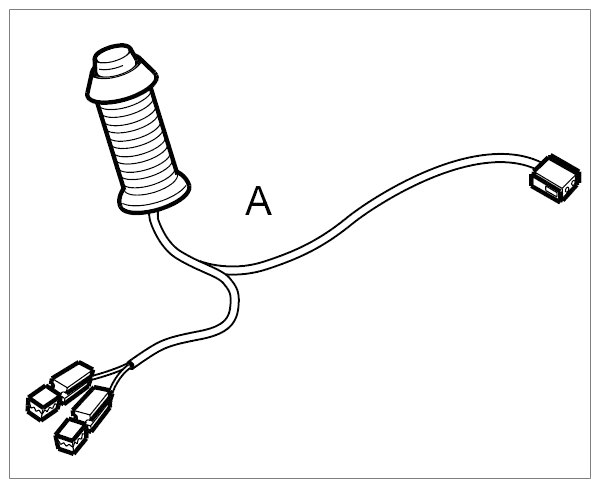

Fig 2: Overview Of Detonator 92570
G09411383Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Detonator 92570
