Side Airbag

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before disconnecting the battery, move the seat to the uppermost position.

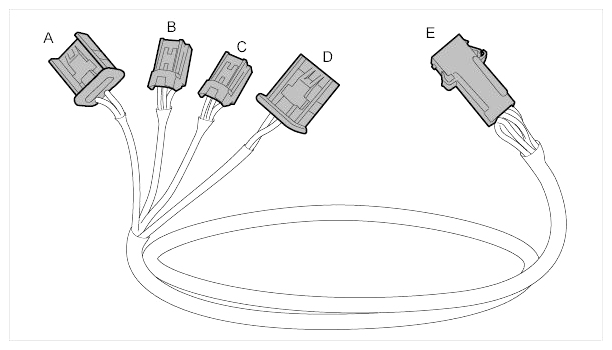

Fig 1: Overview Of Adapter Cable 92574

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Purple marking on the connector - adapter for 1st stage of head, side, passenger's airbag units and belt tensioner
Marking A - adapter for 1st stage of driver's airbag unit
Marking B - adapter for 2nd stage of driver's airbag unit
Green marking on the connector - adapter for 2nd stage of passenger's airbag unit
Adapter for ignition device

Unplug the side-airbag connector and insert connector -A- from the adapter cable 92574 .

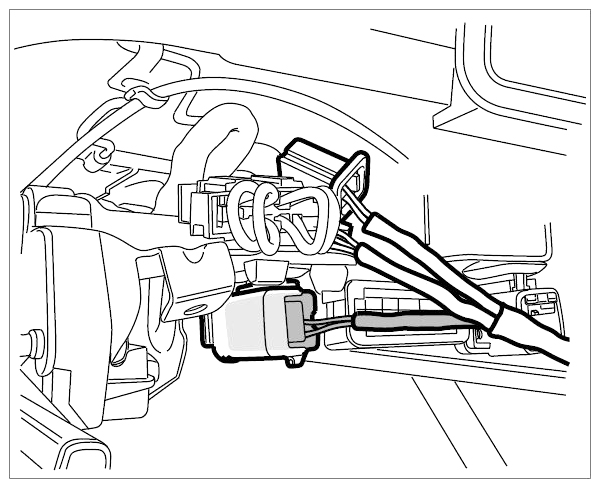

Fig 2: Inserting Adapter Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect the detonator 92570 to the 2-pin connector -E- of the adapter cable 92574 .
Place the ignition device in front of the vehicle through the door gap.
