Passenger's Side

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Incorrect handling of airbag units

Triggering of airbag unit
System faults can occur

→ Switch off ignition and remove ignition key or remote control (hand-held transmitter).

→ A voltage supply (e.g. battery charger) must not be connected to the external power supply/jump-lead starting terminals.

→ Disconnect the battery and insulate the ground strap so that all contact with a ground carrier is avoided.

→ Wait 1 minute after disconnecting the battery.

→ Only detach connector on the triggering unit after the waiting time has elapsed.

→ Make sure that no foreign objects are located in front of the airbag unit during installation.

→ Replace damaged parts during removal.

→ Always position airbag units so that the blow-out opening is facing upwards, e.g. crest on driver's airbag.

→ Do not position anything on the airbag units.

→ If removed for an extended period, the airbag units must be stored in a safe place.

→ Airbag units must not come into contact with grease, oil, detergents, liquids, or similar substances.

→ Do not expose airbag units to temperatures above 90°.

→ Do not remove the short-circuit spring on the plug-in contacts.

→ Ignition and preparations may only be carried out by skilled staff, supervised by a second responsible person.

→ Before disposal, the airbag unit must be rendered harmless by electrical ignition performed in accordance with all precautionary measures, thereby preventing it from being used incorrectly.

Information

Only ignite airbag units that are securely installed and in original condition in the vehicle. Allow airbag units to cool down under observation following ignition.

Use only the ignition tool intended for this purpose. First remove all loose objects from the expansion area of the airbag.
Every ignition circuit for all airbag units and seat-belt pretensioners must be ignited individually.
Persons who may be affected must be informed of the resulting noise beforehand.
Wear ear protectors.
Keep a safe distance by utilising the entire cable length of the ignition tool. Do not connect the voltage source until all other preparations are complete.
If ignition fails, wait for approx. 3 minutes before approaching the vehicle.
Carry out ignition only in suitable, open areas.
Do not allow ignited airbag units to come into contact with the skin.

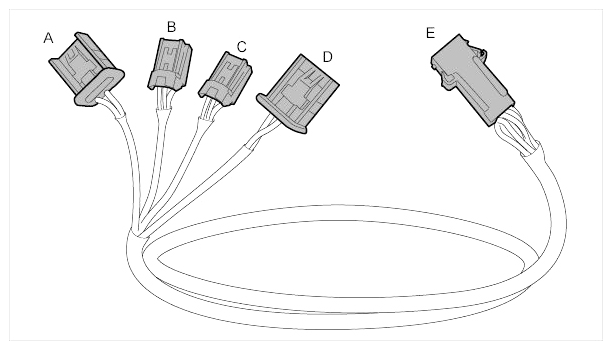

Fig 1: Overview Of Adapter Cable 92574
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Purple marking on the connector - adapter for 1st stage of head, side, passenger's airbag units and belt tensioner
Marking A - adapter for 1st stage of driver's airbag unit
Marking B - adapter for 2nd stage of driver's airbag unit
Green marking on the connector - adapter for 2nd stage of passenger's airbag unit
Adapter for ignition device

Remove glove compartment → Remove the glove compartment
Disconnect both connectors from the airbag unit and first plug in the connector -A- - 1st stage - from the adapter cable 92574 to the airbag unit on the right.

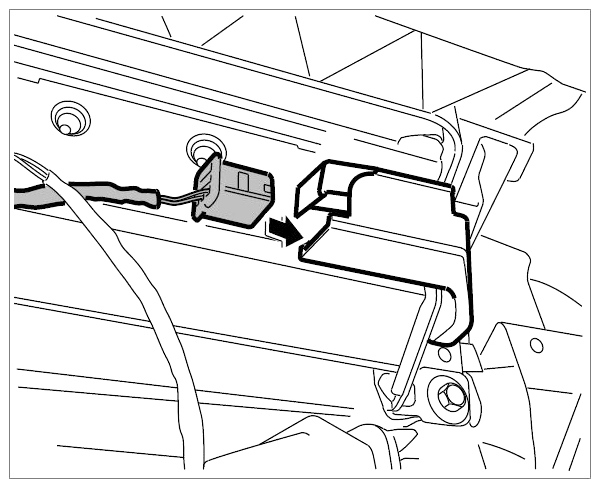

Fig 2: Inserting Adapter Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- This is a two-stage airbag module with a connection for the 1st stage at the left in direction of travel and a connection for the 2nd stage at the right in direction of travel.
Connect the detonator 92570 to the 2-pin connector -E- of the adapter cable 92574 .
Place the ignition device in front of the vehicle through the door gap.
After triggering, repeat the work step on the left of the airbag unit with connector -D- - 2nd stage.
