Belt Tensioner

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

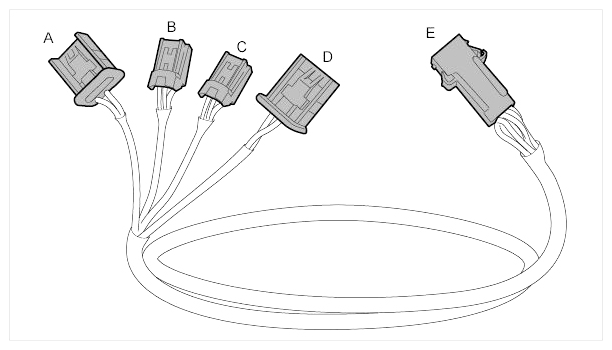

Fig 1: Overview Of Adapter Cable 92574
G09411392Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Purple marking on the connector - adapter for 1st stage of head, side, passenger's airbag units and belt tensioner
  2. Marking A - adapter for 1st stage of driver's airbag unit
  3. Marking B - adapter for 2nd stage of driver's airbag unit
  4. Green marking on the connector - adapter for 2nd stage of passenger's airbag unit
  5. Adapter for ignition device
  1. For the front belt tensioners, remove the B-pillar trim panel. → Removing B-pillar trim panel
  2. For the rear belt tensioners, remove the C-pillar trim panel and the rear side-panel lining. → Removing C-pillar trim panel → Removing rear luggage compartment side-trim panel
  3. Unplug the connector on the seat-belt tensioner and insert connector -A-  from the adapter cable 92574  .

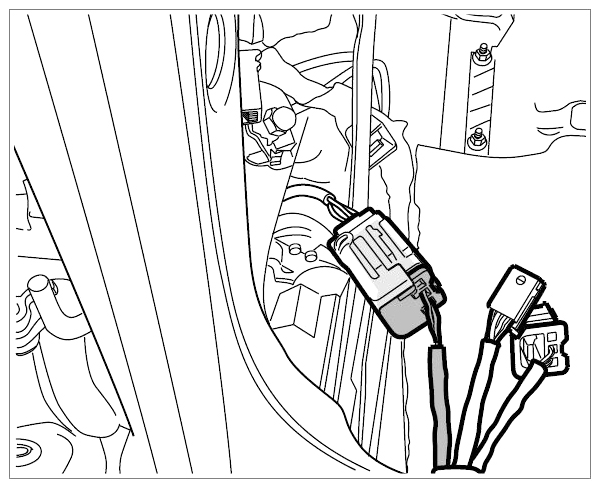

    Fig 2: Inserting Adapter Cable
    G09411393Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Connect the detonator 92570  to the 2-pin connector -E-  of the adapter cable 92574  .
  5. Place the ignition device in front of the vehicle through the door gap.
