Removing Rear Door Hinge

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Upper Door Hinge

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

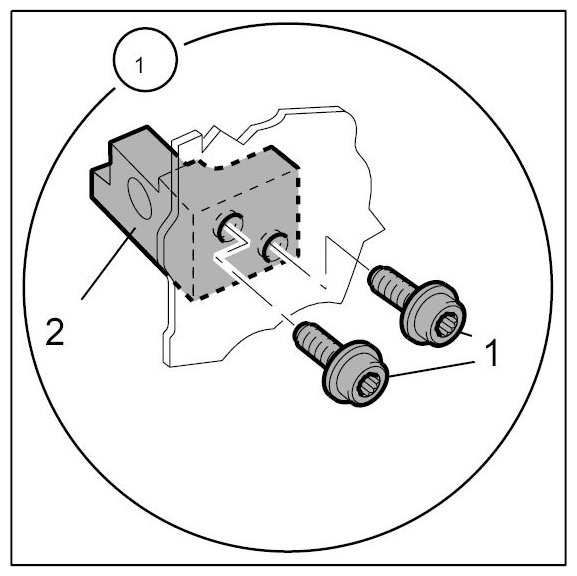

Remove upper door hinge
1. 1.1. Unscrew fastening screws -1- for the upper door hinge -2- using the relevant special tool and remove them. → Tools And Materials
2. 1.2. Remove upper door hinge -2- .

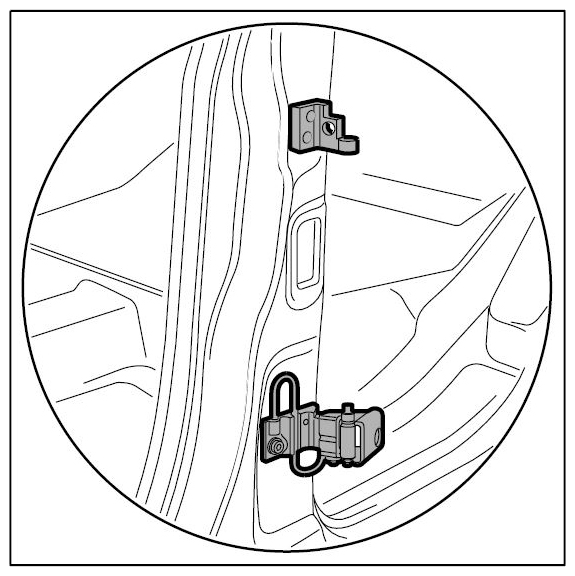

  Fig 2: Identifying Upper Door Hinge
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 3: Identifying Upper Door Hinge Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

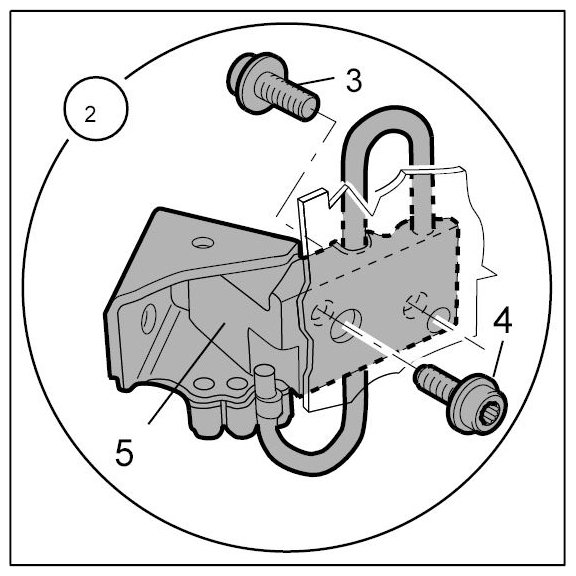

Remove lower door hinge
1. 2.1.
  NOTE: The rear fastening screw -4- is fitted from inside the vehicle.
2. 2.2. Unscrew fastening screws -3, 4- for the lower door hinge -5- using the relevant special tool and remove them. → Tools And Materials
3. 2.3. Remove lower door hinge -5- .

  Fig 4: Identifying Lower Door Hinge And Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

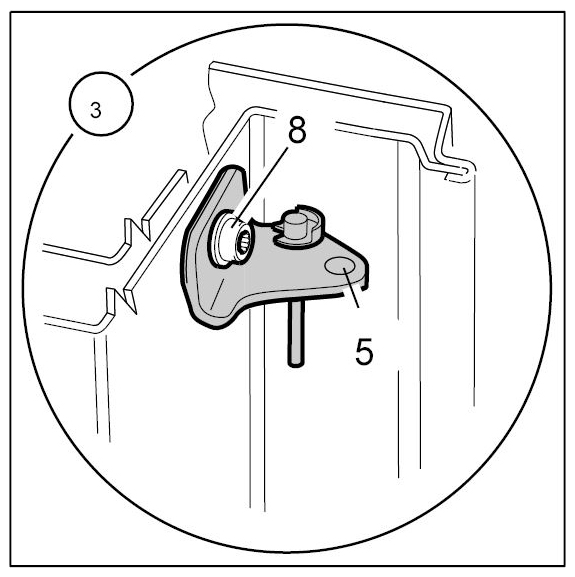

Remove lower door hinge at the door
1. 3.1. Unscrew fastening screw -8- for the lower door hinge -5- using the relevant special tool and remove it. → Tools And Materials
2. 3.2. Remove lower door hinge -5- .

  Fig 5: Identifying Lower Door Hinge And Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

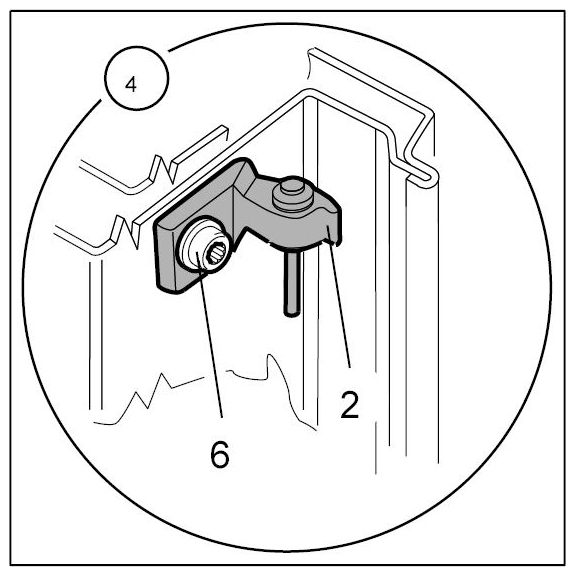

Remove upper door hinge at the door
1. 4.1. Unscrew fastening screw -6- for the upper door hinge -2- using the relevant special tool and remove it. → Tools And Materials
2. 4.2. Remove upper door hinge -2- .

  Fig 6: Identifying Upper Door Hinge And Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
