Disassembling Rear Door

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

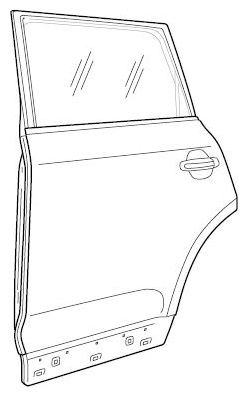

Fig 1: Identifying Rear Door

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove door handle base plate.
1. 1.1. Unscrew fastening screw for securing door handle base plate -1- and remove it (-arrow A- ).

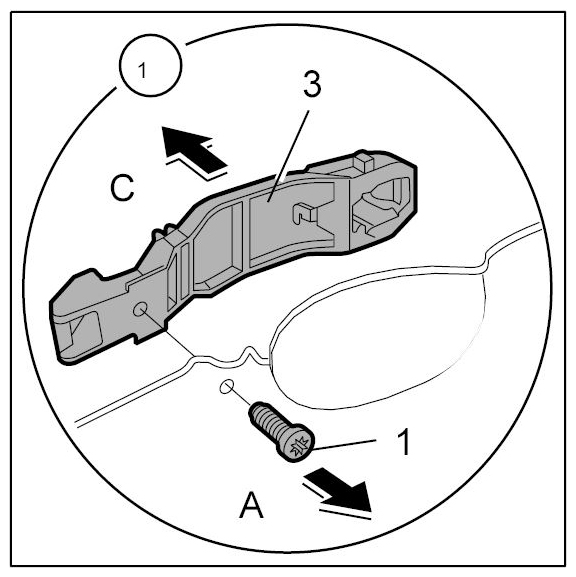

  Fig 2: Removing Securing Door Handle Base Plate
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Press together the fastening clips -2- for the door handle base plate -3- (-arrow B- ) and remove door handle base plate to the rear (-arrow C- ).

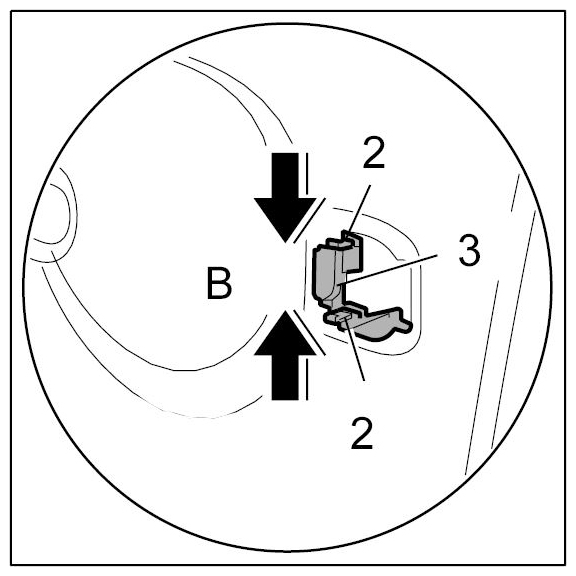

  Fig 3: Pressing Fastening Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 4: Removing Door Handle Base Plate To Rear
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

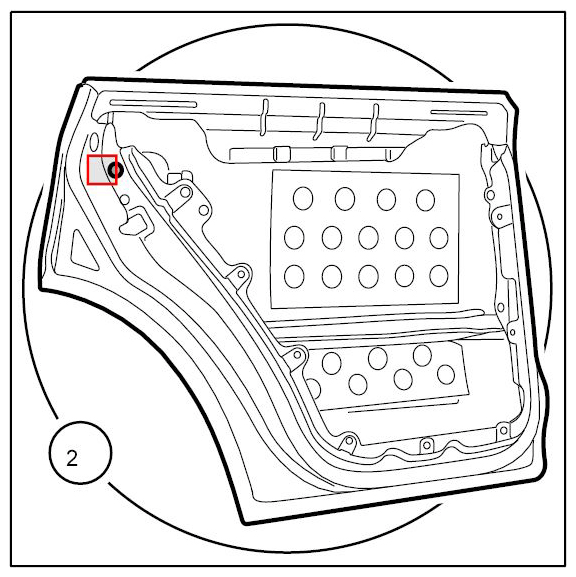

  Fig 5: Identifying Rubber Grommet
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove rubber grommet.
1. 2.1. Remove the rubber sleeve -4- by pulling it towards the rear (-arrow D- ).

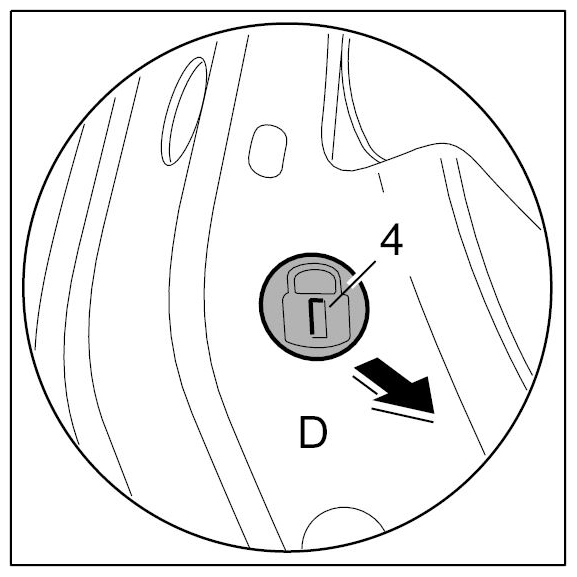

  Fig 6: Removing Rubber Sleeve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
