Assembling Rear Door

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

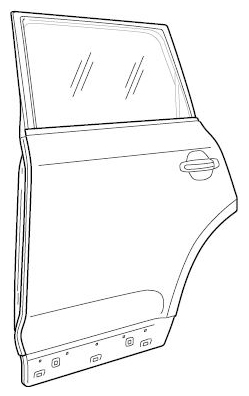

Fig 1: Identifying Rear Door

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

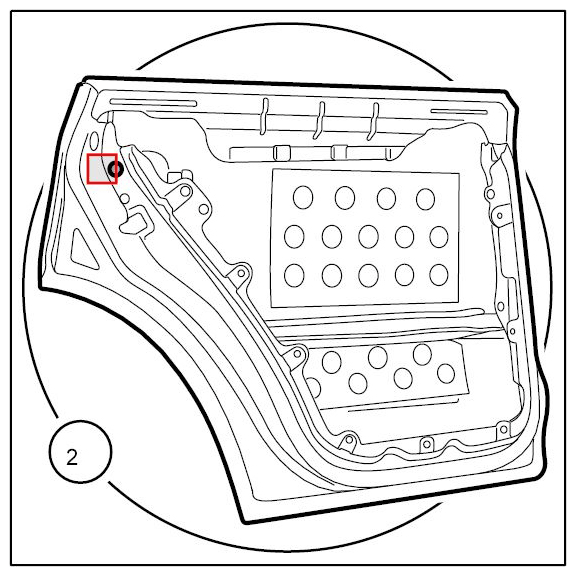

Fig 2: Identifying Rubber Grommet

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install rubber grommet.
1. 1.1. Insert the rubber sleeve -4- into the existing opening (-arrow E- ).
  When doing this, make sure the holding lips are fitted correctly.

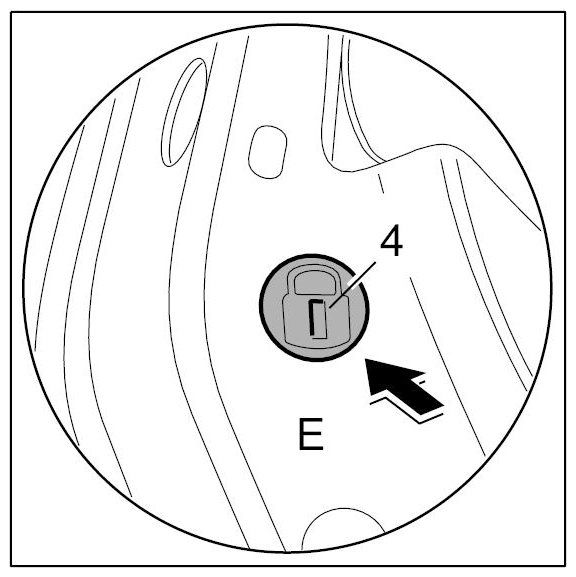

  Fig 3: Locating Rubber Sleeve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install the door handle base plate.
1. 2.1. Insert the door handle base plate -3- from the rear (-arrow F- ). When doing this, make sure the fastening clips -2- click into place correctly.

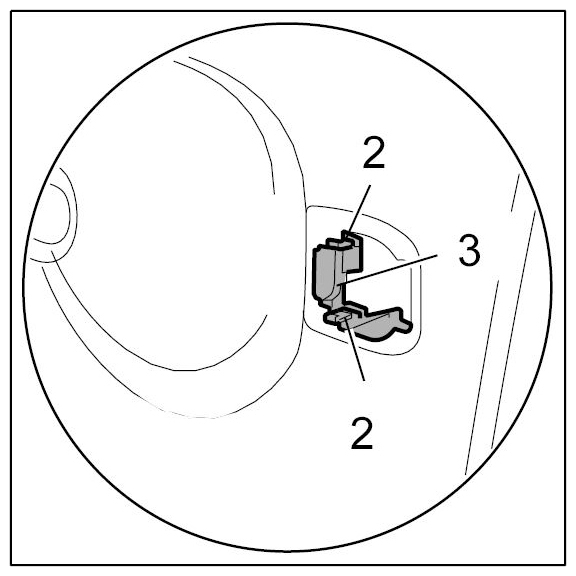

  Fig 4: Installing Door Handle Base Plate (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

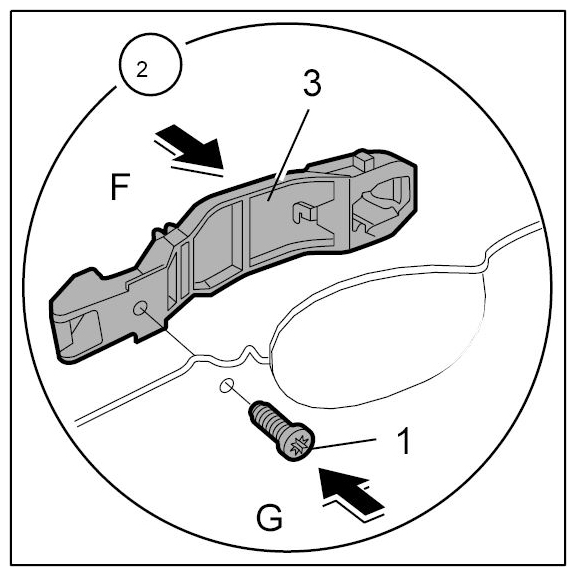

  Fig 5: Installing Door Handle Base Plate (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Screw in fastening screws for the door handle base plate -1- -arrow G- and tighten to tightening torque.→ Tightening torques: 4.5 Nm (3.5 ftlb)+/-0.4 Nm (+/-0.5 ftlb.)

  Fig 6: Locating Door Handle Base Plate Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
