Gap Dimensions Of Rear Door
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

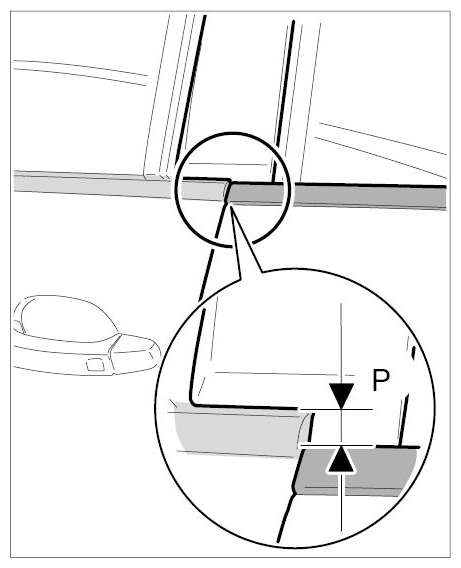

| Front door trim strip to rear door trim strip (P) |
Rear door only lowered |
Gap dimension |
0 mm |
-1 mm |
|
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

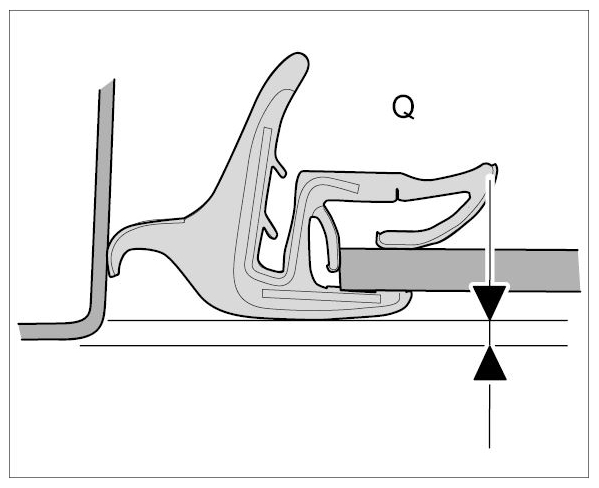

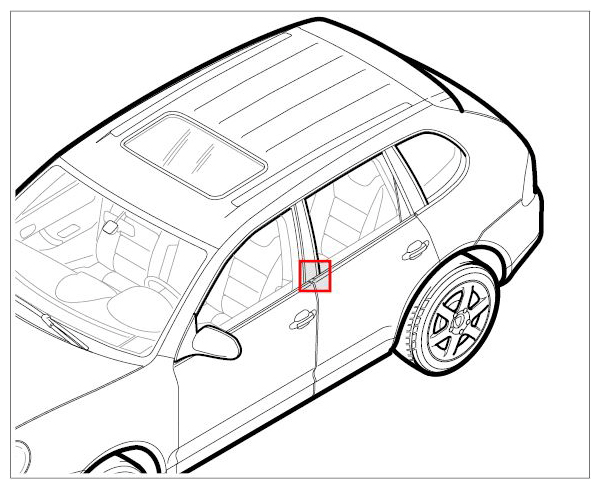

| Gap dimension from rear door frame to B-pillar trim panel (Q) |
|
Gap dimension |
0.8 mm |
+/-0.5 mm |
|
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

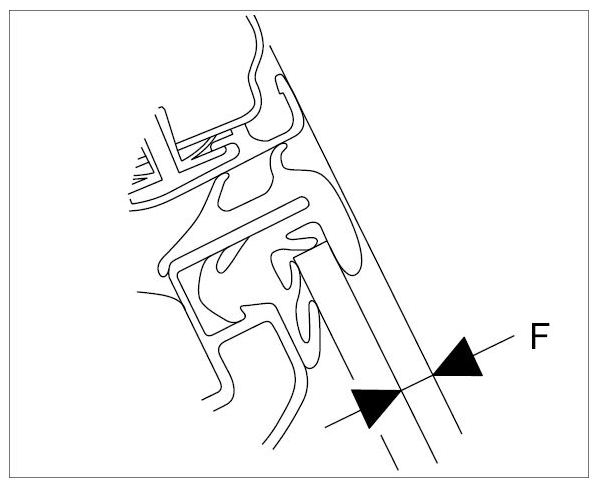

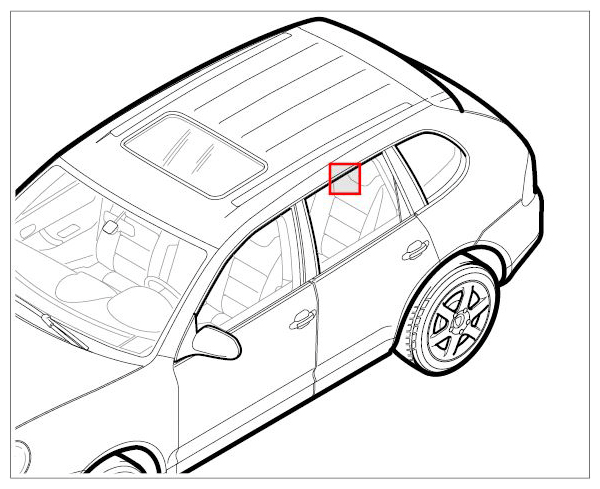

| Door window to trim strip and outer side section (F) |
|
Gap dimension |
5 mm |
|
|
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

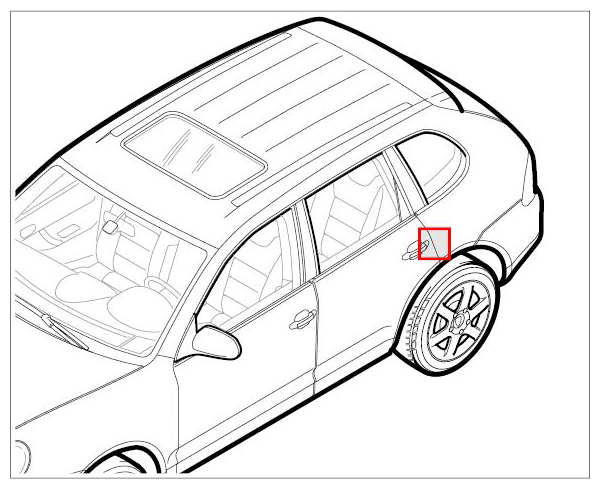

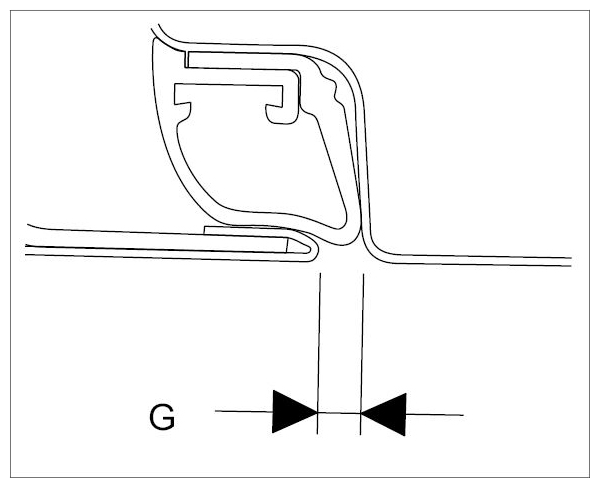

| Door to outer side section (G) |
Door only raised (max. 1 mm) |
Gap dimension |
4 mm |
+/-0.5 mm |
|
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

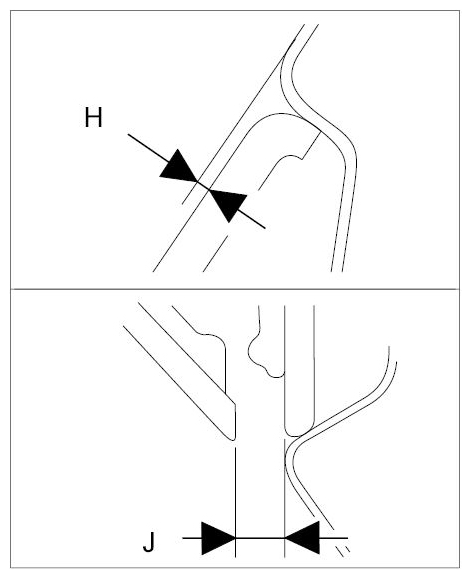

| Door cover to top of outer door panel (H) |
|
Gap dimension |
1 mm |
|
|
| Door cover to bottom of outer door panel (J) |
|
Gap dimension |
5 mm |
|
|
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

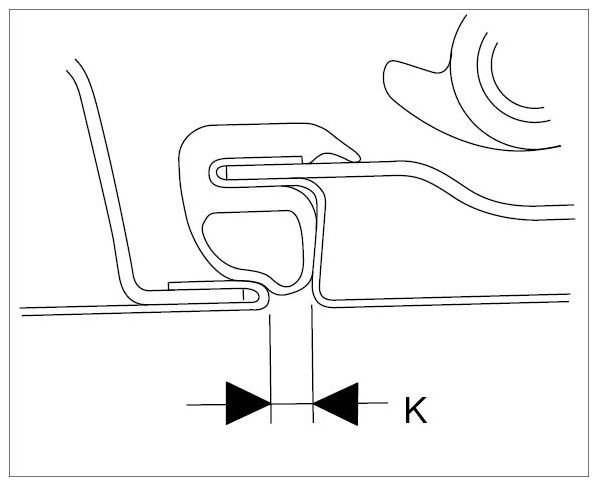

| Front door to rear door (K) |
Rear door only lowered (max. 1 mm) |
Gap dimension |
4.5 mm |
+/-0.5 mm |
|
