Installing Wiring Harness

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

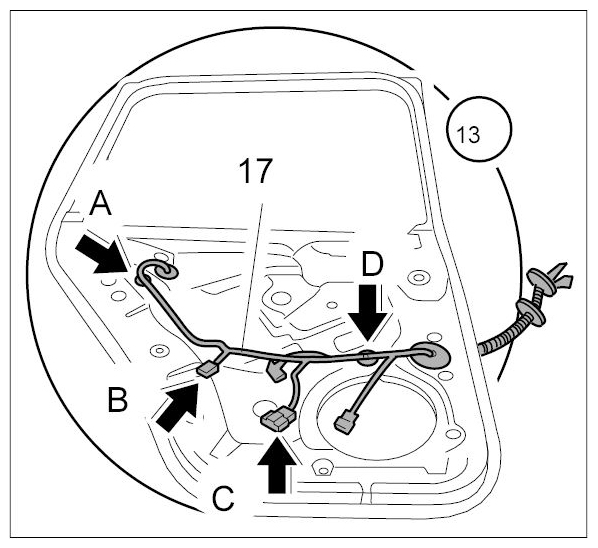

  1. Lay wiring harness -17-  on door unit carrier as shown.
    Fig 1: Locating Wiring Harness
    G09411235Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Clip wiring harness -17-  into the door unit carrier at the marked positions (-arrows A, D-  ).
    Fig 2: Locating Clip Wiring Harness
    G09411236Courtesy of PORSCHE CARS NORTH AMERICA, INC.

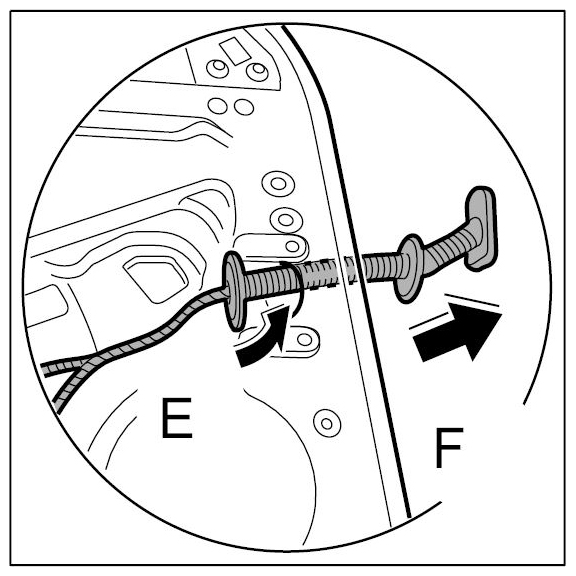

  3. Guide front area (transition to B-pillar) of wiring harness through the door unit carrier (-arrow E-  ) and pull it out to the front (-arrow F-  ). Make sure that the rubber grommet is not twisted when fitted
    Fig 3: Locating Guide Front Area (Transition To B-Pillar)
    G09411237Courtesy of PORSCHE CARS NORTH AMERICA, INC.
