Installing The Window Seal

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install the window seal.

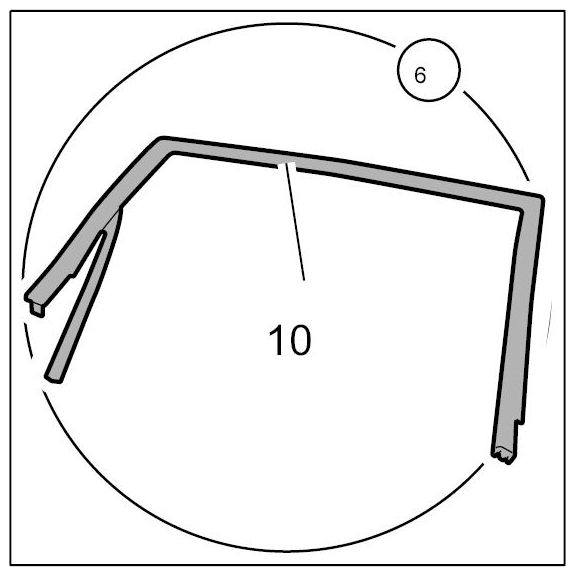

1. 1.1. Lay out window seal -10- as shown and fit to the window frame in the top corner.

  Fig 1: Identifying Lay Out Of Window Seal
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

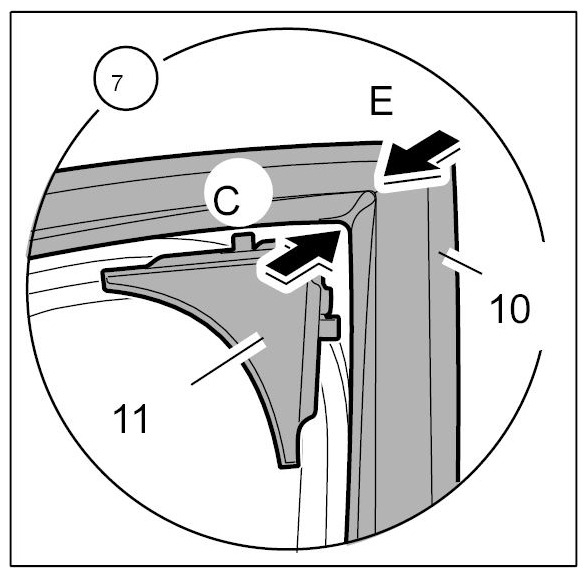

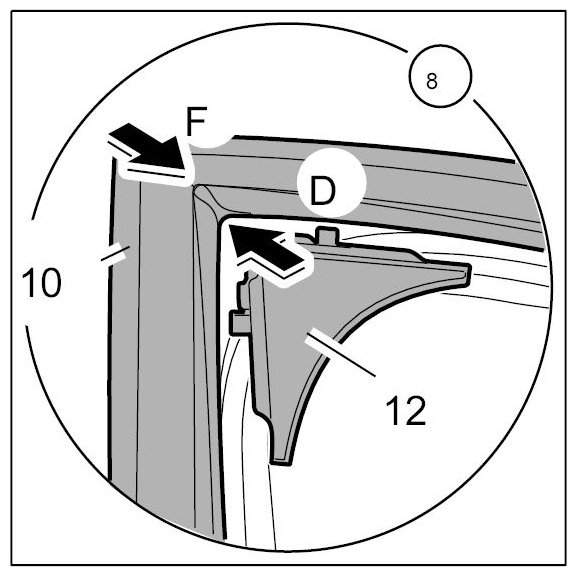

2. 1.2. Place the plastic covers -11- and -12- (-arrow C- and -arrow D- ) and push them against the corner area of the window seal (-arrow E- and -arrow F- ).

  Fig 2: Placing Plastic Covers
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 3: Placing Plastic Covers
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

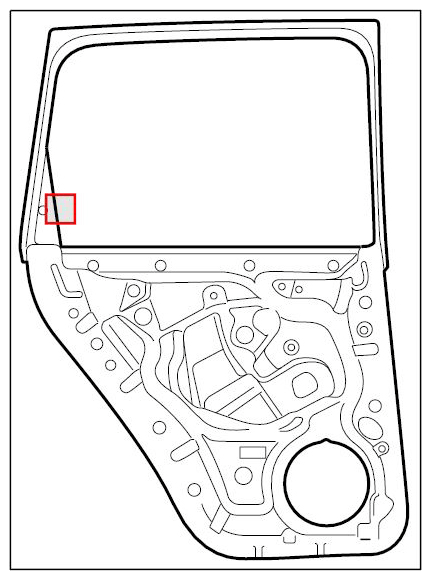

3. 1.3. Attach the window seal to the door frame along the B-pillar, roof rail, and C-pillar.

  Fig 4: Identifying Window Seal Applying Area On Door Frame Along B-Pillar, Roof Rail, And C-Pillar
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install triangular cover.

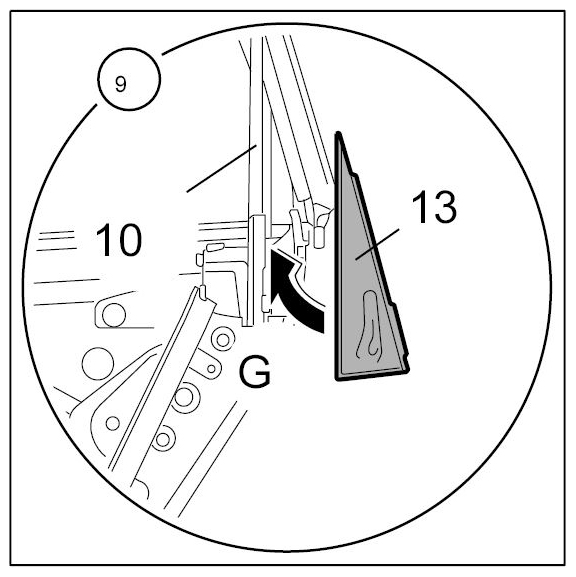

1. 2.1. Insert triangular cover -13- into the window seal -10- and clip it in -arrow G- .

  Fig 5: Inserting Triangular Cover 13 Into Window Seal
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install inner window shaft moulding.

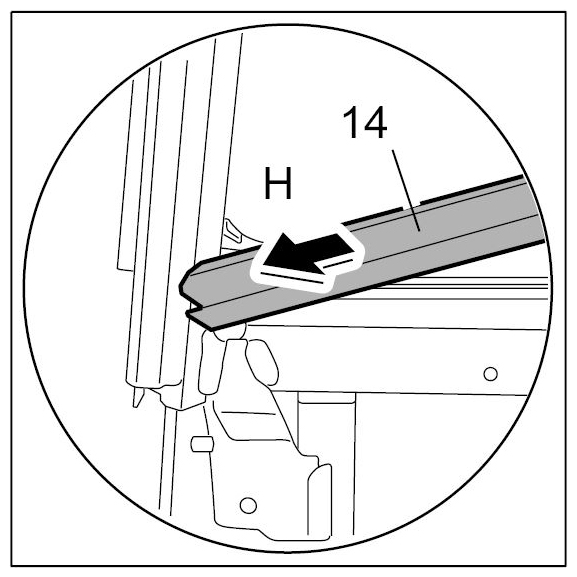

1. 3.1. Position the inner window shaft moulding -14- in the front area (-arrow H- ).

  Fig 6: Installing Inner Window Shaft Moulding
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

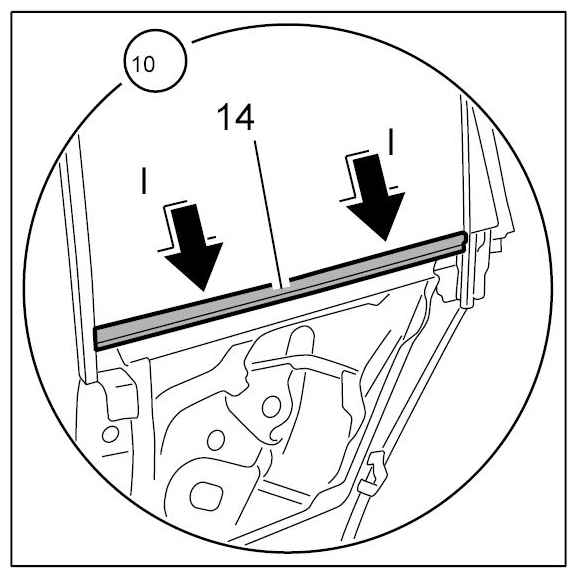

2. 3.2. Centre the inner window shaft moulding -14- and press it evenly on to the door unit carrier over the entire length (-arrow I- ).

  Fig 7: Pressing Door Unit Carrier Over Entire Length
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn the component on the assembly table.
