Installing Front And Rear Cover Caps

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

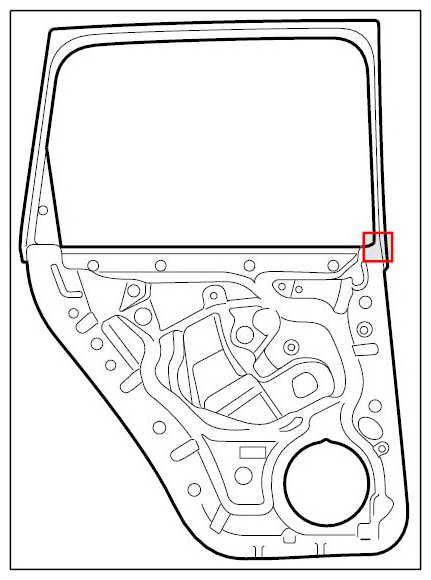

Fig 1: Identifying Front And Rear Cover Caps

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install front cover cap.
1. 1.1. Attach front cover -6- to the door sub-frame using the locking tab and swivel to end position (-arrows- ).

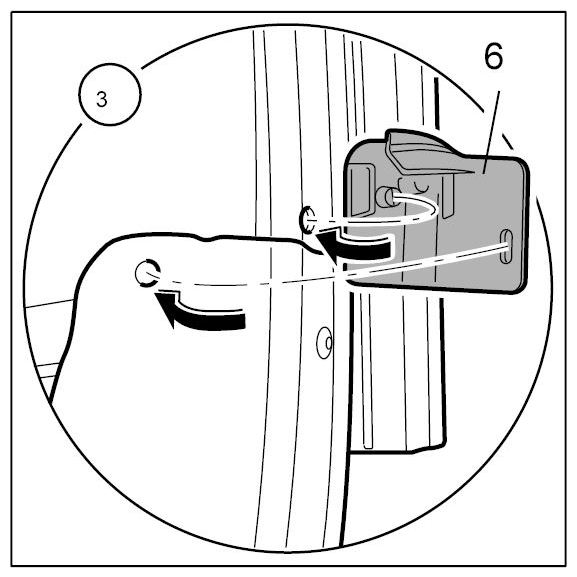

  Fig 2: Assembling Rear Door Sub-Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Rivet the front cover -6- to the door sub-frame (-8- ).

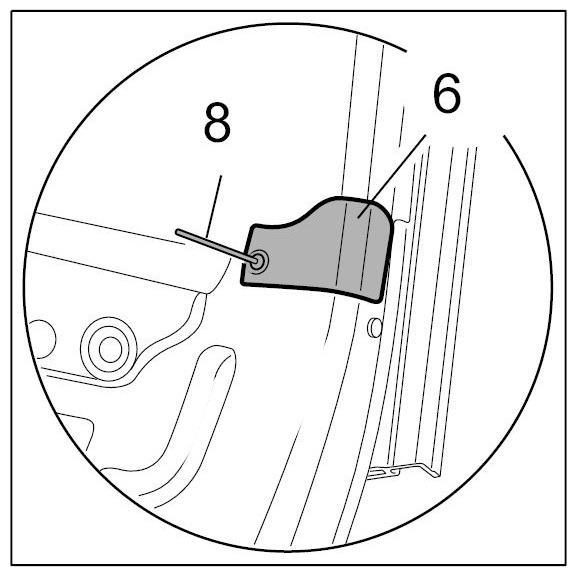

  Fig 3: Identifying Rivet, Front Cover And Door Sub-Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

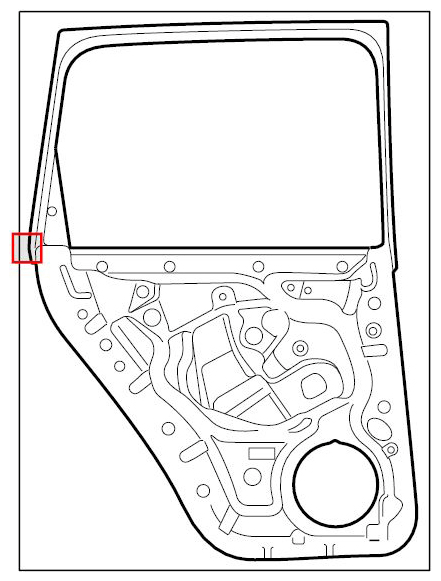

  Fig 4: Identifying Rear Door Sub-Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install rear cover cap.
1. 2.1. Attach rear cap -7- to the door sub-frame using the locking tab and swivel to end position (-arrows- ).

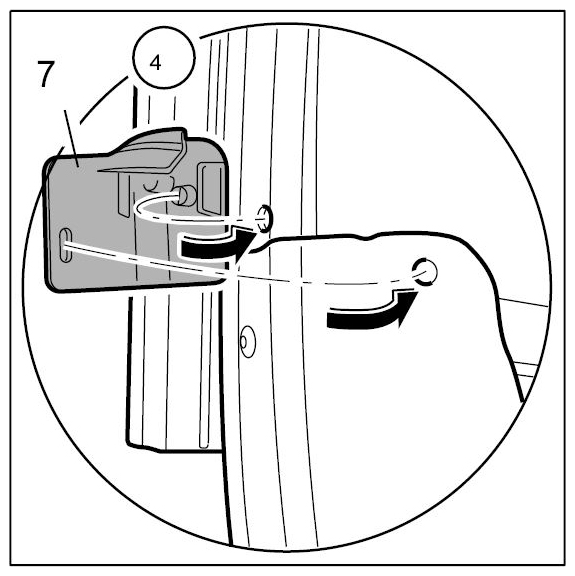

  Fig 5: Installing Rear Cover Cap
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Rivet the rear cover -7- to the door sub-frame (-8- ).

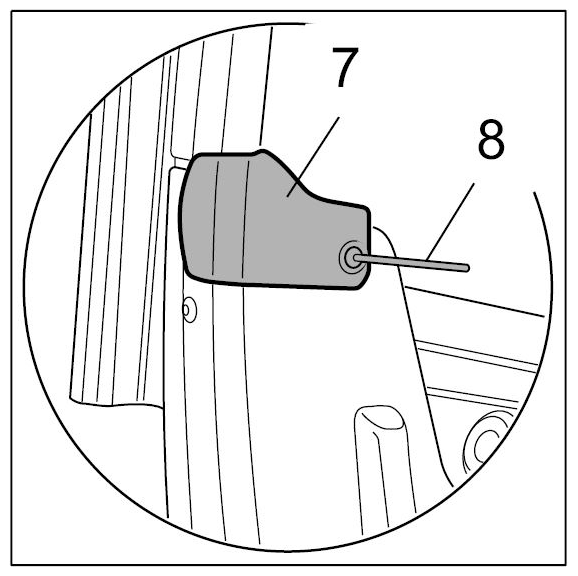

  Fig 6: Identifying Rear Cover And Door Sub-Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

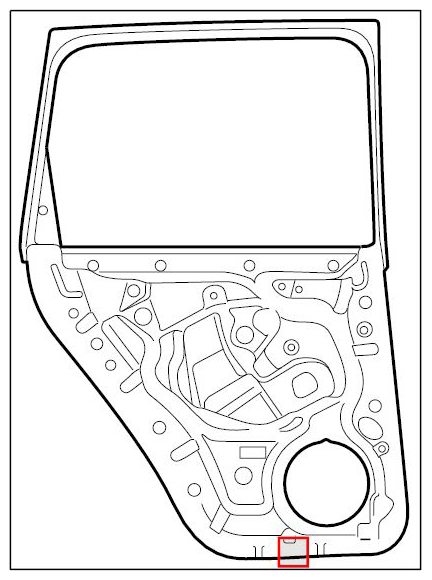

  Fig 7: Identifying Rear Door Sub-Frame Bottom Side
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert expanding nuts.
1. 3.1. Press in the expanding nuts -9- on the lower edge of the door unit carrier.

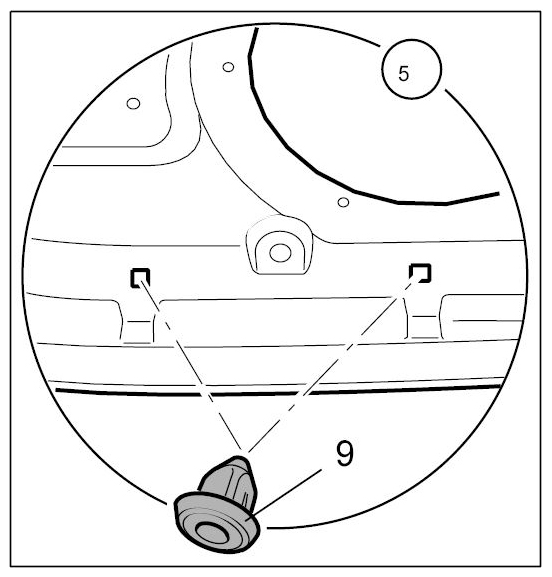

  Fig 8: Identifying Rear Door Sub-Frame Expanding Nut
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
