Locking Door Handle Mounting Point

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To fit the door handle correctly, the receiver -9- must be secured in installation position prior to installation.
The receiver is secured automatically during removal. If the receiver is no longer secured or if new components are installed, the receiver can also be secured afterwards in accordance with the instructions below.

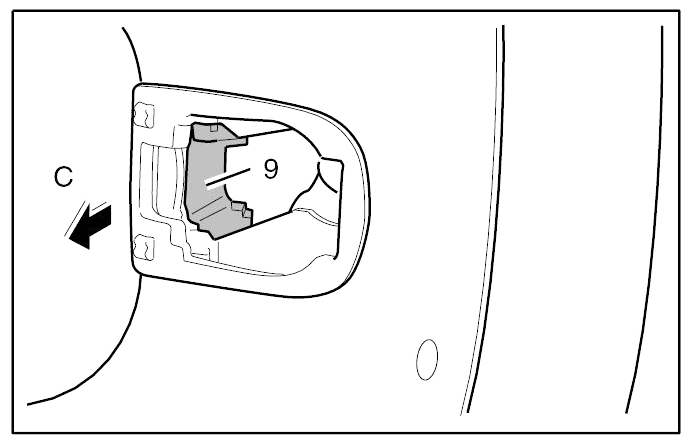

Pull receiver -9- towards outer door panel and hold in this position (-Arrow C- ).

Fig 1: Pulling Receiver
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

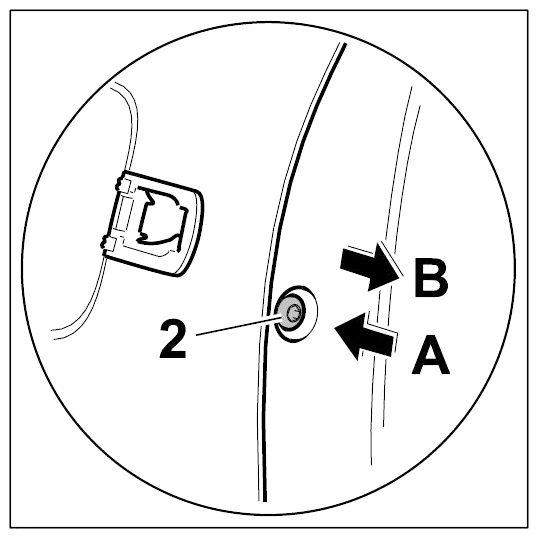

Screw in fastening screw -2- (-Arrow A- ) until the receiver can be pulled into installation position.

Fig 2: Positioning Door Handle Receiver
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hold the mounting point -9- in this position.

Fig 3: Installing Door Handle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screw -2- (-arrow B- ) until the mounting point -9- is locked in this position.

Fig 4: Locking Door Handle Receiver
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
