Removing Relay For Heated Rear Window

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

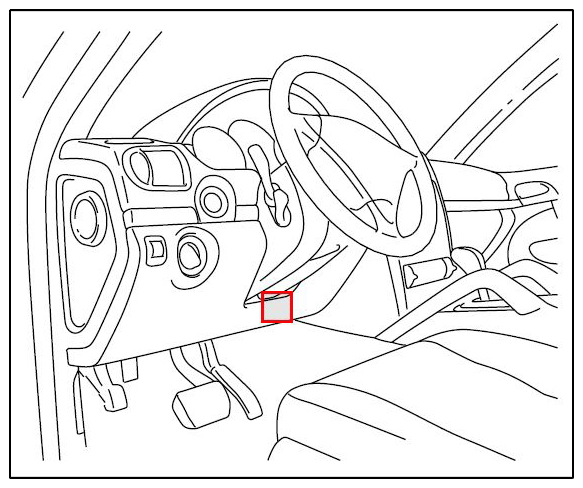

Fig 1: Identifying Heated Rear Window Relay Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

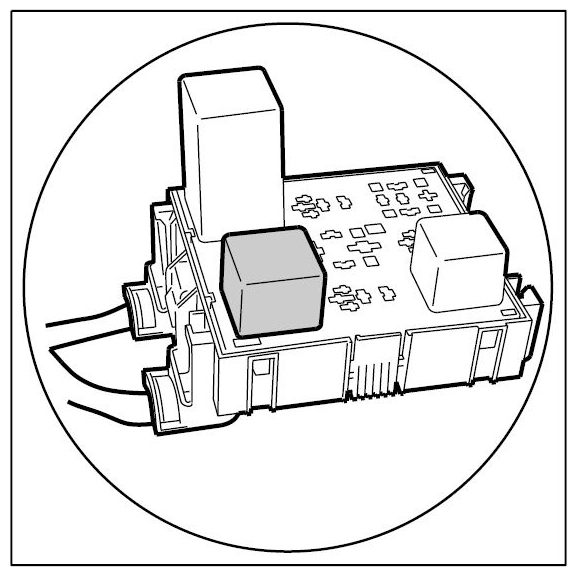

Fig 2: Identifying Relay

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

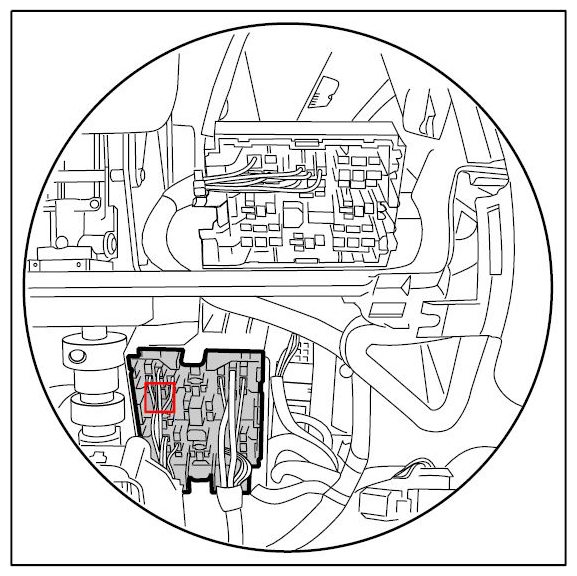

Fig 3: Identifying Relay Carrier

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

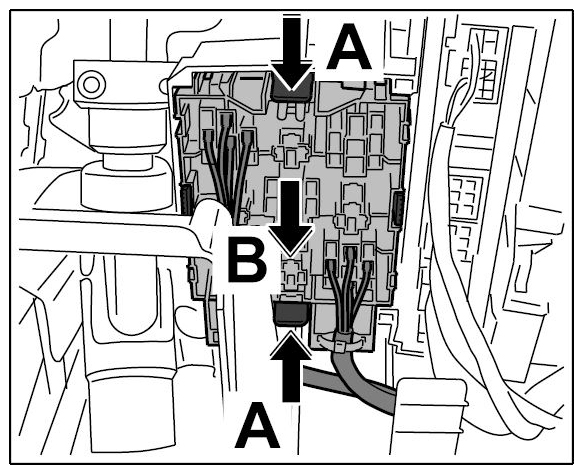

Release the relay carrier -Arrow A- and pull it downward -Arrow B- .

Fig 4: Removing Relay Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

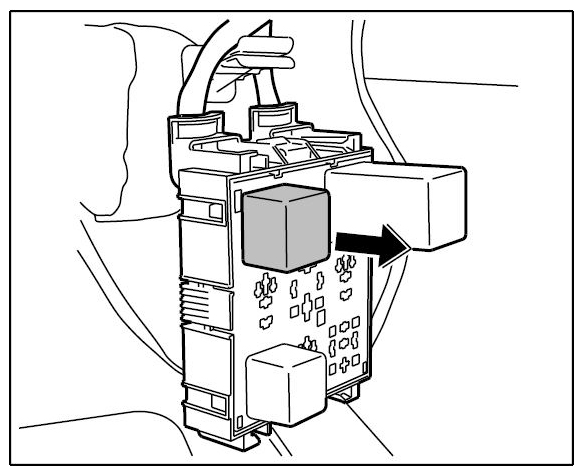

Pull the relay out of the relay carrier -Arrow- .

Fig 5: Pulling Relay Out Of Relay Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
