Installing Relay For Heated Rear Window

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

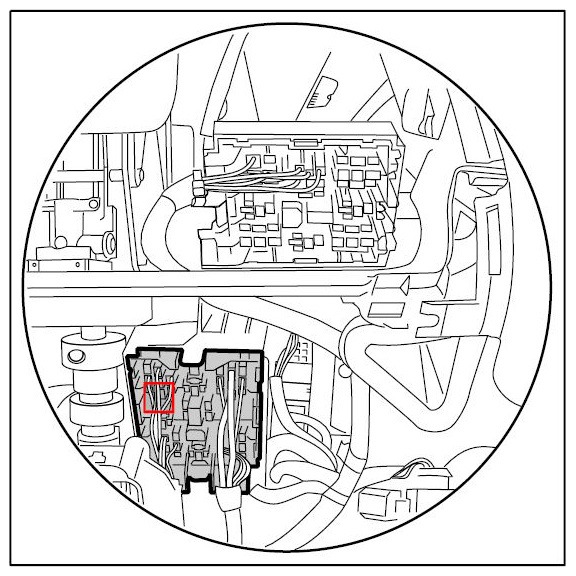

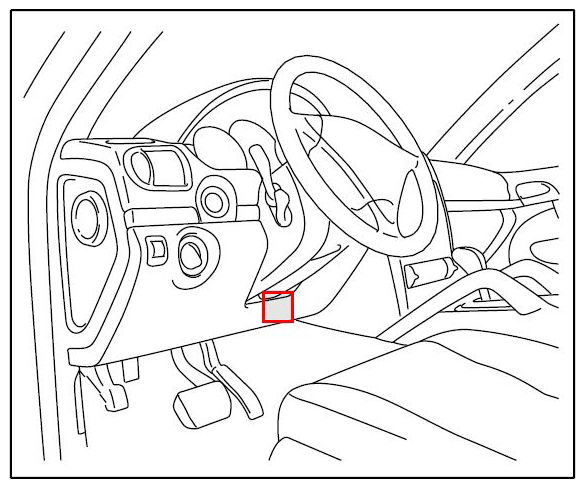

Fig 1: Identifying Relay For Heated Rear Window Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

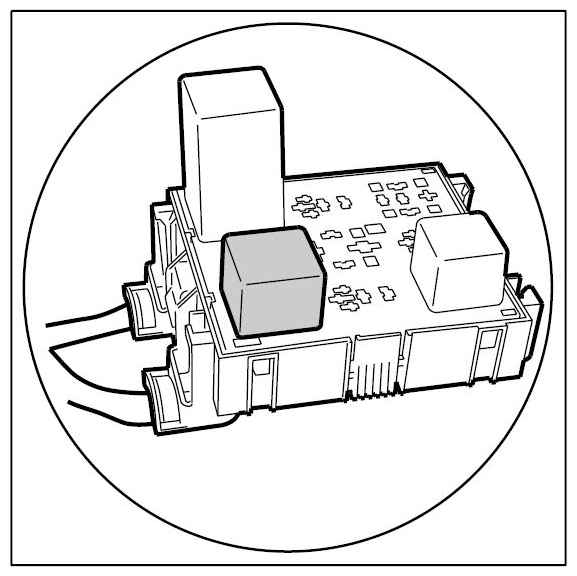

Fig 2: Identifying Relay

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

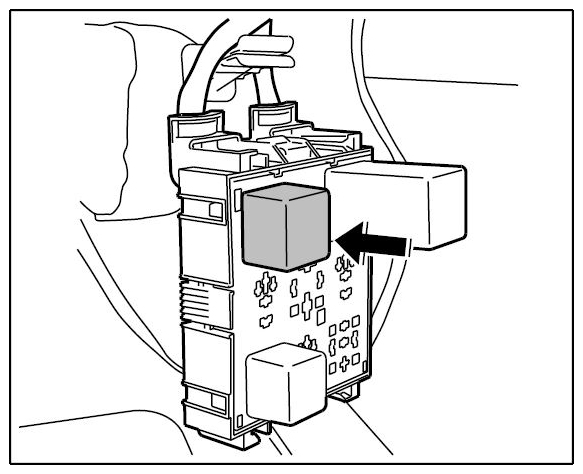

Fig 3: Identifying Relay Onto Relay Carrier

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Place the relay onto the relay carrier -Arrow- .

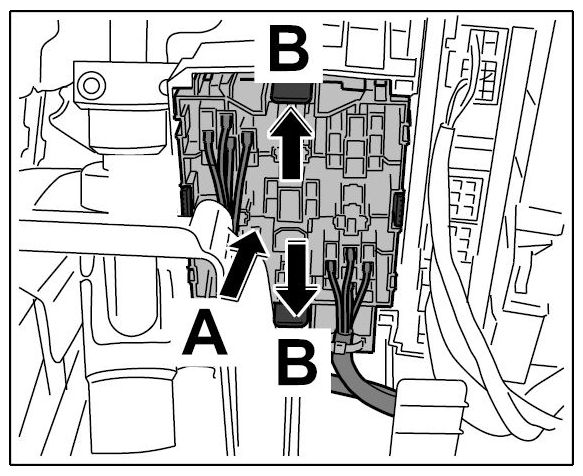

Fig 4: Pressing Relay Carrier Onto Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the relay carrier into the holder -Arrow A- until the locking tabs engage audibly.

Fig 5: Pressing Relay Carrier Into Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
