Installing Rear Window Seal

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

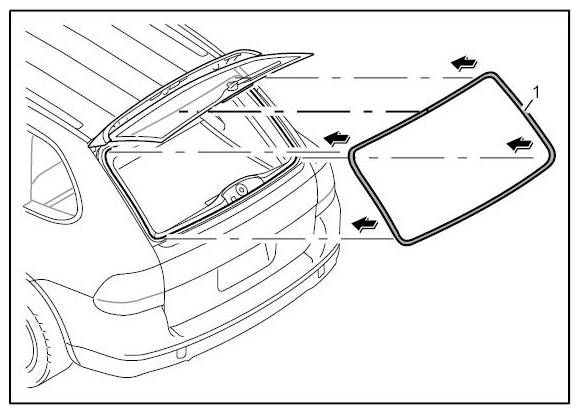

Fig 1: Installing Rear Window Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

A new seal must always be installed.

Installing new seal
1. 1.1. Position new seal for rear window -1- with the connection point -2- in the top centre part of the sheetmetal flange -3- . The bleeder openings in the seal must point towards the inside of the vehicle.

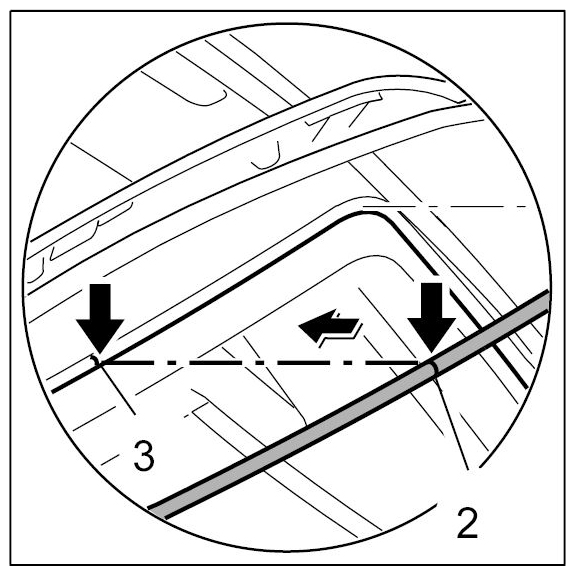

  Fig 2: Positioning Seal For Rear Window
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press new seal -1- onto sheetmetal flange.
Check whether the installation is correct.
1. 3.1. Pay particular attention to the areas near the tight roundings for correct installation; there must be no deformation or stretching.
2. 3.2. Check the air vents; they must not be closed or covered.
