Removing Side Window

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

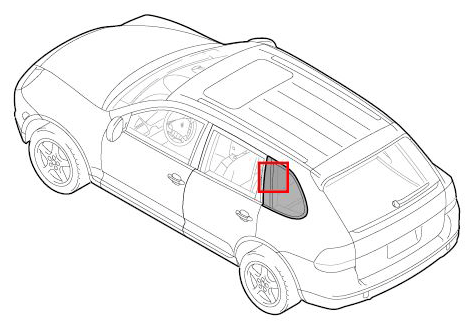

Fig 1: Identifying Side Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Folding down roof lining
Information

Make sure that the roof cover does not buckle.
1. 1.1. Carefully fold down roof lining -1- in the rear, side area (-arrow A- ).

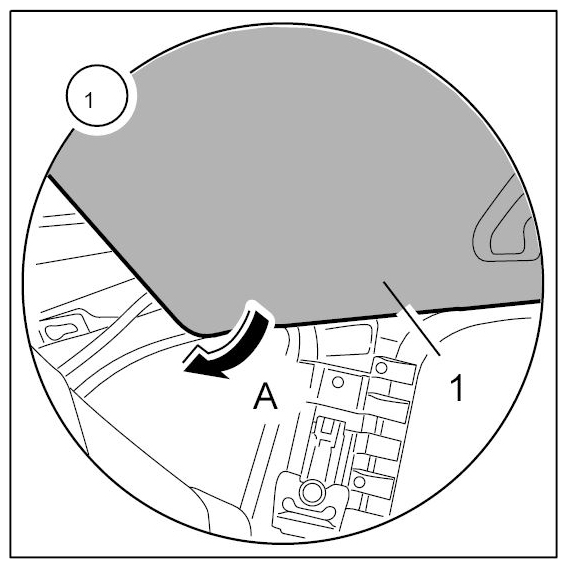

  Fig 2: Folding Down Roof Lining
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Removing side window
1. 2.1. Unscrew and remove fastening nuts -2- on the side-window opening (-arrow B- ).

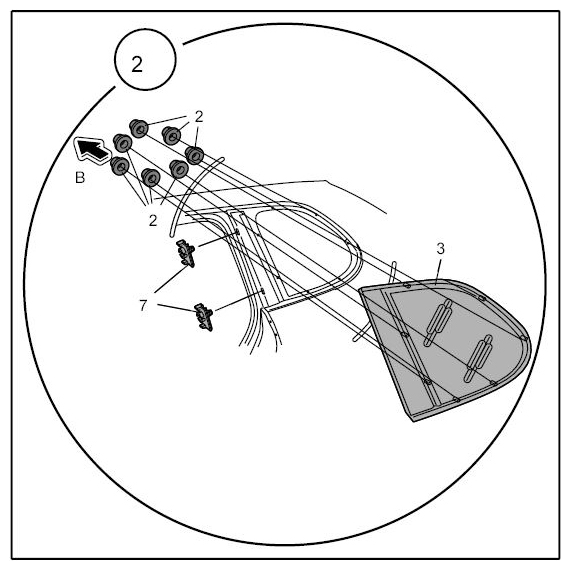

  Fig 3: Removing Side Window
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Push side window -3- outward in the lower area -arrows C- and swivel it forward (-arrow D- ).

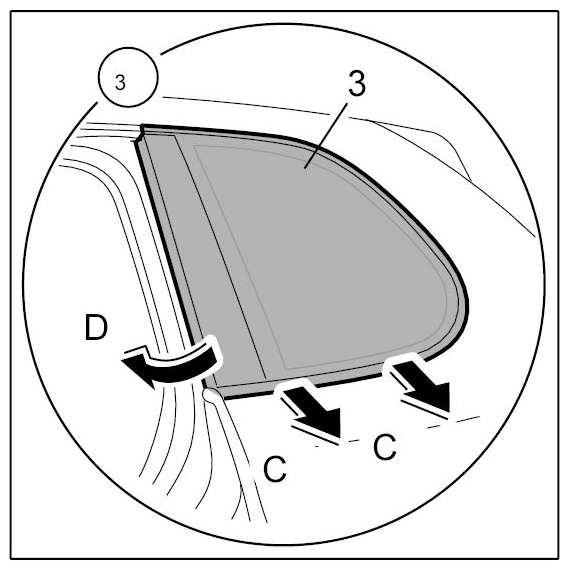

  Fig 4: Pushing Side Window Outward
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Disengage connecting piece -6- of the side window trim strip -4- to the roof trim strip -5- . To do this, first pull the side window down slightly -arrow E- and then swivel it to the rear (-arrow F- ).

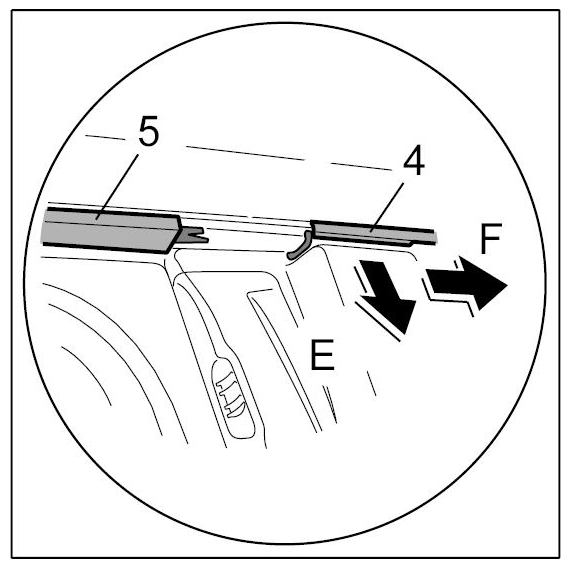

  Fig 5: Disconnecting Connecting Piece Of Side Window Trim Strip To Roof Trim Strip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

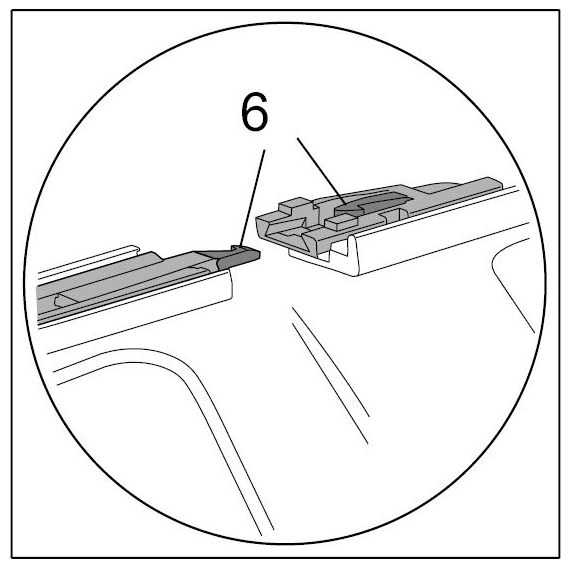

  Fig 6: Identifying Connecting Piece Of Side Window Trim Strip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 2.4. Remove side window -3- to the outside.

  Fig 7: Removing Side Window To Outside
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Checking clips
1. 3.1. Check fastening clips on the C-pillar -7- for damage; if necessary, replace them.

  Fig 8: Checking Fastening Clips On C-Pillar
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check seals - only if the side window is to be re-installed
