Installing Side Window

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

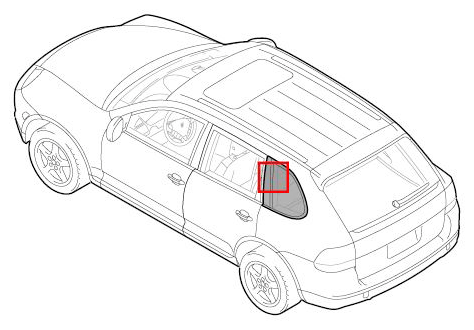

Fig 1: Identifying Side Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Checking seals
1. 1.1. Check rubber seal on the inside of the C-pillar decorative cover to ensure that it is fitted correctly and not damaged; if necessary, replace it.
2. 1.2. Check side window seal for damage.
Installing side window
1. 2.1. Engage connecting piece -6- of the side window trim strip -4- to the roof trim strip -5- . To do this, insert the side window trim strip from the rear into the roof trim strip -arrow A- and press upward slightly (-arrow B- ).

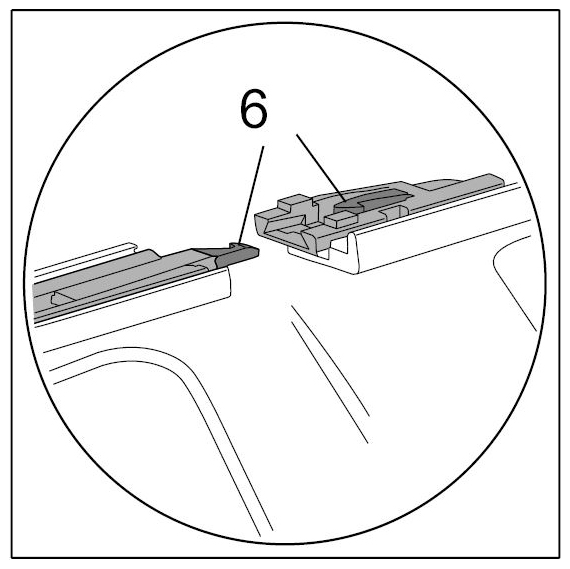

  Fig 2: Identifying Connecting Piece Of Side Window Trim Strip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

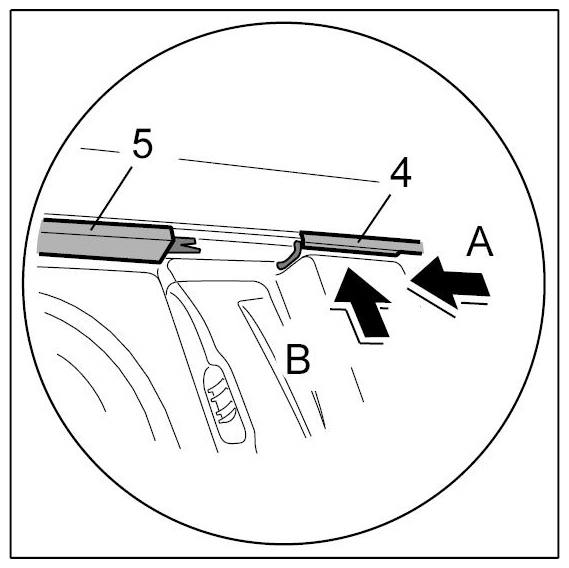

  Fig 3: Inserting Side Window Trim Strip From Rear Into Roof Trim Strip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Swivel side window -3- to the rear in the lower area -arrow C- and push it inward (-arrows D- ).

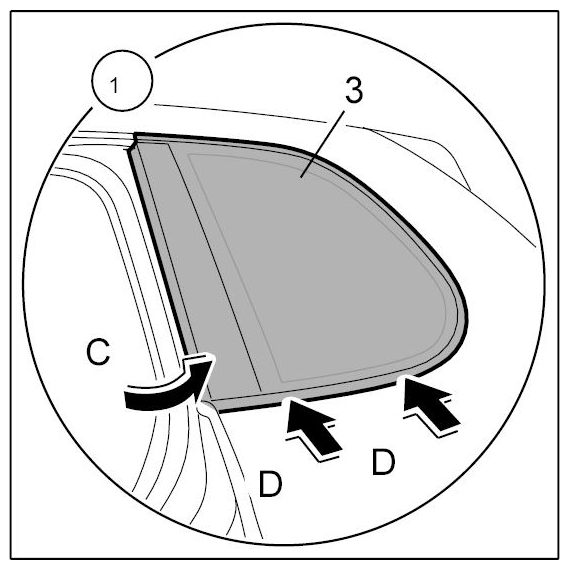

  Fig 4: Swiveling Side Window To Rear
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Insert side window -3- inward into the side window opening (-arrow E- ).

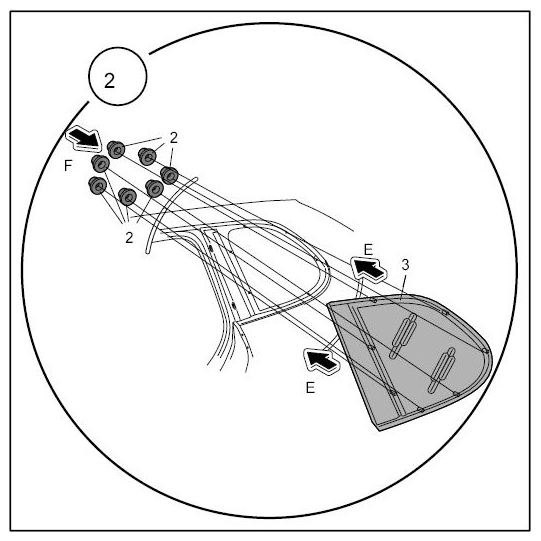

  Fig 5: Inserting Side Window Into Side Window Opening
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 2.4. Screw in fastening nuts -2- (-arrow F- ) and tighten to the specified tightening torque → Tightening torque: 4.5 Nm (3.5).

  Fig 6: Screwing Fastening Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Folding up roof lining
Information

Make sure that the roof cover does not buckle.
1. 3.1. Carefully fold up roof lining -1- in the rear, side area (-arrow G- ).

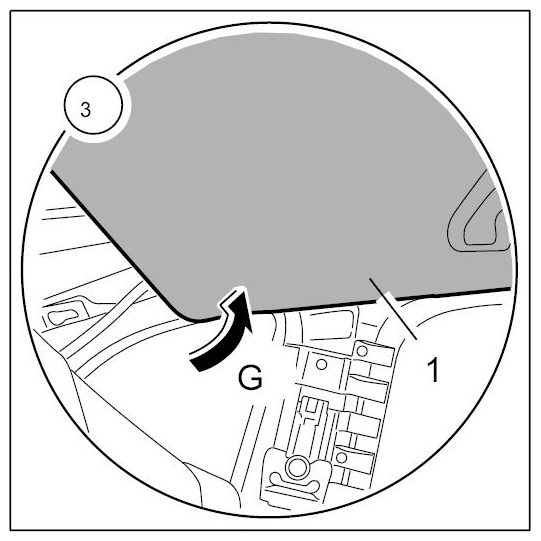

  Fig 7: Folding Up Roof Lining
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
