Installing Rear Power Windows

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

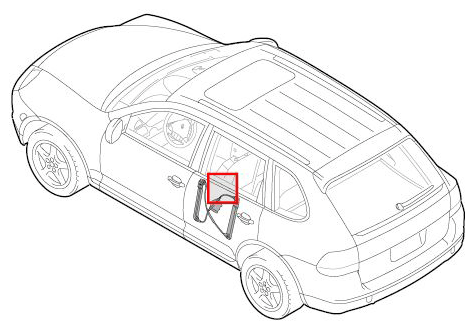

Fig 1: Identifying Rear Power Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

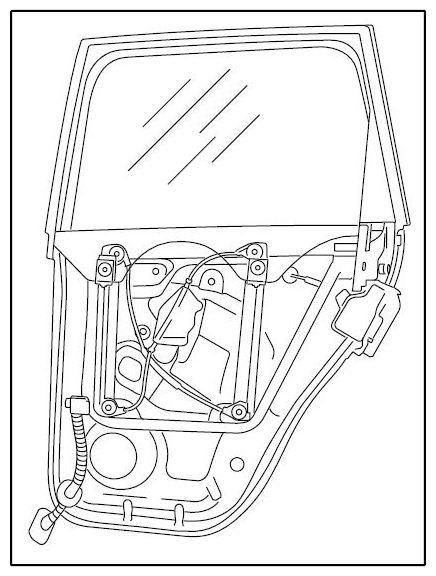

Fig 2: Identifying Power Windows

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing power windows
1. 1.1. Place the power window on the door unit carrier as shown. Make sure the cable is in the correct position (-arrow A- ).

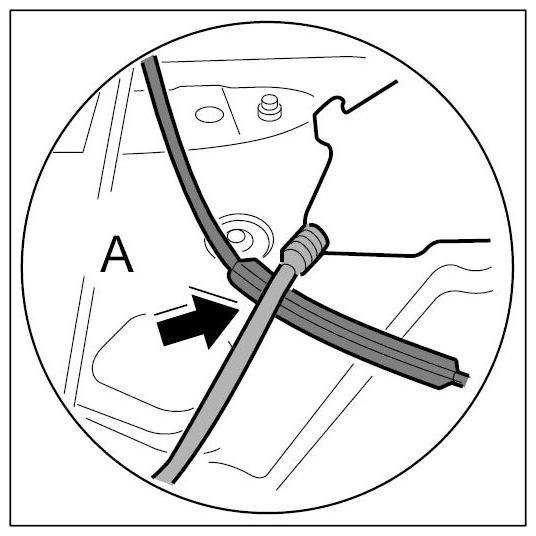

  Fig 3: Placing Power Window On Door Unit Carrier
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Clip in power window gear -3- in the door unit carrier.
3. 1.3. Fix guide rails -2- with 2 rivets each -1- and rivet with the door unit carrier.
4. 1.4. Clip in cable to retaining clip -4- .
5. 1.5. Apply lubricant (grease) to the guide rails -2- and move sliding pads -5- manually.

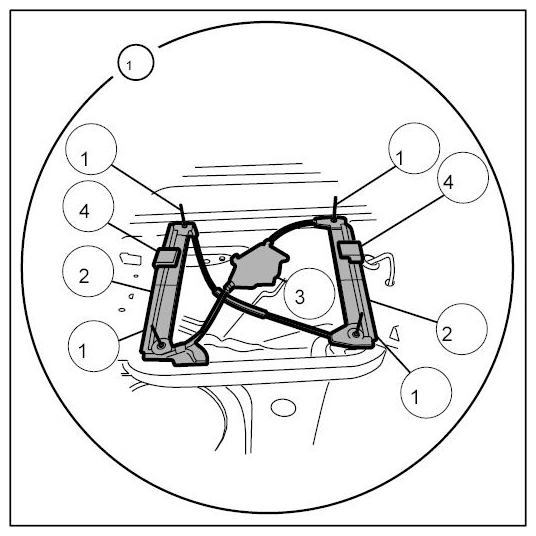

  Fig 4: Identifying Power Window Gear, Guide Rails, Rivets, Retaining Clip, Sliding Pads
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
