Removing Bottom Section For Rear Window Release

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

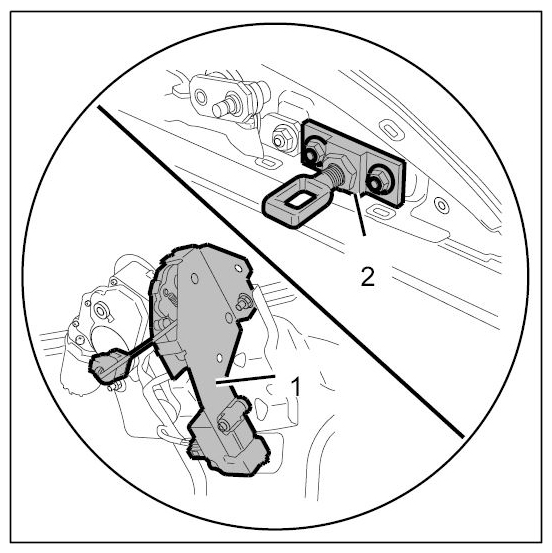

-1- - Rear window release lower part
-2- - Rear window release upper part

Fig 1: Identifying Rear Window Upper And Lower Part
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove lining for rear lid. → Removing lining for rear lid

Release connector -Arrow A- and disconnect plug connection -Arrows B- .

Fig 2: Disconnecting Connector And Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

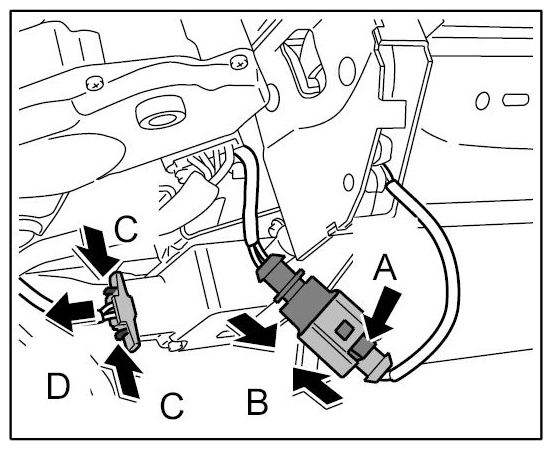

Release connector -arrows C- and pull off -arrow D- .

Fig 3: Removing Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

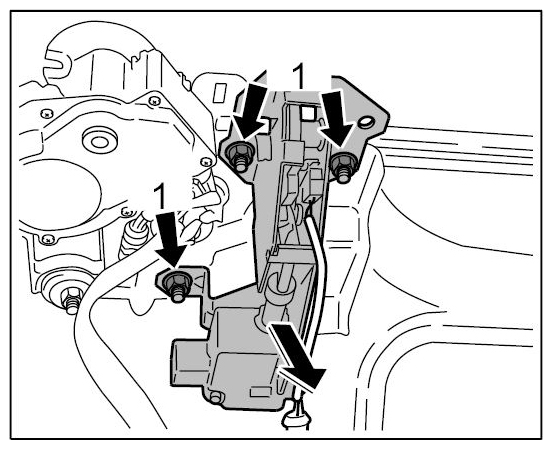

Unscrew fastening nuts -1- and remove lower part -arrow- .

Fig 4: Removing Lower Part
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
