Installing Bottom Section For Rear Window Release

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

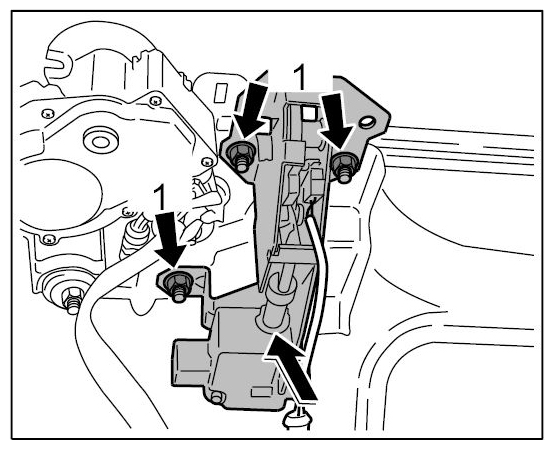

Install lower part -arrow- and tighten with fastening nuts -1- . → Tightening torque: 6 ftlb.

Fig 1: Installing Bottom Section For Rear Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

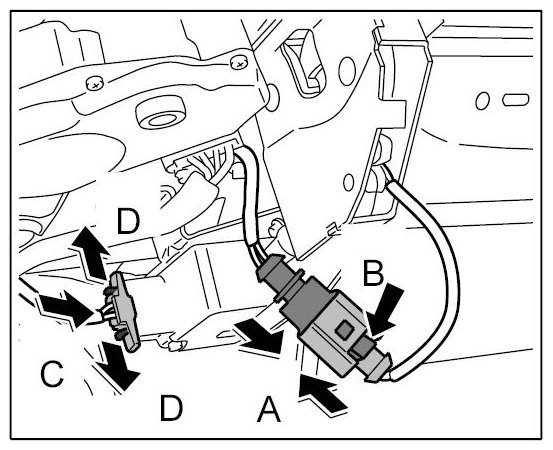

Push together plug connection -Arrows A- until the locking tabs -B- are felt to engage.

Fig 2: Pushing Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push in connector -arrow C- until the locking tabs -arrows D- are felt to engage.

Fig 3: Pushing Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
