Removing Microswitch For Rear Window Release

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

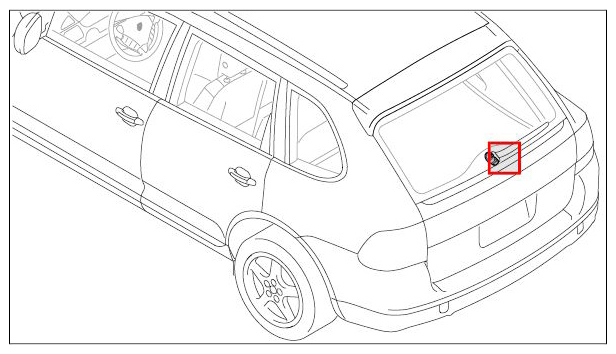

Fig 1: Identifying Rear Window Microswitch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

CAUTION: Danger of injury!

Before removing wiper arm, remove ignition key and switch off steering column switch.

→

Unclip cover cap -1- at side and remove it.

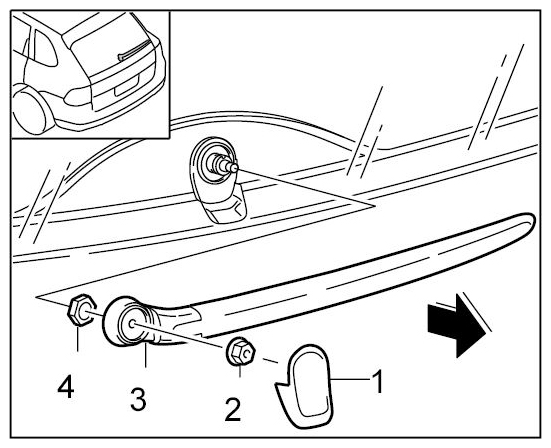

Fig 2: Removing Wiper Arm, Ignition Key And Steering Column Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening nut -2- .
Pivot wiper arm -3- up and down a little and remove.
Unscrew fastening nut -4- .

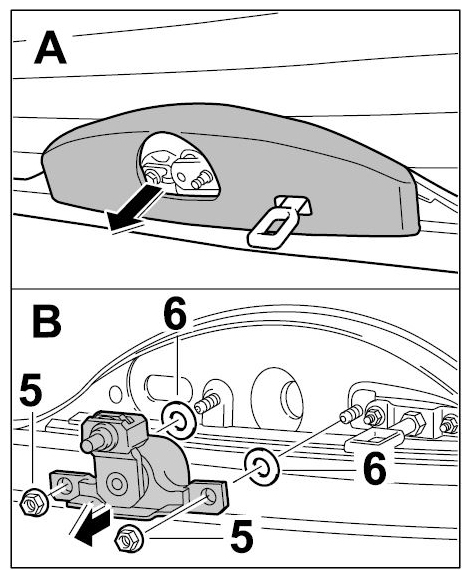

-A- Using a plastic wedge, carefully unclip and remove the cover.

Fig 3: Removing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
-B- Unscrew the two fastening nuts -5- for the wiper shaft. Hold the rear window release and pull out the wiper shaft.
Remove washers -6- .
Unlock electrical plug connection and pull the plug off.

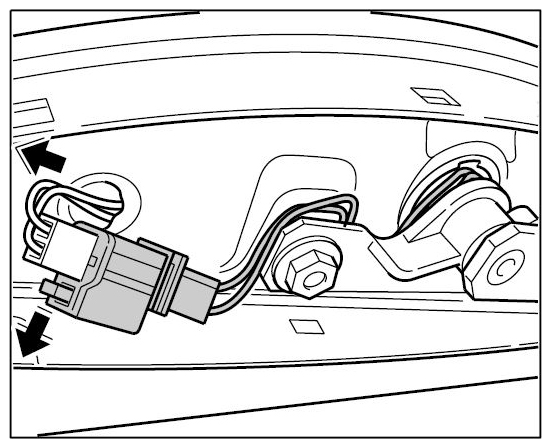

Fig 4: Unlocking Electrical Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push the electric cable with the plug through the opening of the rear window and remove the rear window release.
