Removing Rear Power Window Motor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

When removing the door panel, the connector -6- on the power window motor is disconnected.

Fig 1: Removing Rear Power Window Motor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew the three fastening screws -1- for the cover -2- and remove the cover.

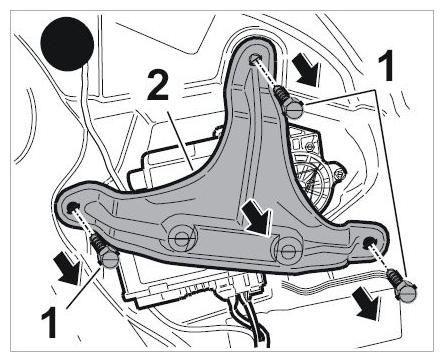

Fig 2: Removing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the three fastening screws -3- on the power window motor -7- .

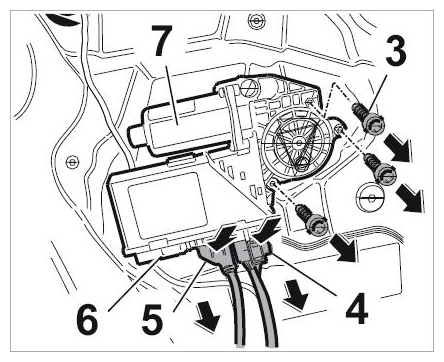

Fig 3: Removing Power Window Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the lock on the connectors -4, 5- and remove the connectors.
Pull the power window motor out of the teeth.

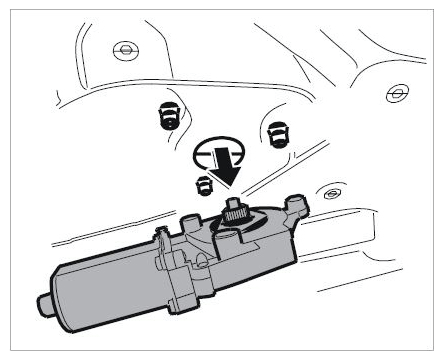

Fig 4: Removing Power Window Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
