Installing Rear Power Window Motor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Position power window motor and push into the teeth.

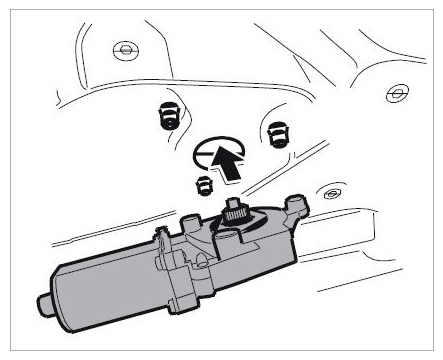

Fig 1: Installing Power Window Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert connectors -4, 5- on power window motor -7- until the connectors engage securely.

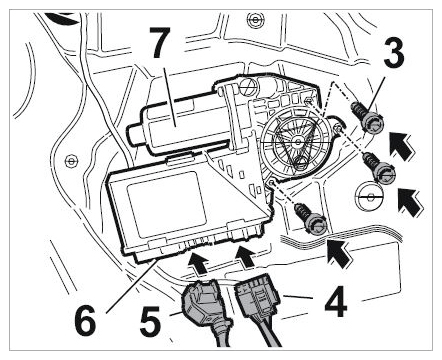

Fig 2: Securing Power Window Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in and tighten fastening screw -3- . → Tightening torque: 3 Nm (2 ftlb.)
Position cover -2- and secure with the fastening screws -1- . → Tightening torque: 3 Nm (2 ftlb.)

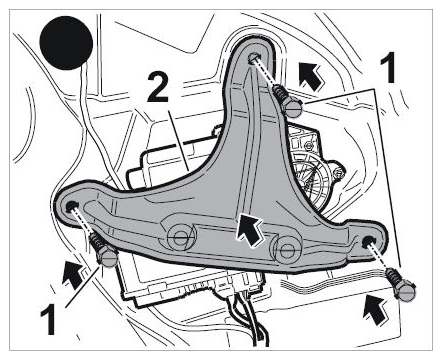

Fig 3: Fitting Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
