Removing Rear Door Window

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

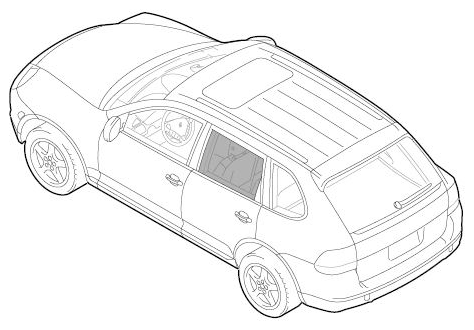

Fig 1: Identifying Rear Door Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove holder.
1. 1.1. Unscrew fastening screws -1- and remove holder -2- .

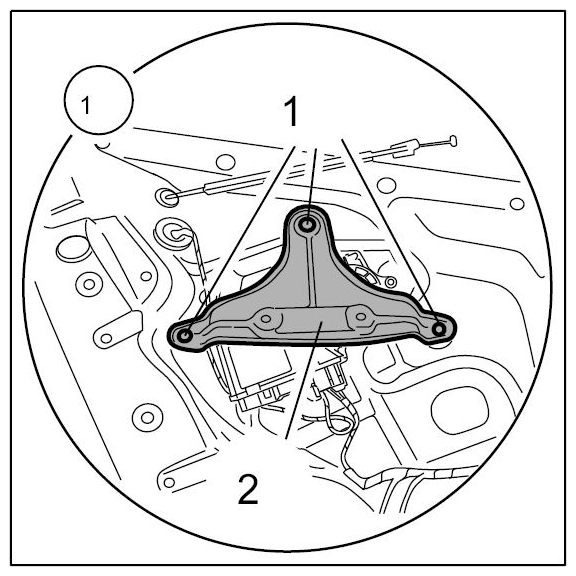

  Fig 2: Identifying Holder And Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove power window motor.
1. 2.1. Release -5- and pull off electrical plugs (-Arrow A- ).
2. 2.2. Unscrew fastening screws -4- and remove power window motor -3- .

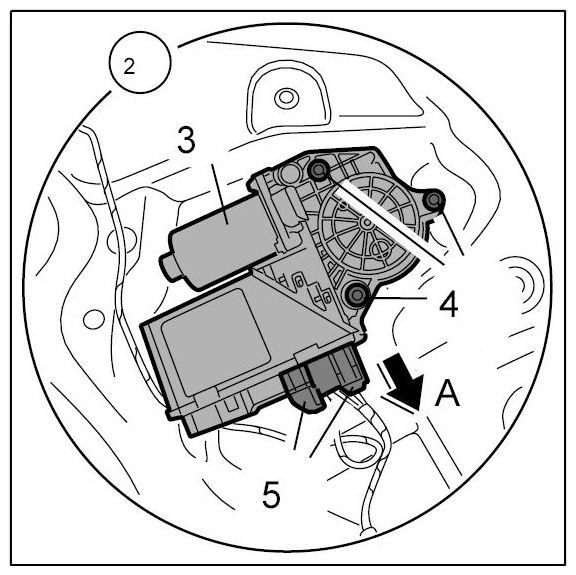

  Fig 3: Removing Power Window Motor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the side window.
1. 3.1. Unscrew fastening screws -6- of the fastening parts -7- .

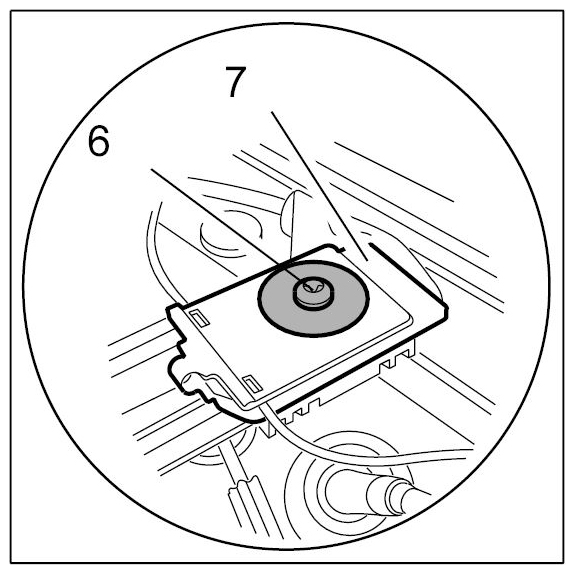

  Fig 4: Identifying Fastening Parts With Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Open -7- fastening parts (-arrows B- ) and -8- remove side window in a downward direction (-arrows C- ).

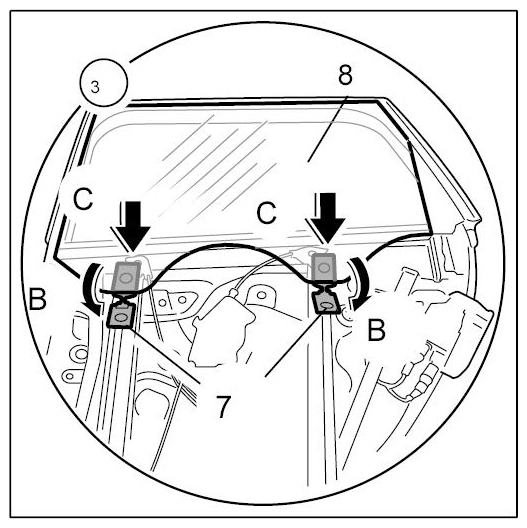

  Fig 5: Removing Side Window
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. Remove fastening parts -7- from sliding pads -9- .

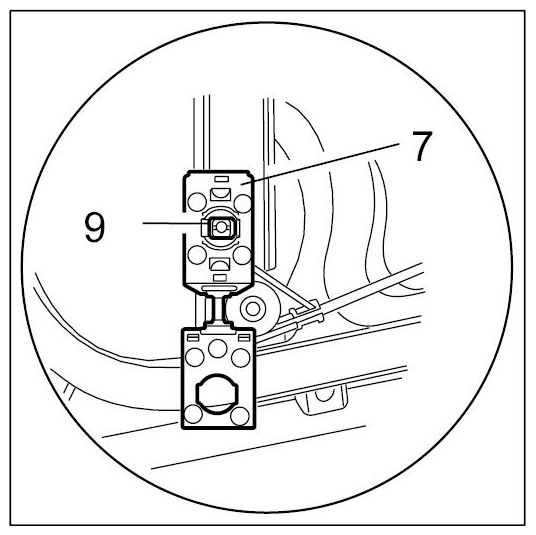

  Fig 6: Identifying Fastening Parts And Sliding Pads
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
