Removing Front Power Window Motor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

When removing the door trim, plug 6 -5- on the window regulator motor is disconnected.

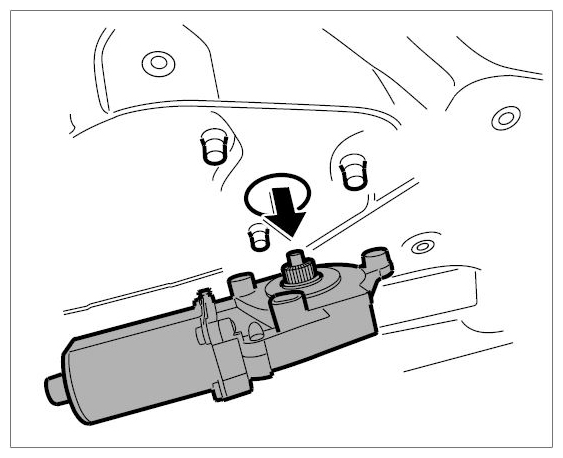

Fig 1: Removing Front Power Window Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew the three fastening screws -1- .

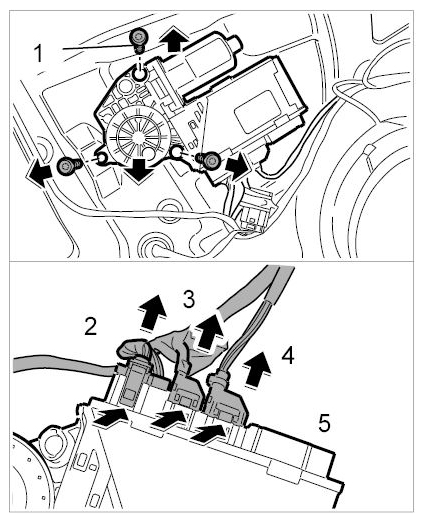

Fig 2: Disconnecting Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press on the lock of the plugs -Arrows 2, 3 and 4- and remove the plugs.
Pull the window regulator motor out of the teeth.

Fig 3: Pulling Window Regulator Motor Out Of Teeth
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
