Installing Front Power Window Motor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Position window regulator motor and push into the teeth.

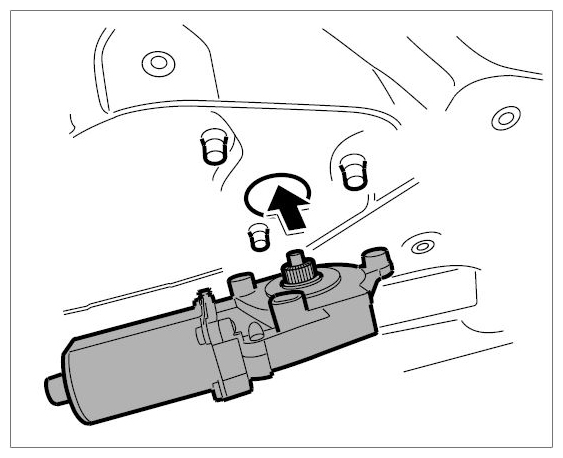

Fig 1: Installing Front Power Window Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert plugs -Arrows 2, 3 and 4- on control unit for window regulator motor, until plugs perceptibly engage.

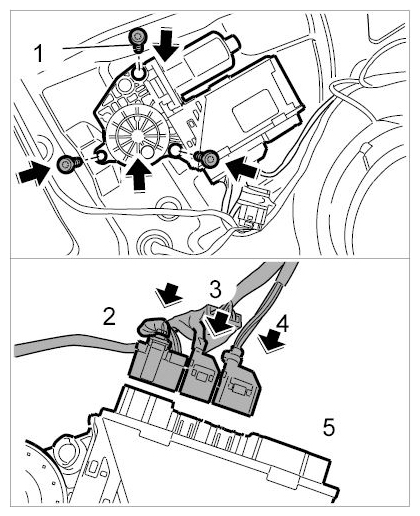

Fig 2: Inserting Plug And Tightening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the three fastening screws -1- and tighten them. → Tightening torque: 2.0 ftlb.
