Removing Front Power Windows

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

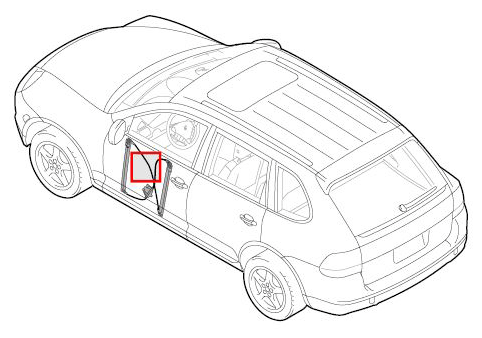

Fig 1: Identifying Front Power Windows

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

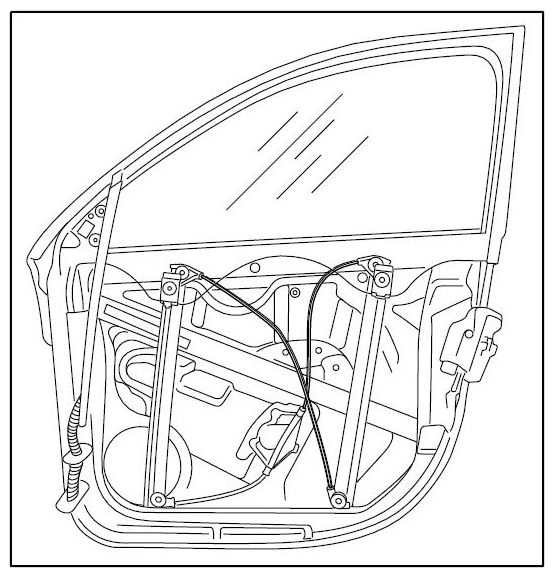

Fig 2: Removing Front Power Windows

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing power windows
1. 1.1. Unclip cable at retaining clip -4- .

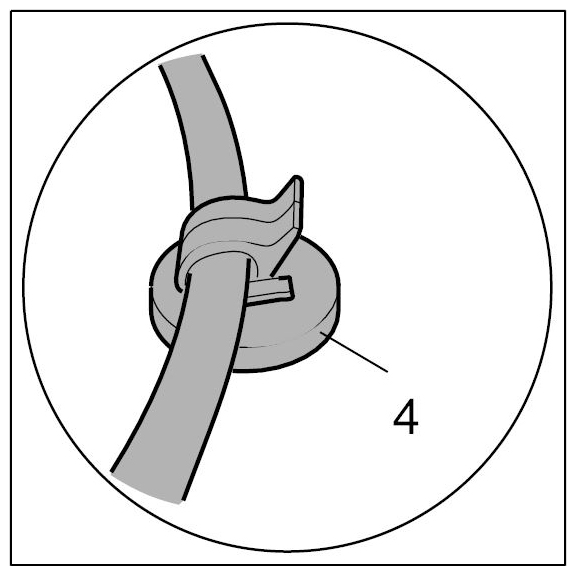

  Fig 3: Identifying Retaining Clip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Drill out pop rivets -1- on guide rails -2- .
3. 1.3. Unclip power window gear -3- from the door unit carrier and remove the power window.

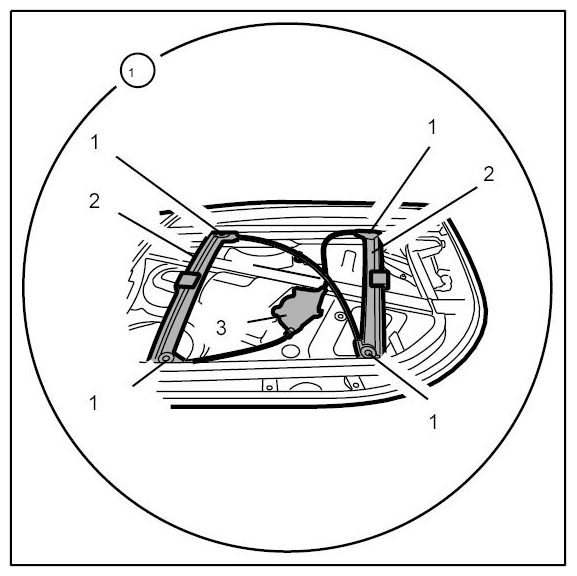

  Fig 4: Identifying Pop Rivets, Guide Rails, Power Window Gear
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
