Removing The Front Window Bay Seal

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

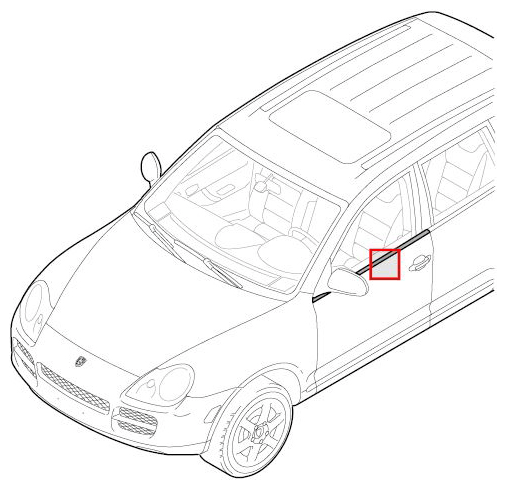

Fig 1: Identifying Front Window Bay Seal
G09411821Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove trim panel for mirror triangle.
    1. 1.1. Carefully lever out trim panel for mirror triangle -1-  using plastic wedge (-arrows A-  ) and pull forwards (-arrow B-  ).

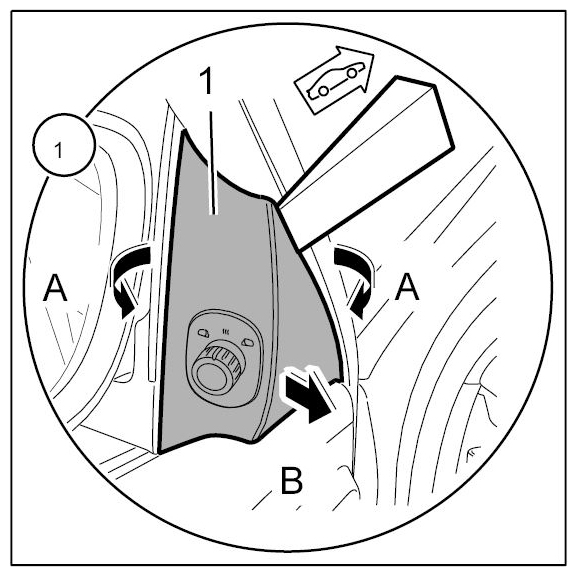

      Fig 2: Removing Trim Panel For Mirror Triangle
      G09411822Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip mirror adjustment switch.
    1. 2.1. Unclip switch -2-  out of trim panel for mirror triangle from behind (-arrow C-  ).

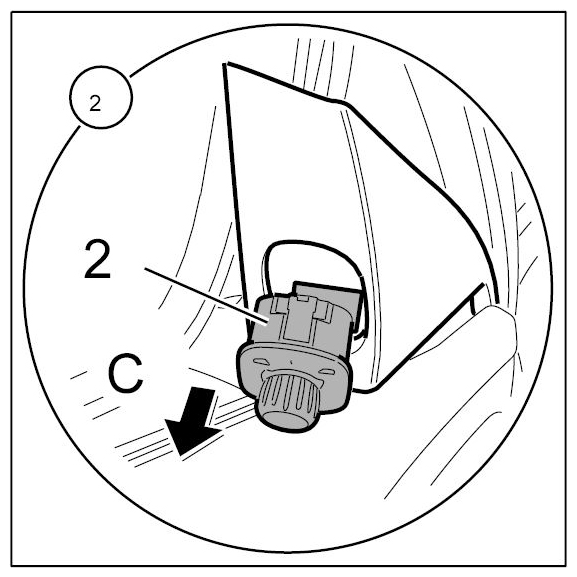

      Fig 3: Removing Mirror Adjustment Switch
      G09411823Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 2.2. Unlock -3-  and (-arrow D-  ) pull off the plug (-arrow E-  ).

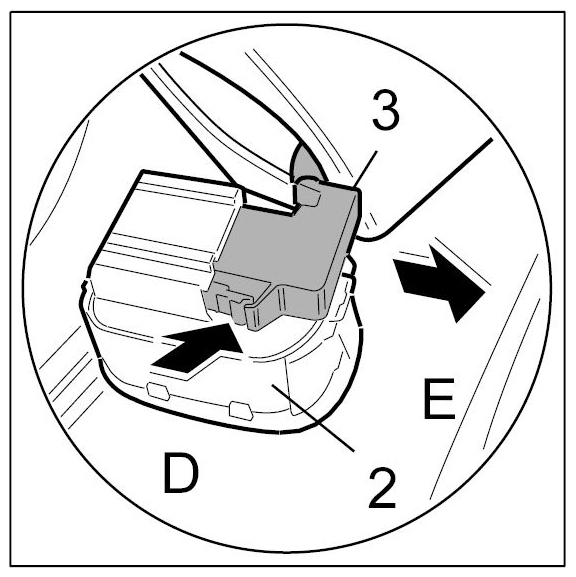

      Fig 4: Pulling Off Plug
      G09411824Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 2.3. Remove trim panel for mirror triangle.
  3. Unscrew mirror.
    1. 3.1. Unscrew fastening screws -4-  .

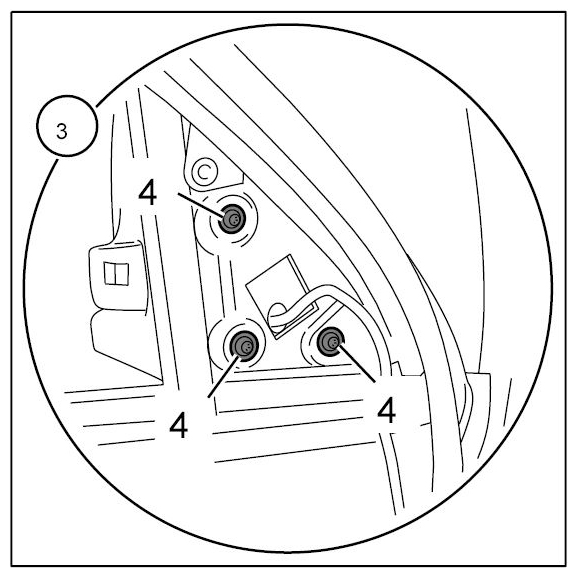

      Fig 5: Identifying Mirror Triangle Fastening Screws
      G09411825Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 3.2. Lift mirror -5-  (-arrow F-  ) and unclip the retaining pivot -6-  .

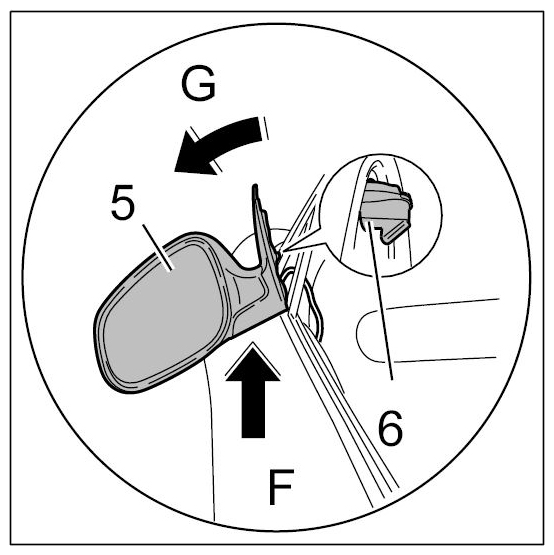

      Fig 6: Lifting Mirror
      G09411826Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 3.3. Carefully fold the mirror -5-  with the connected cables downwards (-arrow G-  ).

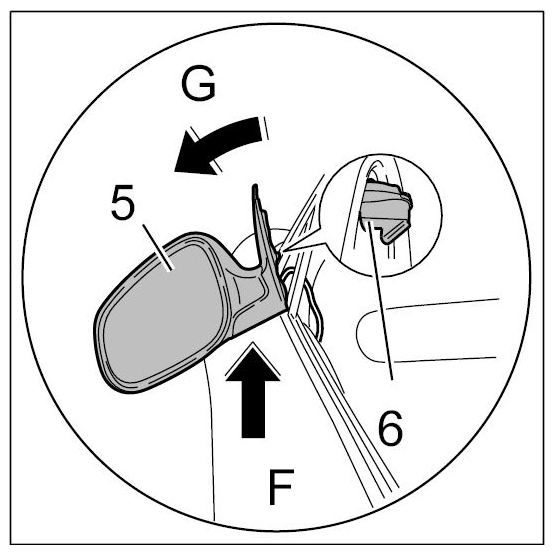

      Fig 7: Folding Mirror
      G09411827Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Open the front door window.
    1. 4.1. Open the front door window -7-  fully (-arrow H-  ).

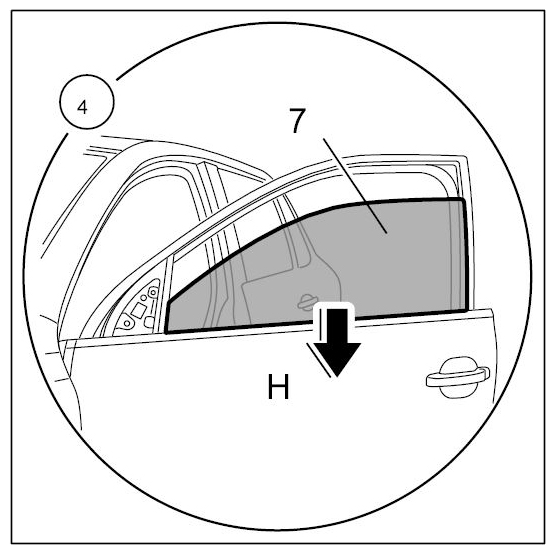

      Fig 8: Opening Front Door Window
      G09411828Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove the front window channel seal
    1. 5.1. Pull front window channel seal -8-  at rear end (-arrow I-  ) - beginning from the sheetmetal flange -9-  - in an upward direction (-arrow K-  ).

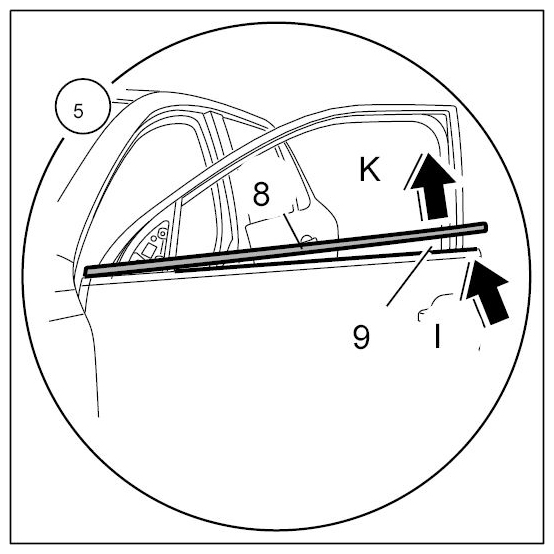

      Fig 9: Removing Front Window Channel Seal
      G09411829Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Remove the front window channel seal.
    1. 6.1. Remove the front window shaft seal -8-  (-arrow L-  ).

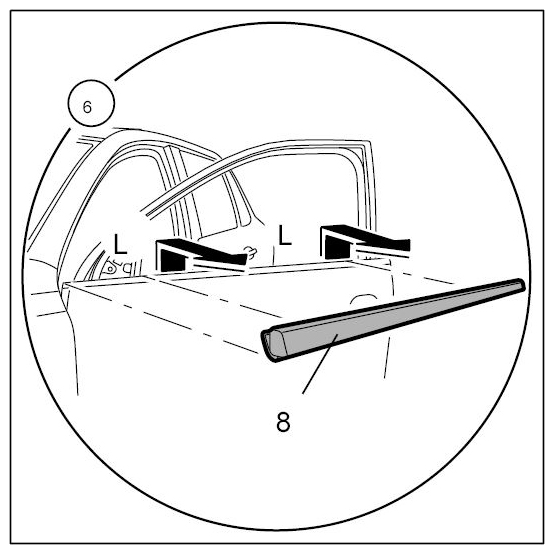

      Fig 10: Removing Front Window Shaft Seal
      G09411830Courtesy of PORSCHE CARS NORTH AMERICA, INC.
