Removing Front Door Window

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

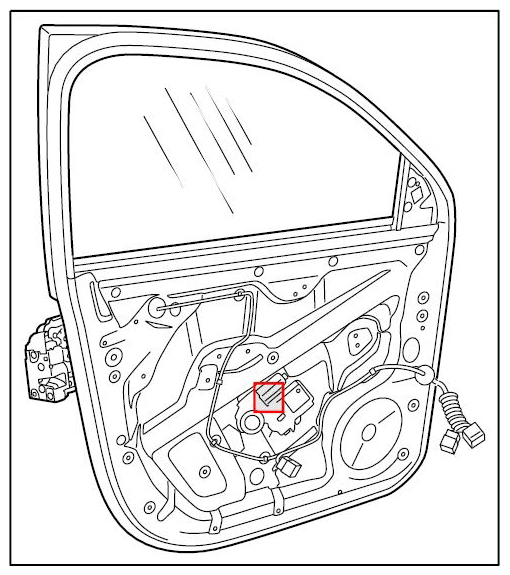

Fig 1: Identifying Front Door Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove power window motor:

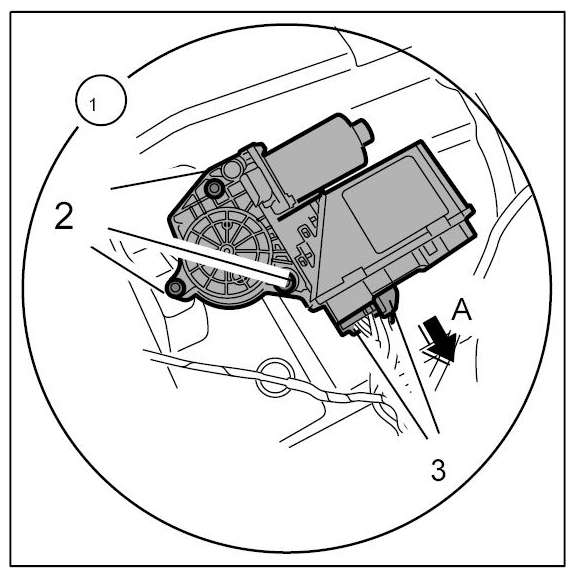

Fig 2: Identifying Power Window Motor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release electric connector -3- and pull it off (-arrow A- ).

Fig 3: Pulling Electric Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -2- and remove power window motor.

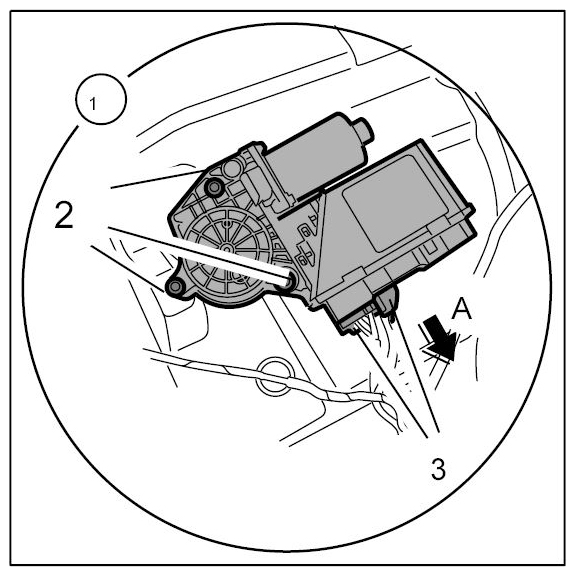

Fig 4: Removing Power Window Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove side window:
Unscrew fastening screws -5- of the fastening parts -4- .

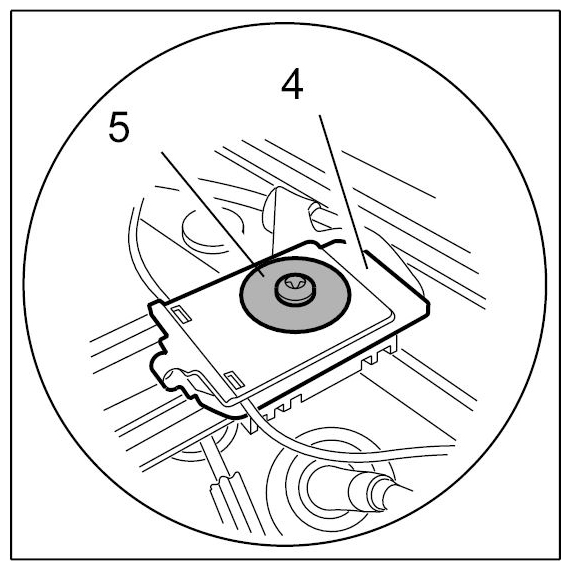

Fig 5: Identifying Fastening Parts And Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open fastening parts (-arrows B- ) and remove side window -6- in a downward direction (-arrows C- ).

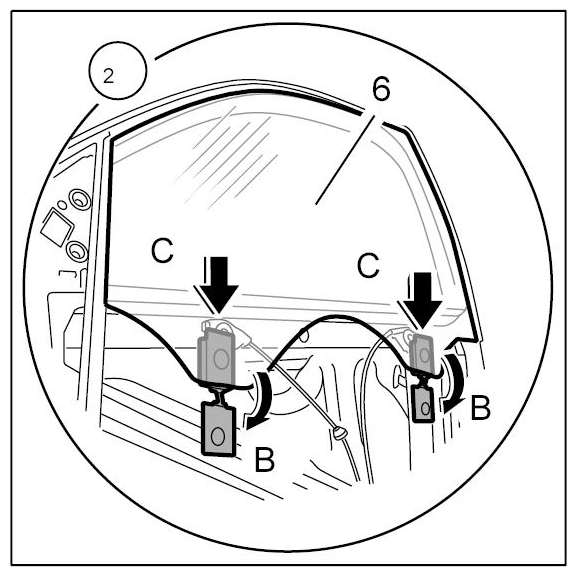

Fig 6: Removing Side Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove fastening parts -4- from sliding pads -7- .

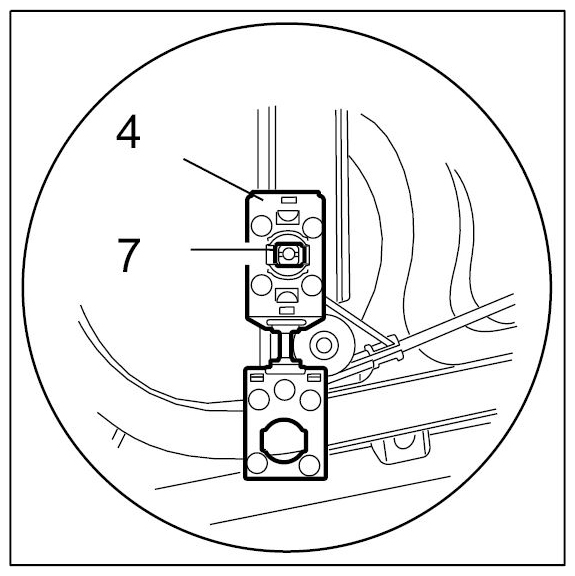

Fig 7: Identifying Fastening Parts And Sliding Pads
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
