Installing Front Door Window

Information

• After model year 2006, once existing stocks of uncoated door windows have run out, only door windows with hydrophobic coating will be available as spare parts.
• These windows can even be installed on vehicles produced up to model year 2006.
• In each individual case, however, it would then be important to check whether the door window remaining in the vehicle should be coated. →  644049 REWORKING (COATING) FRONT DOOR WINDOW

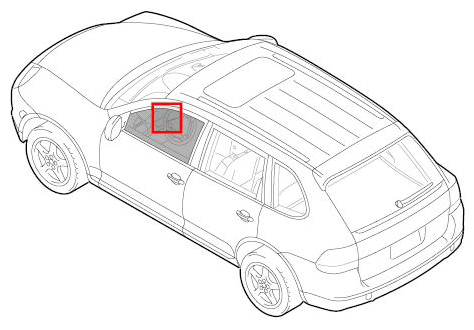

Fig 1: Identifying Front Door Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install door window:

1. Possible variants:
   1. 1.1. Side window made of single-sheet safety glass: fastening parts must be fitted separately to the sliding pads
   2. 1.2. Side window made of laminated safety glass: fastening parts are already fitted to the side window
2. Place fastening parts -4-  on sliding pads -7-  .

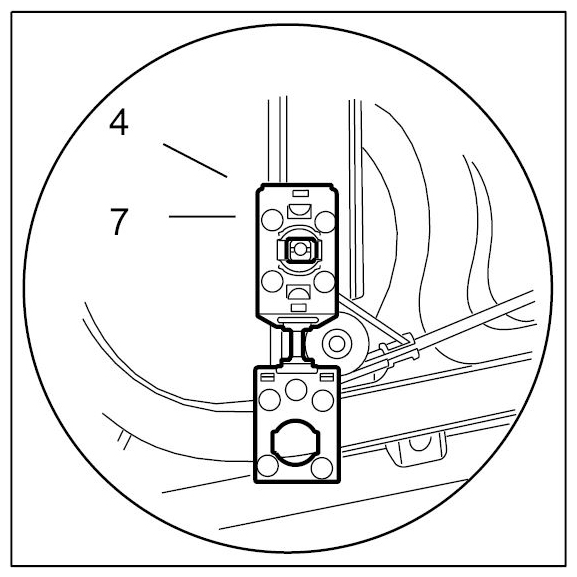

   Fig 2: Identifying Fastening Parts On Sliding Pads

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Guide in side window -6-  and insert into fastening parts -4-  .
   Fig 3: Guiding Side Window

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Manually close the side window -6-  (-arrows A-  ) and apply greater force to press it into and parallel with the guide in the direction of the B-pillar (-arrows B-  ).

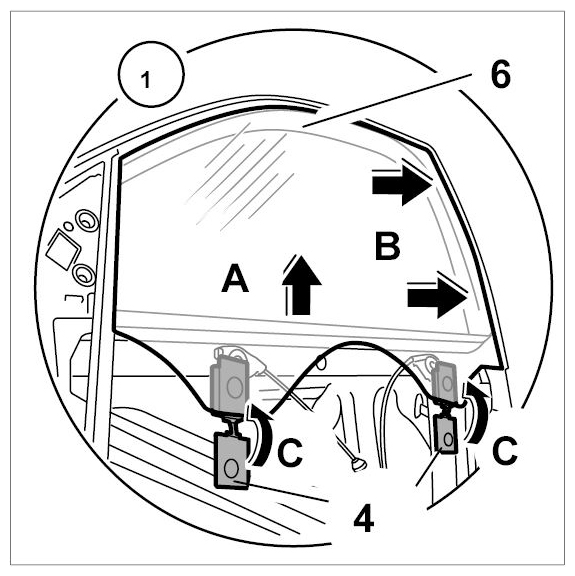

   Fig 4: Closing Side Window Manually

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Close fastening elements -4-  (-arrows C-  ) and screw in and tighten fastening screws -5-  → Tightening torque: 3.5 Nm (2.5 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.).
   Fig 5: Closing Fastening Elements

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

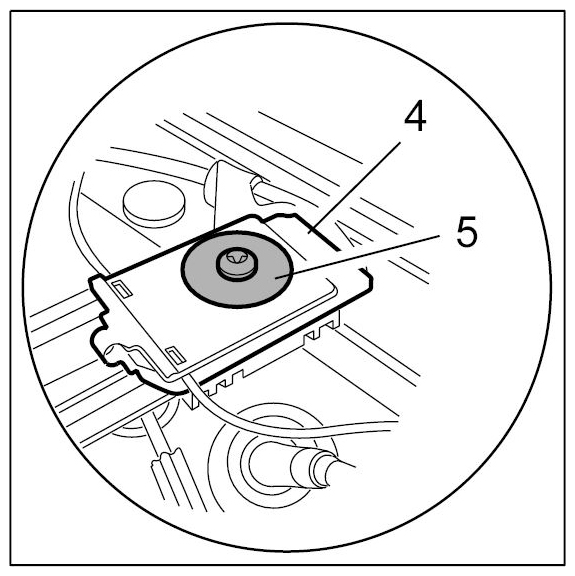

   Fig 6: Identifying Fastening Elements With Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Install power window motor:

6. Insert power window motor -1-  and screw in and tighten fastening screws -2-  → Tightening torque: 3.0 Nm (2.0 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)  to the specified tightening torque.

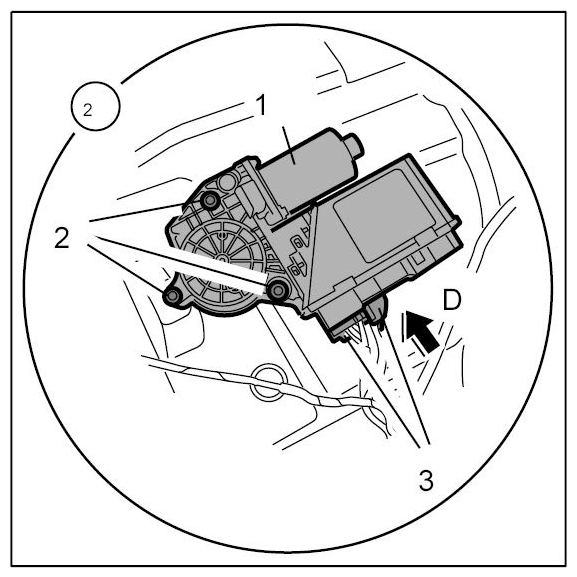

   Fig 7: Installing Power Window Motor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Insert electric connectors -3-  until they engage securely (-arrow D-  ).
   Fig 8: Inserting Electric Connectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
