Tools And Materials

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

The following tools and materials are required for removing and installing the windscreen with 2-component adhesive:

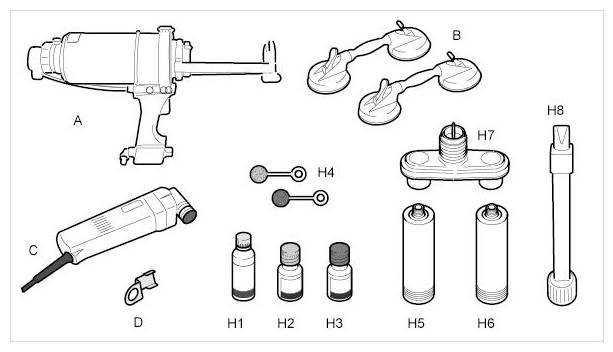

Fig 1: Identifying Tools And Materials
G09411753Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Double cartridge gun VAS 5237
  2. Suction cups VAG 1344
  3. Special electric cutter (fine) VAG 1561 A
  4. Flashing knife, U-type 639.031.130.22;
  1. H - 2-component window adhesive 000.043.300.94, contains set components H1-H8
  2. H1 - Cleaning solution
  3. H2 - Primer
  4. H3 - Activator
  5. H4 - Swab
  6. H5 - Cartridge, component A
  7. H6 - Cartridge, component B
  8. H7 - Mixing nozzle
  9. H8 - Processing nozzle

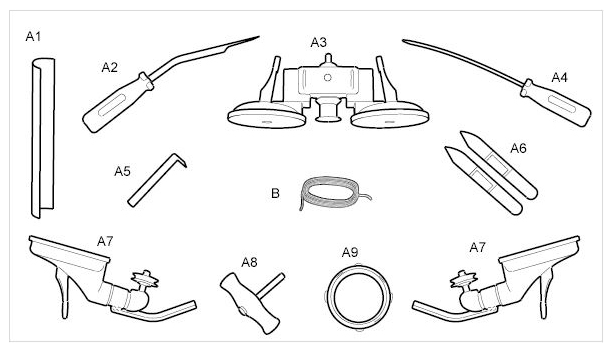

    Fig 2: Identifying Tools
    G09411754Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Glass separating tool VAG 1474 B, contains set components A1-A9
  2. Cutting thread
  1. A1 - Guide rails
  2. A2 - Cutting tool (wire holder)
  3. A3 - Spooling device
  4. A4 - Awl
  5. A5 - Guide rails
  6. A6 - Filler
  7. A7 - Steering roller with arm bracket
  8. A8 - Handle
  9. A9 - Square cutting wire
