Removing Control Unit For Rear Convenience Systems

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

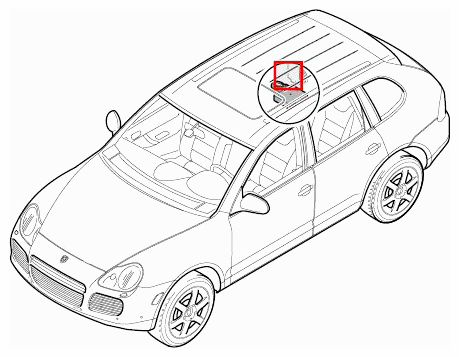

Fig 1: Overview Of Control Unit For Rear Convenience System

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

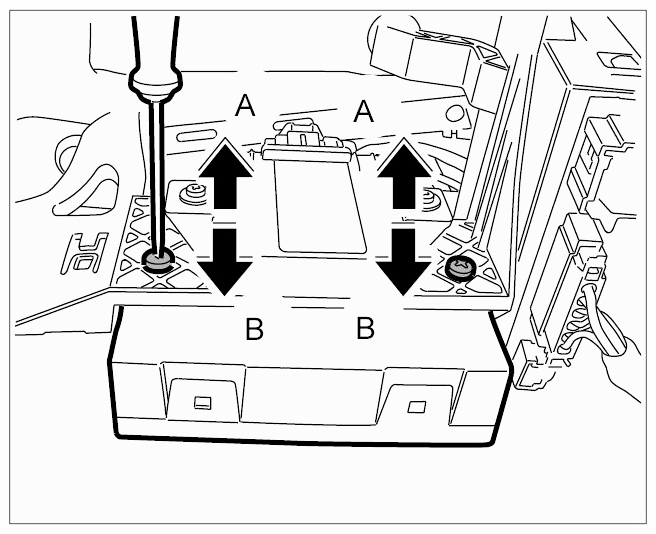

Undo the two fastening screws -arrows A- and pull out control unit to the side.

Fig 2: Unscrewing Control Unit Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

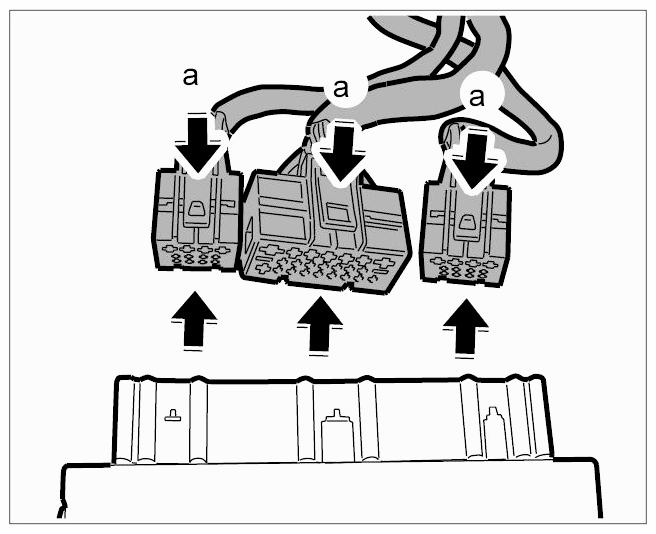

Press locking tabs of electrical plug connections -arrows a- and pull off connectors from control unit.

Fig 3: Pulling Off Electrical Plug Connections

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
