Removing Central Locking Switch

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Only the central locking switches on the rear switch panels can be removed and installed.

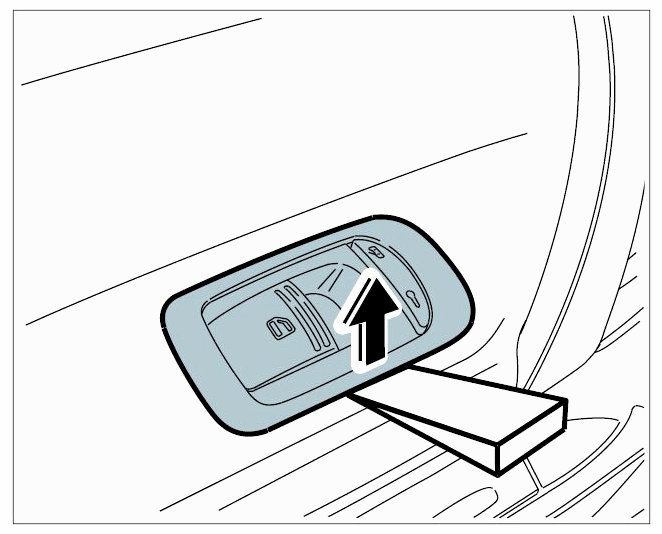

Lever out the entire power window switch using a plastic spatula.

Fig 1: Removing Central Locking Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

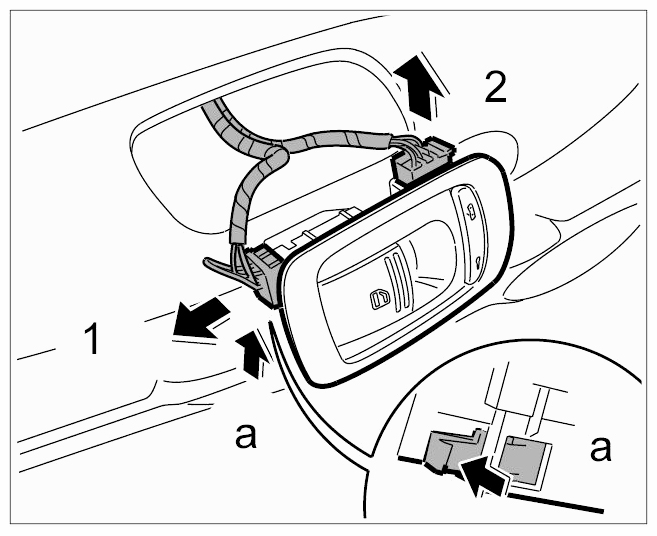

Push in electric plug -1 and 2- and remove both plugs from power window switch -a- .

Fig 2: Pulling Off Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

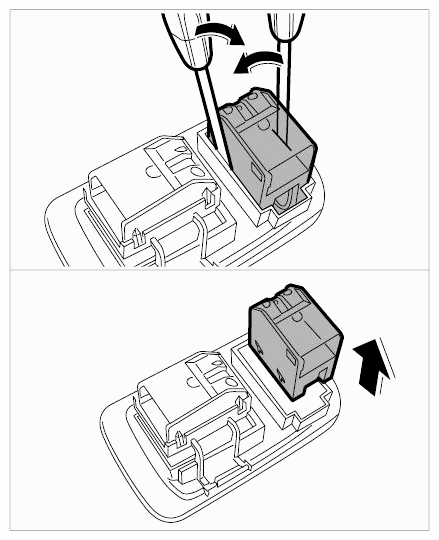

Use two screwdrivers to press the switch panel housing apart and pull out the switch.

Fig 3: Removing Central Locking Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
